FMC-GPIO68SE, Conduction cooled HPC GPIO FMC with 68 Single Ended IOs with 3.3 and 5V tolerance.

FMC-GPIO-68SE is a conduction cooled HPC FM. It provides 68 Single Ended GPIOs through connector at the front bezel. The IOs are taken through level translator ICs which are auto sensing and can covert from 1.8V to 3.V, or 5V, and vice versa. There is a build option to make some or all of the IOs be pass through and not be affected by the level translators. The front bezel has a Samtec ERF8-040-01-L-D-RA-L-TR connector.

6 Samtec RSP-122811-01 connectors are used as 3 differential pairs for directly transferring signals to the HB bank. These are useful for providing external clock and/or synchronization signals.

Features

  • 68 Single Ended IOs or 34 differential pairs without level translation
  • Auto sense, level translation of all or some of the IOs from 1.8V to 3.3 or 5V
  • Pass through option
  • 3 differential pairs through 6x Samtec connectors RSP-122811-01
  • Vadj from carrier card
  • HPC FMC
  • Conduction cooled

Applications

  • Signal conditioning and processing
  • Defense
  • Medical
  • Industrial control

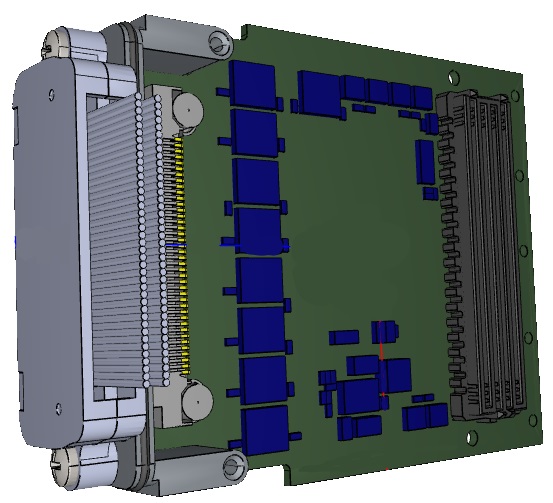

3D Model of FMC-GPIO68SE

solder side component side 3D view



Block Diagram

FMC-GPIO68SE is supported by Sundance DSP PXIe700, PXIe800, SE120 and PCIe104Z boards. The mpdule can also be used with third party FPGA cards.

Ordering Part Numbers:
FMC-GPIO-68SE
xx-cc
By default, xx is 68 and all signals go through level translators. If xx is 00 then all 68 IOs are pass through, diff pairs.
As default cc is blank indicating no conformal coating.
