FM192

FMC I/O Module with ADCS/DAC/CANS I/Os + WiFi/BLE/GPS/GNSS/4G/AUDIO MODULES + IMU/TEMPERATURE&HUMIDITY SENSOR AUDIO SENSORS + USB3.0 + GPIO

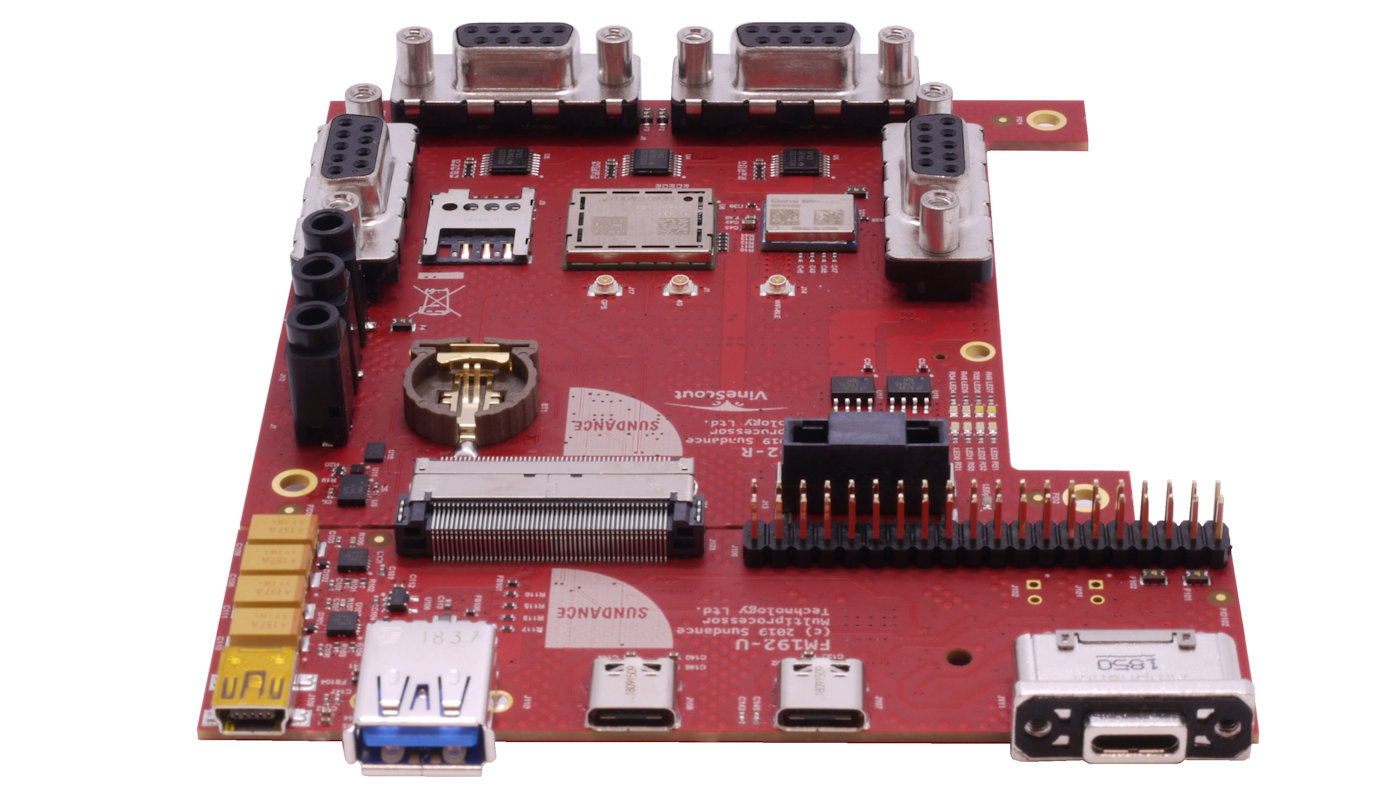

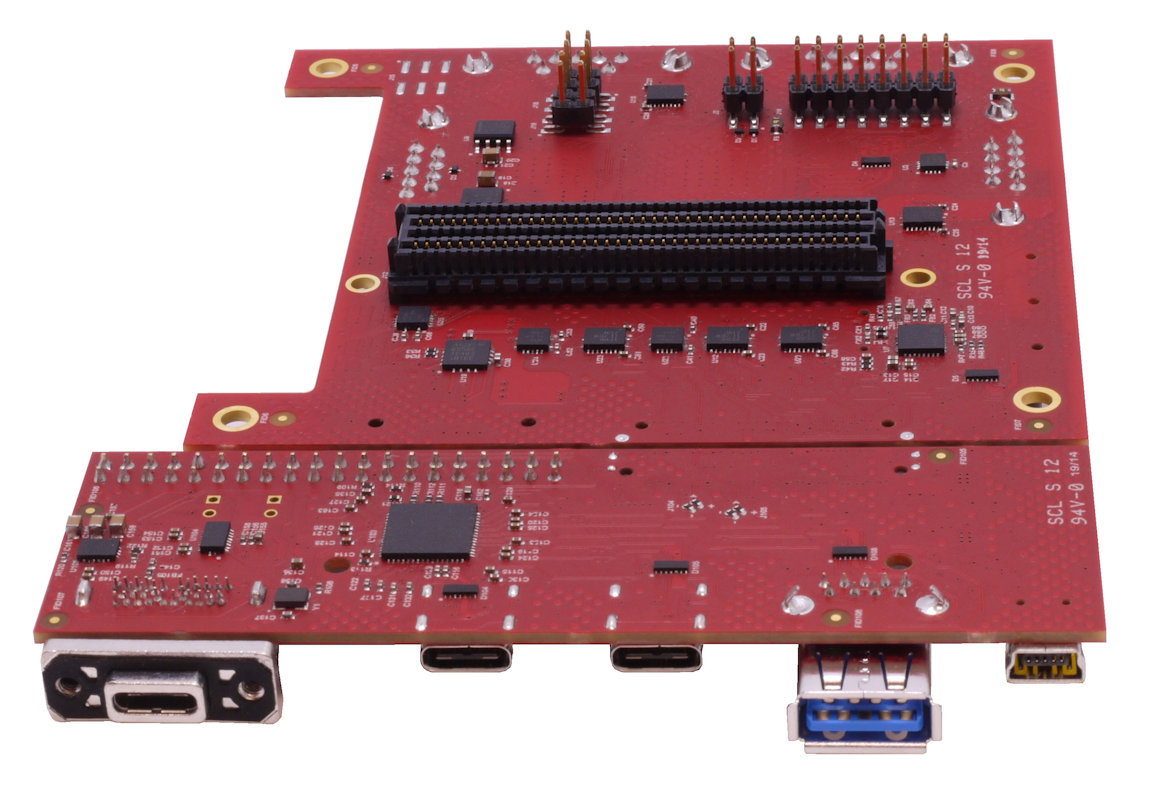

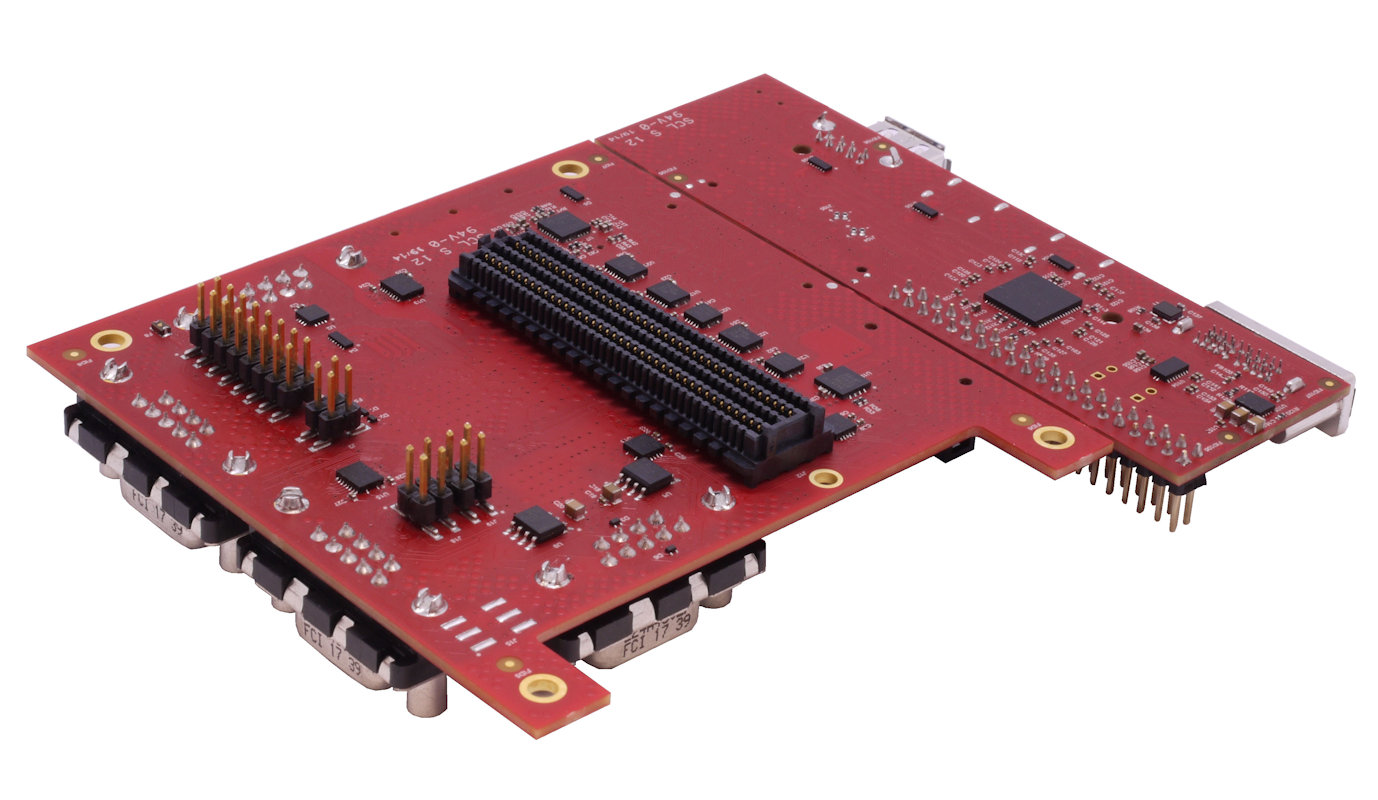

The FM192-R board is designed to fan out the FMC-LPC connector I/Os to four DB9 connectors and one SEIC connector. The FM912-R provides wireless connectivity via WiFi + BLE and 4G + GNSS/GPS modules. 3x antenna connectors (2x for the 4G + GNSS/GPS and 1x WiFi + BLE) are provided for connecting 3x external antennas. Furthermore, the FM192-R provides an IMU sensor, CAN BUS, humidity and temperature sensor and Audio I/O.

Optionally, 4x USB 3.0 and 40x pin General Propose Input/Output (GPIO) can be added using the FM192-U expansion board via the SEIC connector.

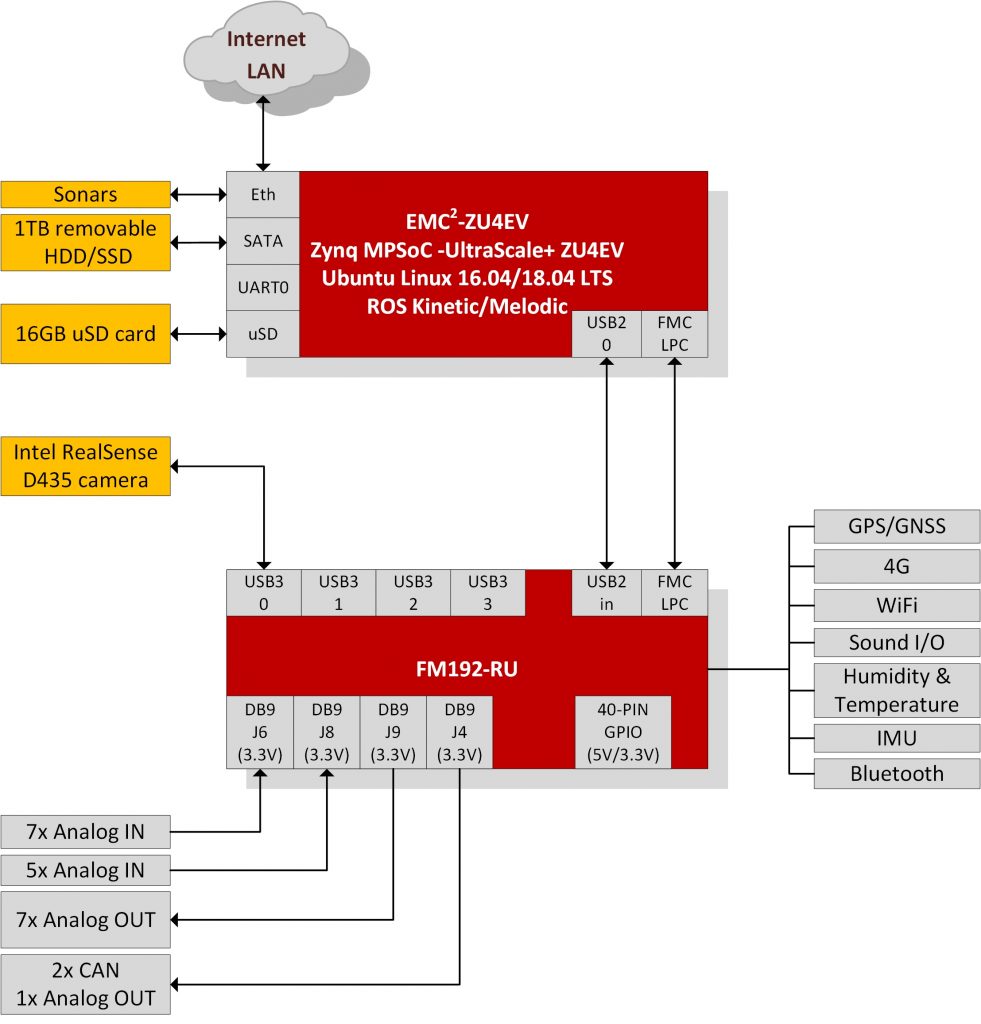

The FM192-R was specially designed for adapting the Sundance EMC2-V2, and other FPGA systems compatible with the VITA57.1 FMC-LPC interface for vision/robotics and autonomous systems/IoT applications.

Features

  • FMC LPC connector with I/O and single high-speed serial.
  • Single +5 (external ATX connector MOLEX part 8991) for powering external sensors via the DB9 connectors.
  • 100-way SEIC peripheral interface connector.
  • 12x analogue inputs 3V TTL, with a resolution of 12-bits@2kSPS via 2x DB9 (J6-J8).
  • 8x analogue outputs 3V TTL, with a resolution of 24-bits@2kSPS via 1x DB9 (J9).
  • IEEE 802.11 a/b/g/n WiFi + Bluetooth Low Energy V4
  • 4G + GNSS/GPS
  • 2x CAN BUS via 1x DB9 (J4).
  • IMU sensor
  • Humidity and Temperature sensor.
  • Audio I/O
  • Optional 4x USB 3.0 connections are available via the expansion FM191-U board.
  • Optional 26x single-ended digital I/Os 5V TTL 40-pin via the expansion FM192-U board.
  • 3 x ADS122U04IPWR a precision, 24-bit, analog-to-digital converter (ADC)
  • DAC60508ZRTET eight-channel digital-to-analogue converter (DAC)
