Mini PCIe

Solar Express 50-3G/SDI

  • mini-PCIe card for 3G/SDI imaging applicationds
  • MPF300T-1FCVG484E PolarFire FPGA from Microchip and LMH0397 from TI
  • One 1024×16 DDR4 chips for RAM (2GB of DDR4)
  • PCIe x1 Gen2 as EP
  • 2 U.FL connector for 3G/SDI input/output interfaces
  • support for V210 video format  used in professional video production and broadcast.

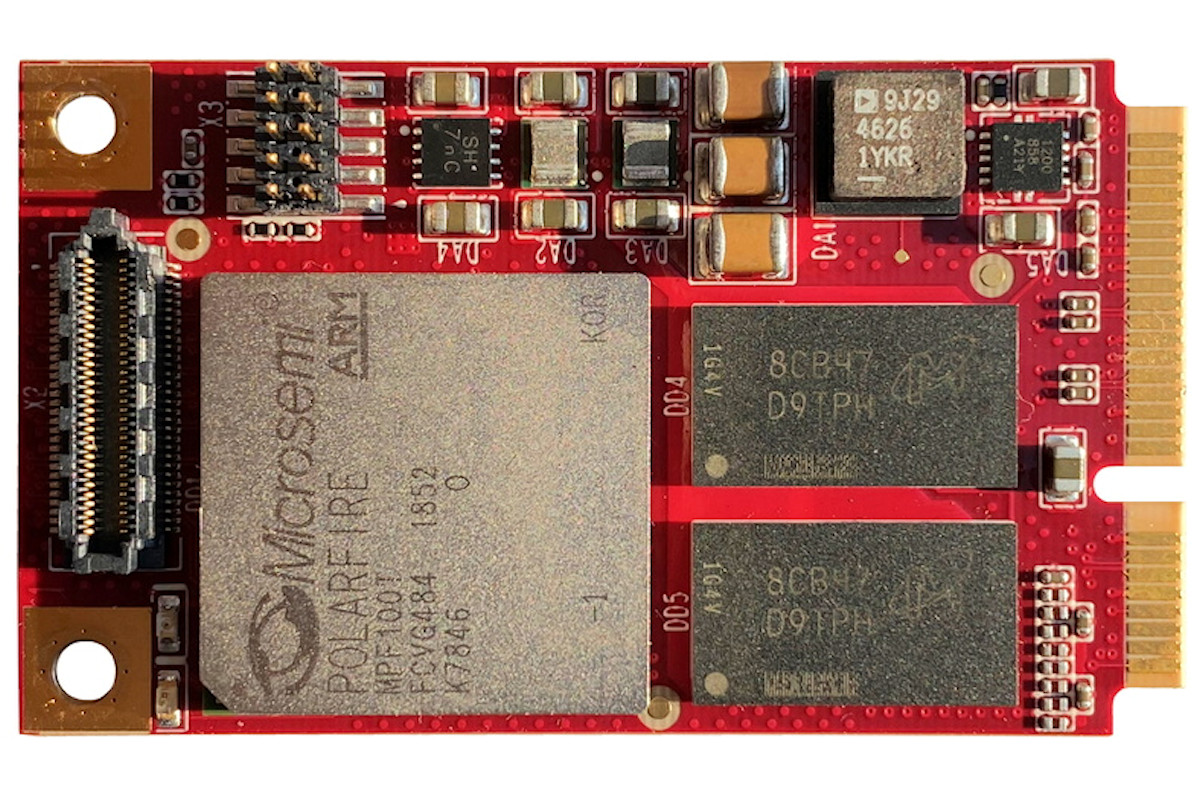

Solar Express 50

  • MPF300T-1FCVG484E PolarFire FPGA from Microchip
  • Two 1024×16 DDR4 chips for RAM (4GB of DDR4)
  • PCIe x1 Gen2 as EP
  • Samtec SS4-30-3.00-L-D-K I/O connector for GPIOs and transceivers
  • Additional GPIO with FPGA processing
