Imaging
FG-550-CL, embedded, Xilinx Zynq FPGA-based, Cameralink solution
Standalone Frame grabber module with FPGA and ARM processor running Linux. Can transfer the captured images to a host running Windows via Ethernet or write the image data to the SD card.
FG600-CL, a PXIe, open FPGA, Based CameraLink Frame Grabber
FG600-CL is a PXIe format, FPGA-based imaging solution that supports BASE, MEDIUM, FULL, and Extended FULL CameraLink compatible cameras. The hardware is fully compliant with the PXIe standard and can be used in a PXIe chassis as well as in an embedded fashion.
FG-650CL, a PCIe, open FPGA, Based CameraLink Frame Grabber
FG-650CL is an FPGA-based imaging solution that supports BASE, MEDIUM, FULL, and Extended FULL CameraLink compatible cameras. The hardware is a PC plugin card but can also be used in an embedded fashion.
FG600-MIPI: AN OPEN FPGA, PXIE BASED, MIPI FRAME GRABBER / DISPLAY SOLUTION
FG600-MIPI is an imaging solution based on a Kintex FPGA board in PXIe format. This solution captures images or video from the MIPI CSI2 image sensor via the FMC-MIPI module and displays it on the host screen. The hardware is fully compliant with the PXIe standard and can be used in a PXIe chassis as...
FG700 Imaging solution based on CoaxExpress and Zynq US+ technology
DescriptionFeatures and ApplicationsAdditional ImagesIP Cores/Drivers/BSPOrdering Information FG-700 solution consists of SE120-11EG and the Kaya Inc. CoaXPress FMC card FMC-CXP-II, from hardware of point of view. The SE120 CoaXPress reference design is based on the reference design from Kaya for ZCU102 EVB. The design contains the Kaya CoaXPress Multi-link Host FPGA IP Core. The design uses...
OI110 – Dual CameraLink
- Dual CameraLink Ports
- Dual Single SATA-3 Ports
- PoCL (Power over Camera Link) support
- Up to 85 MHz data rate
- Dual Base, Single Medium Base
- Single Extended Full CL Base
OI115 – HDMI Input / Output FMC
- HDMI Input/Output FMC module (FMC-IMAGEON)
- HDMI input
- HDMI output
- Interface for ON Semiconductor VITA image sensor modules
- Video clock synthesizer
RF & Digital Comms
DSP802.11S IEEE802.11 a/b/g/- SISO and MIMO Development Platform
The DSP802.11S is a complete SDR development/demonstration system comprising low-cost development hardware, software, and firmware. FC802.11 is the firmware component of the solution for implementing 802.11 /a/b/g.
DSP8080-AIMM
Altitude Interference Mitigation Module (AIMM)is a complete Narrow Band Digital Beam Former System for communication in hostile environments, originally designed for US Navy.
Dual RF MIMO
Dual channel RF module with 12bits digital IQ ADCs with a Virtex 5 FPGA (XC5VFX70T or XC5VFX100T) for processing. The system has a standalone carrier card with USB interface to host PC for application development. The solution also offers two dual-band 50 Ohm antenna ports for each channel.
Data Center
Based on Xilinx Zynq Utrascale+ MPSOC XCZU7EV-2FFVC1156E, SE125 is a Low Profile PCI Express board for Data Center Applications
SE125 is a low profile, 8 lanes PCIe card powered by the Xilinx Zynq Utrascale+ MPSOC (XCZU7EV-2FFVC1156E. Designed for Data Center application for simultaneous 4K video encode/decode4K video streaming . The onboard Zynq supports integrated H.265 hardware encoders and decoders.
MPSoC, PCIe board with XIlinx XCZU7EV / XCZU11EG Zynq Ultrascale+ MPSOC
Using Xilinx Zynq UltraScale+ MPSoC family, SE120 is a x8, Gen4 PCIe board. It can be assembled with the XCZU7EV-2FFVC1156E /XC ZU7EG/ XCZU11EG/ or ZU7CG. Depending on the choice of device it can be used for applications in Data Centers, HPC, digital communication, image processing and AR/VR. When using 7EV device the video encoder/decoder unit...
Solar Express 100, Xilinx Virtex Ultrascale, XCVU190-2FLGC2104E, FPGA based PCIe board
SE100 is based on Xilinx's Virtex Ultrascale FPGA XCVU190-2FLGC2104E, and is a powerful processing card with plenty of IO capabilities to meet the needs of modern compute-intensive applications such as Supercomputing, Data Centers and defense. Target applications include:
- High performance optical networking
- High-end image processing
- ASIC/SOC prototyping and development
High Performance Computing
Xilinx Virtex Ultrascale FPGA PCIe board with XCVU190-2FLGC2104E
SE100 is based on Xilinx's Virtex Ultrascale FPGA XCVU190-2FLGC2104E, and is a powerful processing card with plenty of IO capabilities to meet the needs of modern compute-intensive applications such as Supercomputing, Data Centers and defense. Target applications include:
- High performance optical networking
- High-end image processing
- ASIC/SOC prototyping and development
Solar Express 120 (SE120), Xilinx Zynq Ultrascale+ based MPSoC PCIe card with FMC site
SE120 utilizes the Xilinx Zynq UltraScale+ MPSoC family in C1156 package. SE120 is a Gen4 x8 PCIe board. It can be assembled with the XCZU7EV-2FFVC1156E /XC ZU7EG/ XCZU11EG/ or ZU7CG. Depending on the choice of FPGA it can be used for applications in HPC, digital communication, image processing, and AR/VR. By cascading multiple SE120s multiprocessing...
FMC Modules
FMC-RSxxx-8
DescriptionFeatures and ApplicationsAdditional ImagesOrdering Information This LPC FMC card has eight channels, RS-xxx interfaces. The Channels are factory-defined/built when ordering the board.Possible combinations/interfaces are: X * RS232 + Y * RS422 + Z * RS485 where X+Y+Z = 8 ( for 8 channels ).When ordering FMC-RSxxx-8, a customer needs to define X, Y, and Z....
FMC-SDR400D
The FMC-SDR400D is based on AD9361 Transceivers IC, with Low Noise Amplifier (LNA) at RX channels. Tx channels contain 20 dB amplifier IC.
FM191
FMC-LPC I/O Module with ADCs, DACs, quad USB 3.0 type C ports and a 40-pin GPIO header. DescriptionFeatures and ApplicationsBlock DiagramAdditional ImagesConfiguration OptionsSTEP fileDocumentation The FM191-RUA1 has a VITA57.1 FMC-LPC connector and follows the electronics specification and recommendations of the standard but is NOT form-factor compatible and will NOT fit all FMC carriers. Two versions...
FM192
FMC I/O Module with ADCS/DAC/CANS I/Os + WiFi/BLE/GPS/GNSS/4G/AUDIO MODULES + IMU/TEMPERATURE&HUMIDITY SENSOR AUDIO SENSORS + USB3.0 + GPIO DescriptionFeaturesBlock DiagramAdditional ImagesDocumentation The FM192-R board is designed to fan out the FMC-LPC connector I/Os to four DB9 connectors and one SEIC connector. The FM912-R provides wireless connectivity via WiFi + BLE and 4G + GNSS/GPS modules....
FM582
2 channel 1GSPS 8 bit ADC card in FMC format using a Low Pin-Count connector DescriptionSpecificationsDocumentation The following features are controllable by software: Input signal range, coupling, termination and offset adjustment Self-calibration Sampling clock selection Direction of external trigger in/out ADC configuration and status The offset adjustment does not clip the signal at the highest...
SMT-FMC116
FMC digitiser module equipped with one, two, three or four LTC217x ADCs DescriptionBlock DiagramAdditional ImagesConfiguration OptionsOther files The SMT-FMC116 is an FMC digitiser module equipped with one, two, three or four LTC217x ADCs with speeds up to 125Msps @ 14-bit resolution. It uses an HPC FMC connector and complies with ANSI/VITA 57.1. The simplified block diagram is...
FMC-MIPI, 4 channels DSI/CSI MIPI solution in FMC Format
This is a complete system solution for image processing. FMC-MIPI offers 2 CSI and 2 DSI channels for interfacing to MIPI-based cameras /sensors and displays. It converts from MIPI to a parallel interface for easy transfer to the FPGA on an FMC carrier card for more demanding processing. It includes two Lattice FPGAs which can...

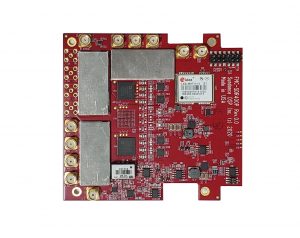

FMC-SDR400 Dual RF Multi I/O FMC for Software Defined Radio
FMC-SDR400 is a conduction-cooled Dual RF multiple I/O modules (MIMO) with 70MHz - 6GHz RF transceiver and sampling of less than 70MHz. Provides high RF sensitivity.
FMC-ADC500-5, ADC 500MS/s 16bits
FMC-ADC500-5
- 5 x ADC 16 bit @ 500MS/s
- High Pin Count ( HPC ) FMC module
- Trigger Input, External Clock up to 4 GHz
FMC-DAQ2p5, ADC and DAC FMC module,
FMC-DAQ2P5 is a JESD204B compliant module.
- 1 x ADC 12 bits @ 2.7 GSPS
- 2 x DAC 16 bits @ 2.8 GSPS
- High Pin Count ( HPC ) FMC module
- PXIe, PCIe, Stand-Alone ... platforms
- External Clock up to 4 GHz
- 100 MHz onboard VCXO

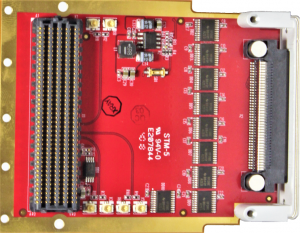

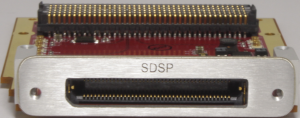

FMC-GPIO, HPC and LPC I/O interface
FMC-GPIO is an FMC module that can act as an I/O interface for an FPGA board with HPC or LPC FMC sites.
FMC-SER, is a VITA57 FPGA Mezzanine I/O module
The FMC-SER is a VITA57 FPGA Mezzanine module provides Serial I/O function.
FMC-1553, FMC Mezzanine module 2 or 4 channel MIL-STD1553
The FMC-1553 is world’s first VITA57 FPGA Mezzanine module to offer MIL-STD1553 function.
FMC-A429, module with 2/4 Receivers & 2/4 Transmitters, 429 channels
The FMC-A429 is the world’s first VITA57 FPGA Mezzanine module to offer ARINC-429 function.
XMC Modules
DSP464
Conduction cooled Virtex-5 FPGA PMC/XMC module in FF1136 package, 16-bits 130MSPS Quad Channel ADC and Freescale MPC8548E processor supporting PCI-X, PCIe and PPC at 1GHz.
OpenVPX Boards/Modules
VPX3-ZU1 OpenVPX Xilinx Zynq ultrascale FPGA card
- Compact 3U VPX FPGA card
- Based on Xilinx Zynq UltraScale+ Multiprocessor SoC
- 6-Cores ARM up to 1.5GHz, and GPU
- 2.5 or 5GB DDR4 RAM, 64GB Flash
- Up to 750K Programmable Logic Cells
- FMC compatible socket for high-speed interface adapters
- Can operate as SBC or System Controller
- Best in Class SWaP-C
PCIe Boards/Modules
Solar Express 100, Xilinx Virtex Ultrascale, XCVU190-2FLGC2104E, FPGA based PCIe board
SE100 is based on Xilinx's Virtex Ultrascale FPGA XCVU190-2FLGC2104E and is a powerful processing card with plenty of IO capabilities to meet the needs of modern compute-intensive applications such as Supercomputing, Data Centers, and defense. Target applications include:
- High-performance optical networking
- High-end image processing
- ASIC/SOC prototyping and development

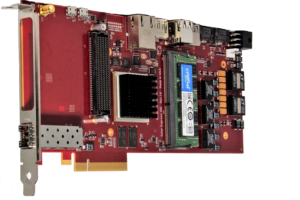

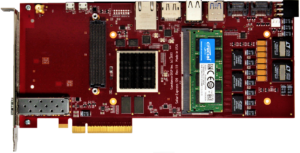

SE120, Xilinx Zynq Ultrascale+ MPSoC PCIe card with FMC site
Using Xilinx Zynq UltraScale+ MPSoC family, SE120 is an x8, Gen4 PCIe board. It can be assembled with the XCZU7EV-2FFVC1156E /XC ZU7EG/ XCZU11EG/ or ZU7CG. Depending on the choice of device it can be used for applications in HPC, digital communication, image processing, and AR/VR. When using a 7EV device the video encoder/decoder unit (VCU)...
Solar Express 125 (SE125), Xilinx Zynq Ultrascale+ based MPSoC half size PCIe board
E125 is based on the Xilinx Zynq Ultrascale+ MPSoC. This is a low-profile 8 lane PCIe card specifically designed to support Data Center applications. When XCZU7EV-2FFVC1156E is populated then the board can be used for simultaneous video decoding/encoding up to 4K resolution, and with XZU11EG it will be better suited for network acceleration.
SE215 PCIe carrier for SOM3
DescriptionFeatures and ApplicationsAdditional ImagesIP Cores/Drivers/BSPOrdering Information SE215 is a development board for Sundance SOM3 . It is a PCIe x1 Gen2 carrier card with one site for an SOM3. It offers USB JTAG and UART, through a micro USB connector, Display port and comes with a version of Display port IP core from Bitec DSP....
SE200 SOM PCIe carrier
Solar Express 200 (SE200) is an x8 Gen3 PCIe carrier board with two SoM-PF m(System on Module) sites. The 2 SoMs that can be supported on this carrier are SoM-PF1 and PF2 which are based on MPF500-1FCG1152 and MPF300T-1FCG784E respectively. Site 1 is typically designed for SoM-PF1 but if SoM-PF2 is plugged into that position...
SE201
Request pricing or more info DescriptionFeatures and ApplicationsAdditional ImagesIP Cores/Drivers/BSPOrdering Information The Ultimate Carrier Card for SOM Modules Seamless Development with Versatile Connectivity Options The SE201 is an exceptional carrier card specifically designed to complement SDSP's SOM1 and SOM2 modules. This innovative board serves as a versatile platform for seamless development, offering a wide range...
Solar Express 215 (SE215), development PCIe carrier board for SOM3
SE215 is a development board for Sundance SOM3. It is a PCIe x1 Gen2 carrier card with one site for a SOM3. It offers USB JTAG and UART, through a micro USB connector, Display port and comes with a version of Display port IP core for SOM3 from Bitec DSP. The card provides Power GOOD...
PCIe-104 Boards/Modules
EMC² ZU2CG
DescriptionBlock Diagram This system comprises an EMC²-DP and a Trenz Electronic SoM, namely the TE0820-05-2AI21MA EMC²-DPThe EMC²-DP is a PCIe/104 OneBank™ Carrier for a Trenz compatible SoC Module and has expansion for a VITA57.1 FMC™ LPC I/O board and also has I/O pins, using a 100-way Samtec RazorBeam connectors system. The add-on board, called “Sundance...

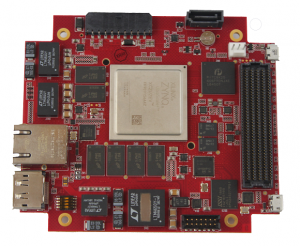

PCIe104Z with Xilinx Zynq US+ MPSOC
PCIe104Z is based on the Xilinx Zynq UltraScale+ MPSoC family. This hardware is in PCIe104 form factor and adheres to its latest specification. It offers 4 Gen 2.0, x1 lane PCIe interfaces through a switch that allows 4 PCIe104 cards to be connected to the ARM on the Zynq which acts as the host. The...
PCIe104-RFSOC
DescriptionFeatures And Apps.Additional ImagesOrdering Information PCIe104-RFSOC is based on the Xilinx XCZU27DR family in FFVG1517 package. This hardware is in PCIe104 form factor and adheres to its latest specification. It offers PCIe x1 Gen2.0 interface so 1 card could be connected to the ARM on the RFSOC device which acts as the host. The board...
SMT6657-KU35
Quad-Core KeyStone" DSP + UltraScale" FPGA Module
- PC/104 OneBank" plug-able module format
- Two Texas Instrument dual-core TMS320C6657 floating-point DSPs, running @ 1.24 GHz
- Xilinx Kintex-7 UltraScale KU35 series of FPGA w. 16x GTH transceivers
EMC²-KU35
PCIe/104 OneBank I/O board Xilinx Kintex UltraScale KU35 SoM for I/O Interface and processing PCI Express Gen 2 compatible and integrate PCI Express switch An infinite number of EMC²-KUxx can be stacked for large I/O solutions Expandable with any VITA57.1 FMC I/O Module for more flexibility 96mm x 90 mm PC/104 Form-Factor with Cable-less Break-Out...
EMC²-Z7030
- PCIe/104 OneBank SBC w. Dual 1GHz ARM9 & 1Gbyte DDR3
- Xilinx Zynq SoC FPGA for I/O Interface and processing
- Integrated 1Gb Ethernet, combined w. USB2, SATA-2
- PCI Express Gen 2 compatible and integrate PCI Express switch
EMC²-DP PCIe104 SOM carrier
The EMC²-DP is a PCIe/104 OneBank" Carrier for Sundance SOM3 module based on PolarFire. It is also compatible with Trenz SoC Module and has expansion for a VITA57.1 FMC" LPC I/O board and also has I/O pins, using a 100-way Samtec RazorBeam connectors system.
DSP-PCIe/104
DSP-PCIe/104 is a ruggedized industrial-grade PCIe/104 XC5VLX85T-1FFG1136 FPGA card with 1 lane of PCIe interface to host computers. This module can be attached to a custom neighboring PCIe/104 card acting like a daughter module. It comes with an XC5VLX85T.
PXIe Boards/Modules
PXIe800Z, Zynq UltraScale+ MPSoC, PXIe card with FMC+
PXIe800Z complies with the latest PXIe standard and carries an AMD Zynq Ultrascale+ MPSOC, an extensive amount of memory attached to the ARM processors and also to the Programming Logic (PL) part of the Zynq. This board although, in PXIe form factor, but can be used as an embedded SBC solution with integrated programmable logic.
PXIe700 with Kintex FPGA and HPC FMC
PXIe700 is expandable hardware, which is fully compatible with PXI-5 and ANSI-Vita-57.1 FMC carrier standards. PXIe is the platform of choice for the test, measurement, and instrumentation market.
- Kintex7 FPGA
- PXI control, trigger, and clock
- 4 Lane PCIe Gen2 (Gen3 with softcore)
- Supports White Rabbit for nanosecond synchronization
XMC/PMC Boards/Modules
DSP417e
PCI Express conduction cooled XMC module with 2x C6416T @ 1GHz,VirtexII-Pro XC2VP50FF1152, 2xSHB Interface,7 Rocket IO RSL interfaces.
DSP464
Conduction cooled Virtex-5 FPGA PMC/XMC module in FF1136 package, 16-bits 130MSPS Quad Channel ADC and Freescale MPC8548E processor supporting PCI-X, PCIe and PPC at 1GHz.
DSP417
Conduction cooled PMC/XMC module with 2x C6416T @ 1GHz,VirtexII-Pro XC2VP50FF1152, 2xSHB Interface,7 Rocket IO RSL interfaces.
IP Cores
FC205 – Multi-port Serial Transceiver
Multi-port Serial Transceiver, FC205 provides a user select-able number of standard serial UARTs
FC118 – Complex FFT FPGA core
The FC118 FPGA IP core is a high-resolution complex Fast Fourier Transform
FC120 – Flexible FPDP protocol
Highly flexible interface for communication using Serial Front-Panel Data Port protocol.
FC130 – Digital Down Converter
Optimized Digital Down Converter Core for Virtex 4 and Virtex 5 Xilinx FPGAs.
FC200 – Fixed Point FFT FPGA core
Fixed Point FFT Processor Core for FPGA. 32 to 1024 points (or more).
FC203A – Power Spectrum Extraction/Exchange core
Power Spectrum Extraction/Exchange of a digital signal.
FC300 – 802.11a/g/n OFDM physical layer
FC300 is an FPGA IP core implementing the complete OFDM physical layer, based on 802.11a/g/n.
FC-GPIO , implements GPIO as an IP core
The FC-GPIO core has two clock domains. All registers are in system clock domain except RGPIO_IN that can be clocked by system or external clock reference.
FC-1553 Unlimited channels STD1553 core
FC-1533 is Mil-Std-1553 IP for FPGAs and ASIC, suitable for any MIL-STD-1553 BC,RT,MT implementation. VHDL code is technology independent.
FC-A429 Rx & Tx, 429 channels FPGA core
The FC-A429 macro implements a ARINC 429 protocol with Transmit and Receive Controllers . It allows for the parallel-bus microprocessor communication.
FC-CANbus Mezzanine Dual or Quad CANbus core
FMC-CANbus IP supports CAN 2.0 & CAN-FD (ISO 11898- 1.2015, plus earlier ISO and Bosch specifications) TTCAN (ISO 11898-4 level 1)
Developement Tools
Enclosures
DSP8180
Embedded DSP System for data logging. Originally designed for a US Air Force application through General Dynamics.
DSP
DSP387-G
- Two Serial ATA Disk Interface, using Silicon Image Serial ATA Link 3512 device
- 1GHz TMS320C6416TÂ DSP
- Xilinx Virtex-II Pro (VP30)
- Six 20Mbytes/s interprocessor ComPorts
