Imaging

SE50-3G/SDI

  • mini-PCIe card plus BSP for 3G/SDI imaging applicationds
  • MPF300T-1FCVG484E PolarFire FPGA from Microchip and LMH0397 from TI
  • One 1024×16 DDR4 chips for RAM (2GB of DDR4)
  • PCIe x1 Gen2 as EP
  • 2 U.FL connector for 3G/SDI input/output interfaces

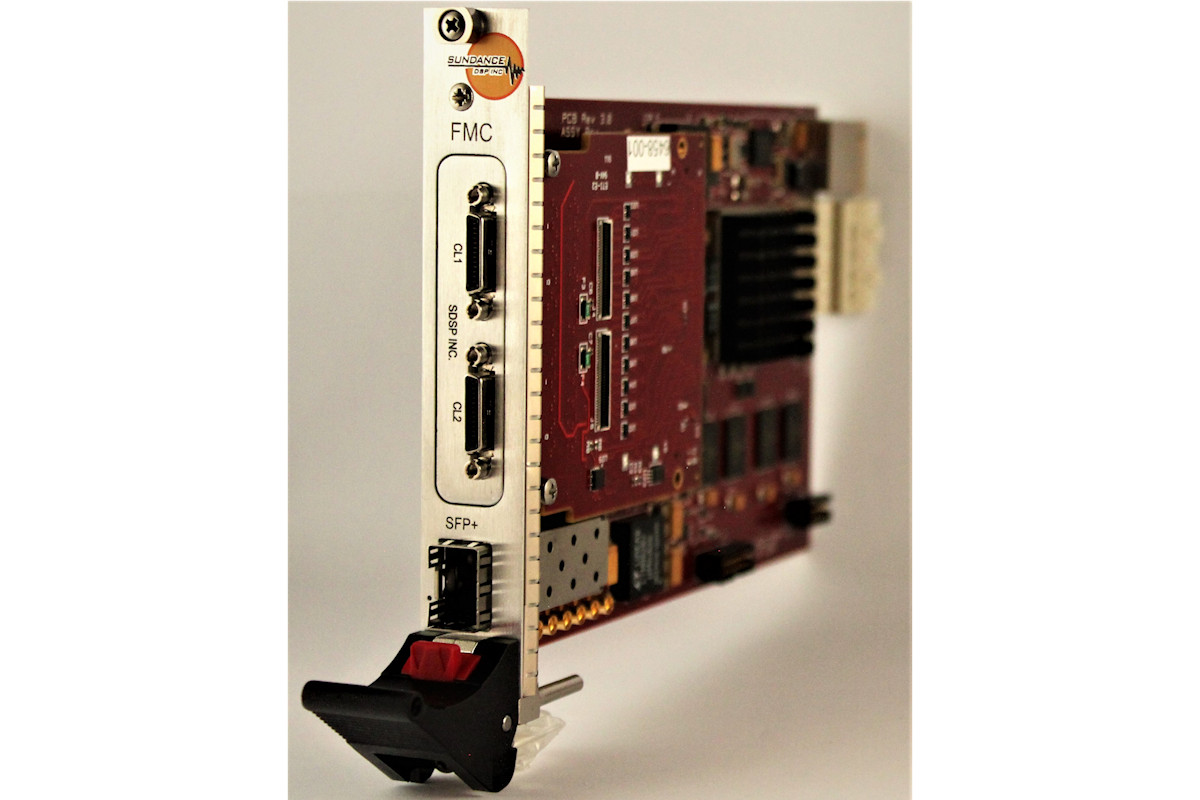

FG600-CL

  • Supports Base, Medium, Full, and Extended Configurations
  • PoCL (Power over Camera Link) v1.2 support
  • x2 SATA interfaces for real-time image storage with suitable SATA core (not provided) or x1 SATA and x1SFP+

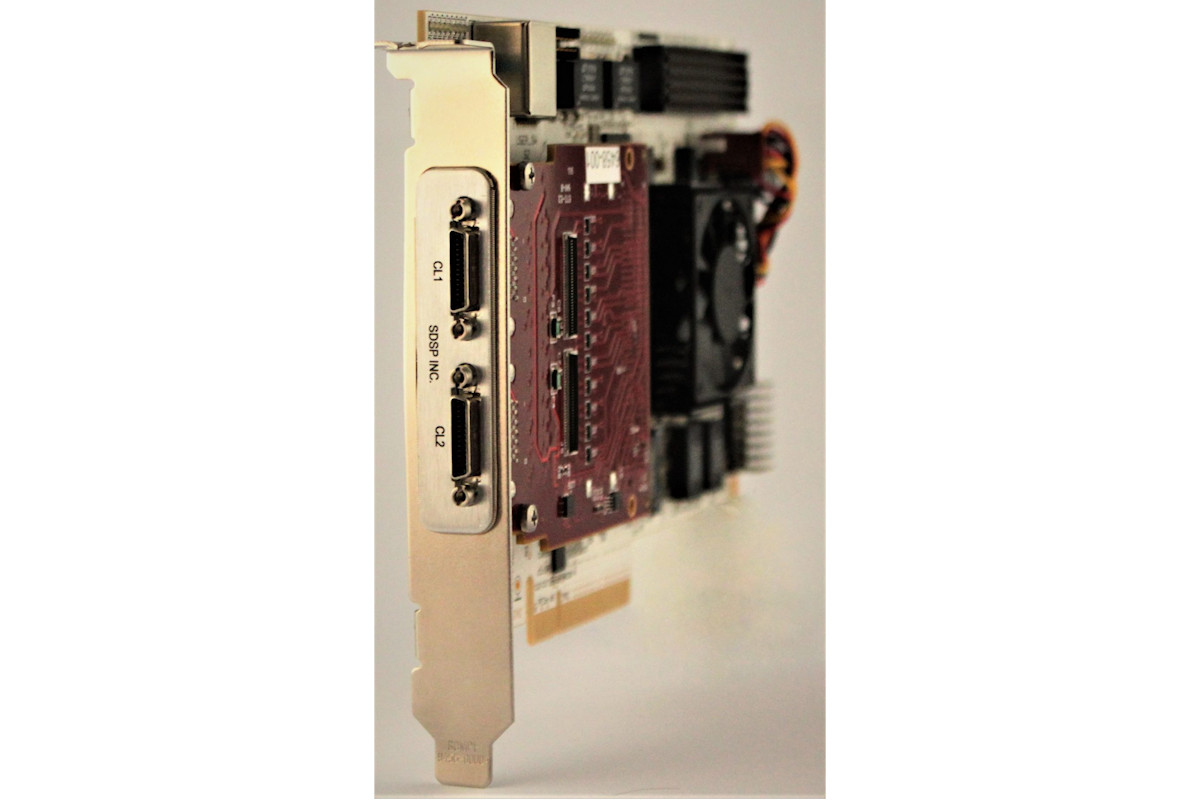

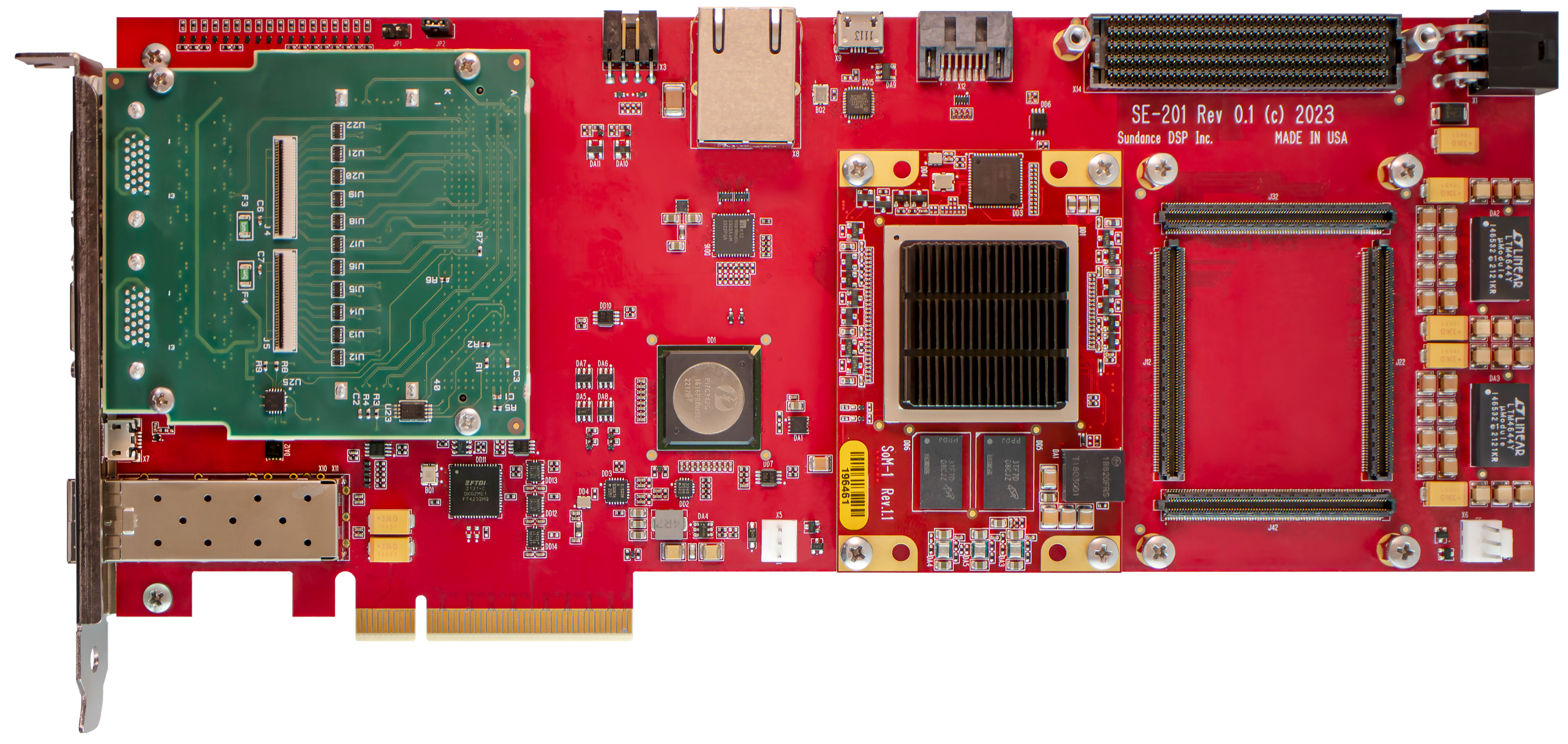

FG-650CL

  • Supports Base, Medium, Full, and Extended Configurations
  • PoCL (Power over Camera Link) v1.2 support
  • x2 SATA interfaces for real-time image storage with suitable SATA core (not provided) or x1 SATA and x1SFP+

FG-700

  • Imaging solution based on SE120-11EG and FMCII CoaXPress.
  • x2 SATA interfaces for real-time image storage with suitable SATA core (not provided) or x1 SATA and x1SFP+
  • 4 x Micro BNC connectors available from the front panel

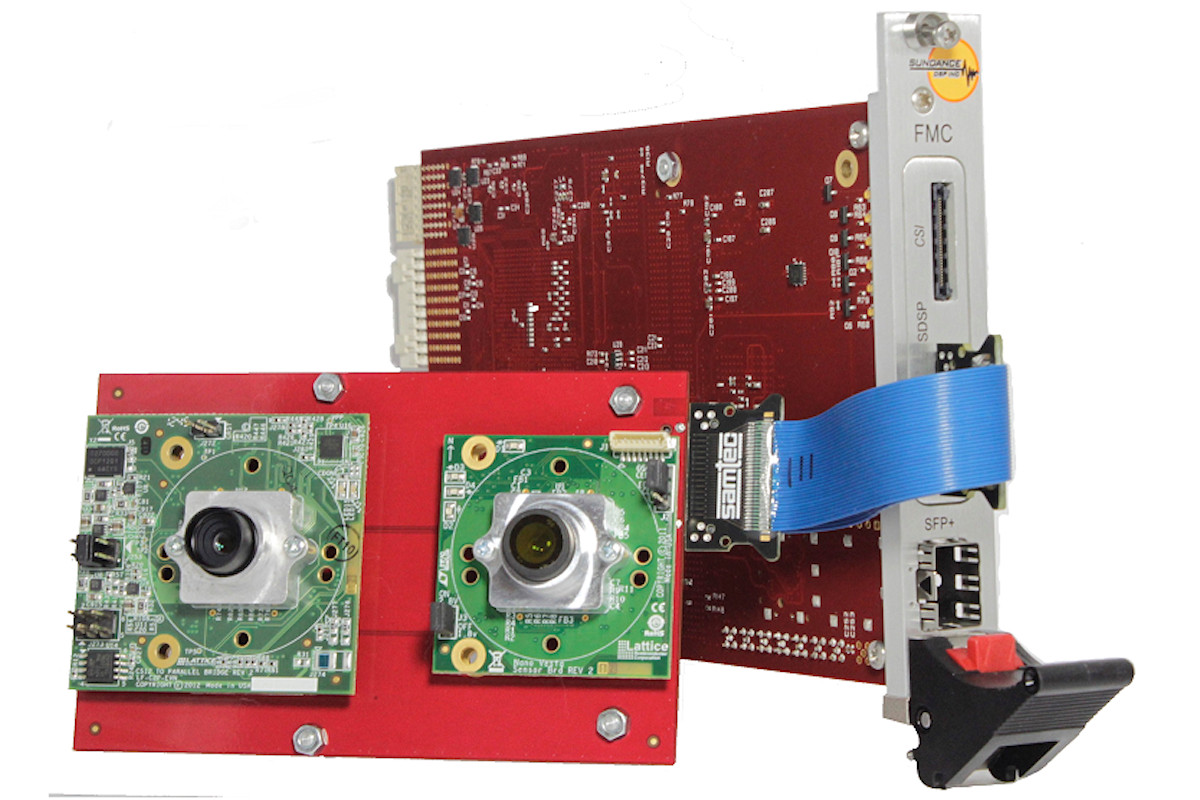

FG600-MIPI

  • An Open FPGA, PXIE based, MIPI frame grabber
  • 0.9 Gbit/sec MIPI CSI2 Interface, 2 lanes
  • 7.48 Gbit/sec FMC Interface

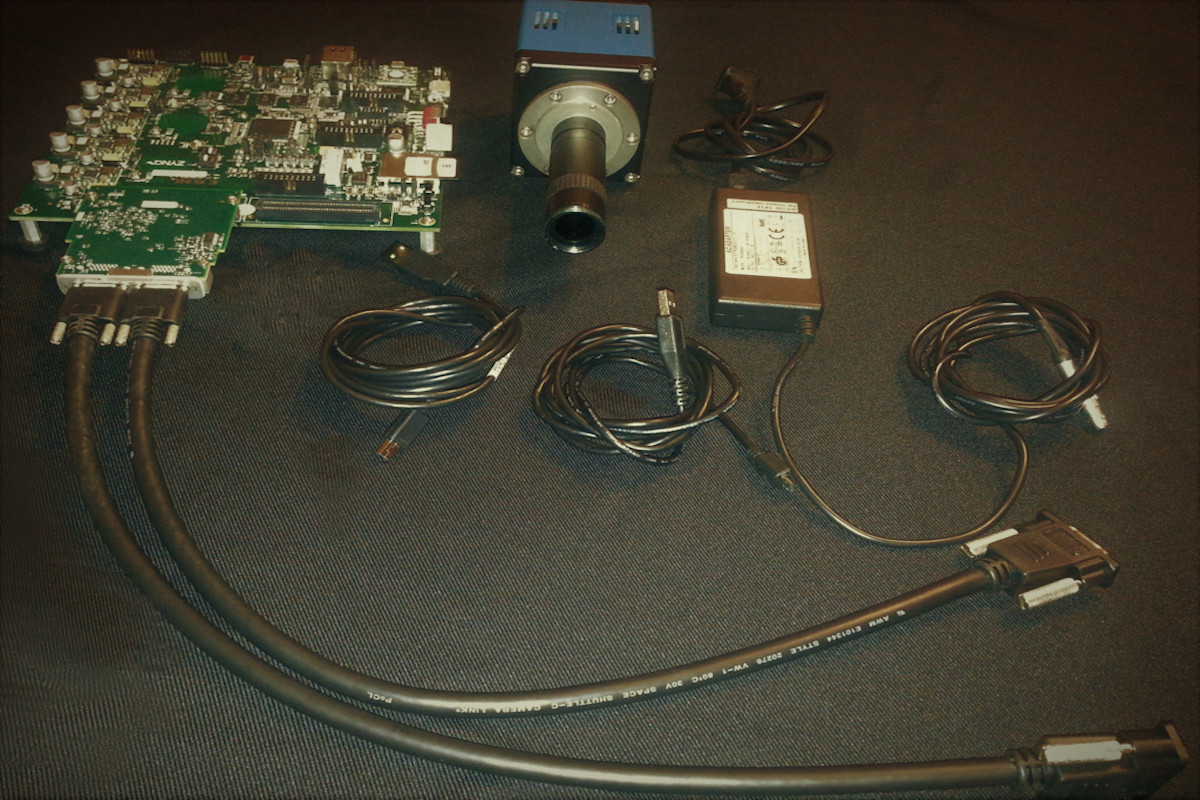

FG-550-CL

  • Base, Medium, Full and Extended FULL configurations
  • Supports all Camera Link bit assignment configurations
  • X1 free FMC VITA 57.1 Connector for expansion
  • PoCL v1.2 support

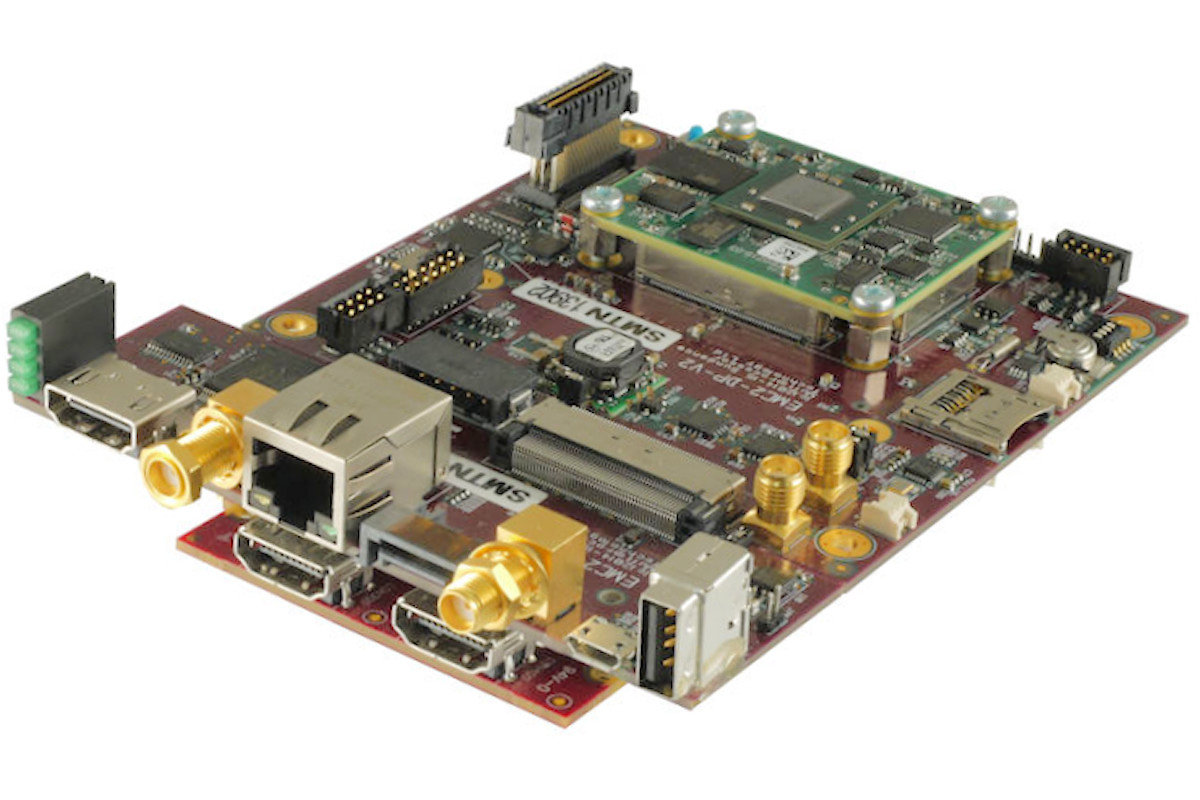

OI115

  • HDMI Input / Output FMC
  • Interface for ON Semiconductor VITA image sensor modules
  • Video clock synthesizer

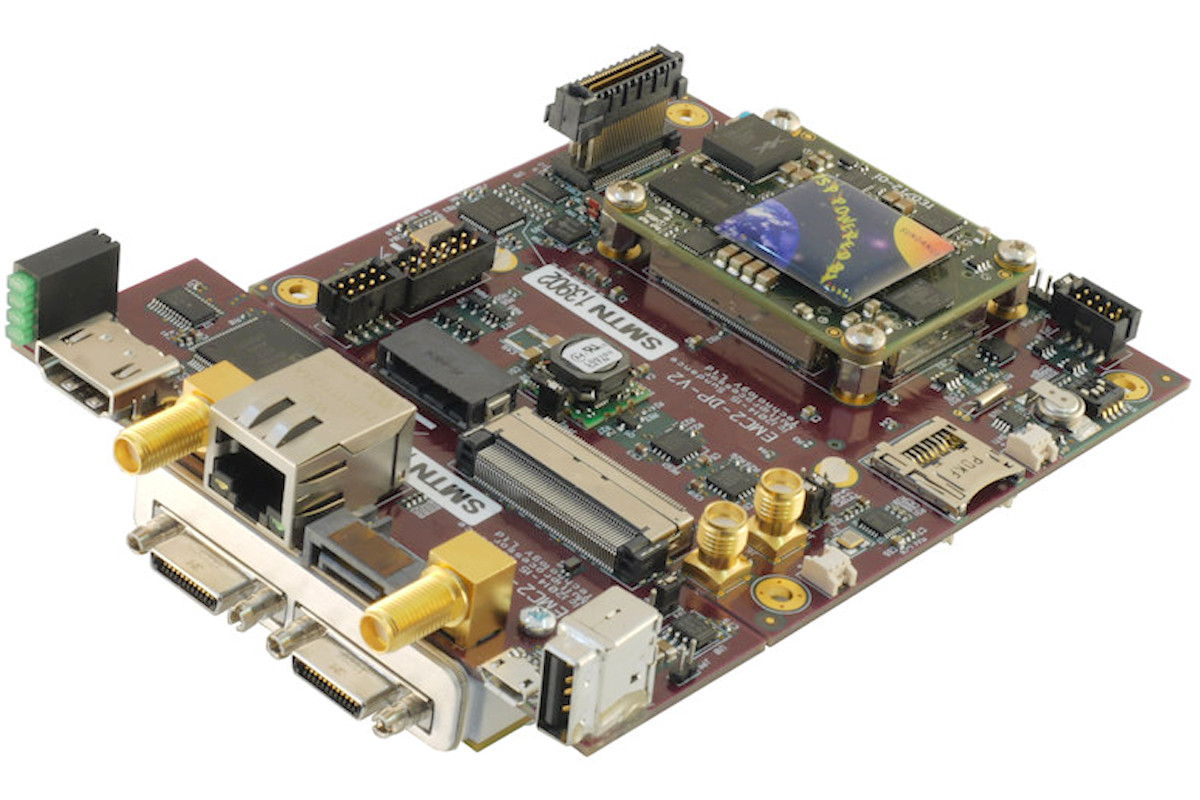

OI110 – Dual Cameralink

  • Dual CameraLink Ports
  • Dual Single SATA-3 Ports
  • PoCL (Power over Camera Link) support
  • Up to 85 MHz data rate
