VISION, CONTROL and SENSORS
An all in one solution for precision robotics
Software Defined Radio with 6 Rx/Tx channels from 70MHz to 6GHz
Mini PCIe card based on PolarFire MPF300T-1FCVG484E from Microchip.
It provides additional processing power, GPIOs as well as high speed transceivers to the host.
Based on the Xilinx Zynq UltraScale+ MPSoC family.
It offers 4 Gen 2.0, x1 lane PCIe interfaces through a switch which allows 4 PCIe104 cards to be connected to the ARM on the Zynq which acts as the host.
Specializing in DSP, FPGA, IO and RF hardware, IP Cores, Libraries, application solutions, embedded and imaging systems.
- Small size PCI104 footprint, without PCIe104 connector
- Electrically compliant to Vita 57.1 FMC standard

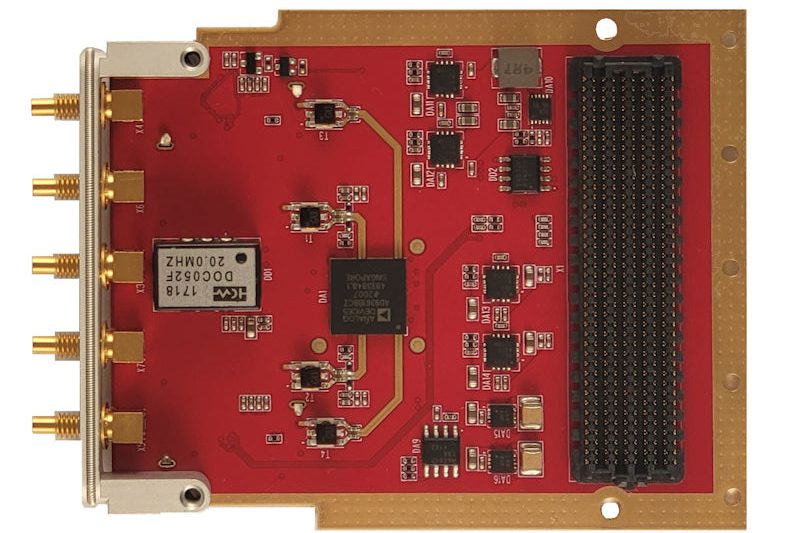

- 6 channels of RF from 70MHz to 6GHz
- Based on AD9361

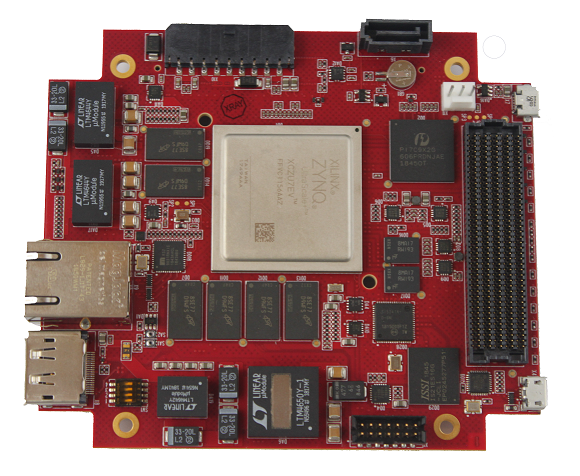

Based on the Xilinx Zynq UltraSCacle+ MPSoC family. This hardware is in PCIe104 form factor and adheres to its latest specification. It offers 4 Gen 2.0, x1 lane PCIe interfaces through a switch which allows 4 PCIe104 cards to be connected to the ARM on the Zynq which acts as the host.

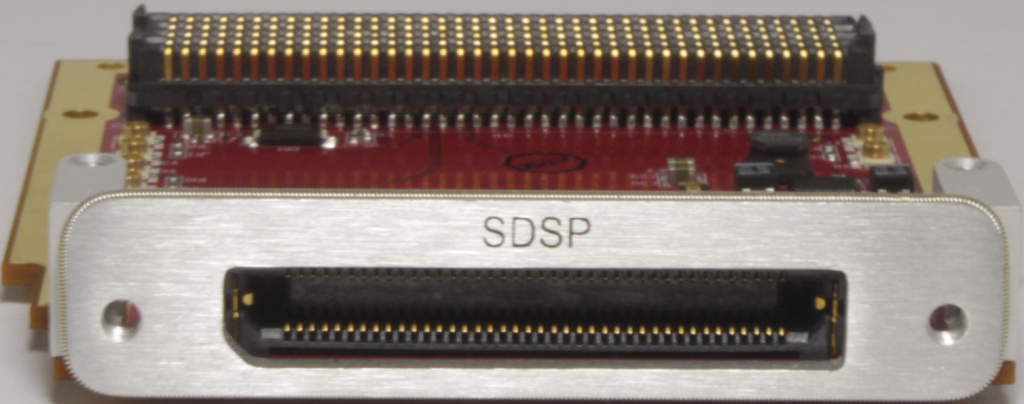

- LPC FMC with RS422 or RS485 or RS232 input interfaces
- All output interfaces are ESD protected, ESD protection built in IC;
- Main IC is SP339EER1-L
Solar Express 50
Full size mini PCIe board with a PolarFire FPGA, 4GB of DDR4 memory and PCIe interface, JTAG, IO connector, suitable for application processing or for providing additional IO interface to the host. This is a Full size mini PCIe peripheral board with MPF300T-1FCVG484E FPGA
