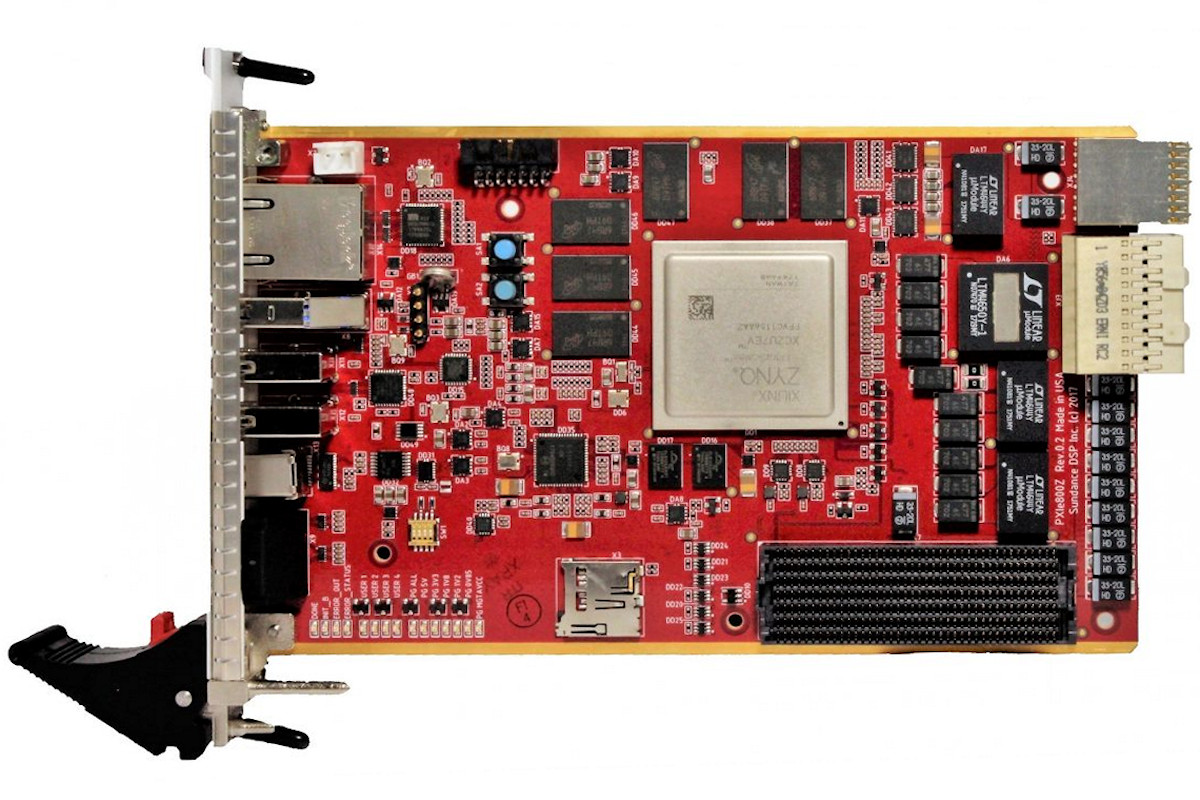

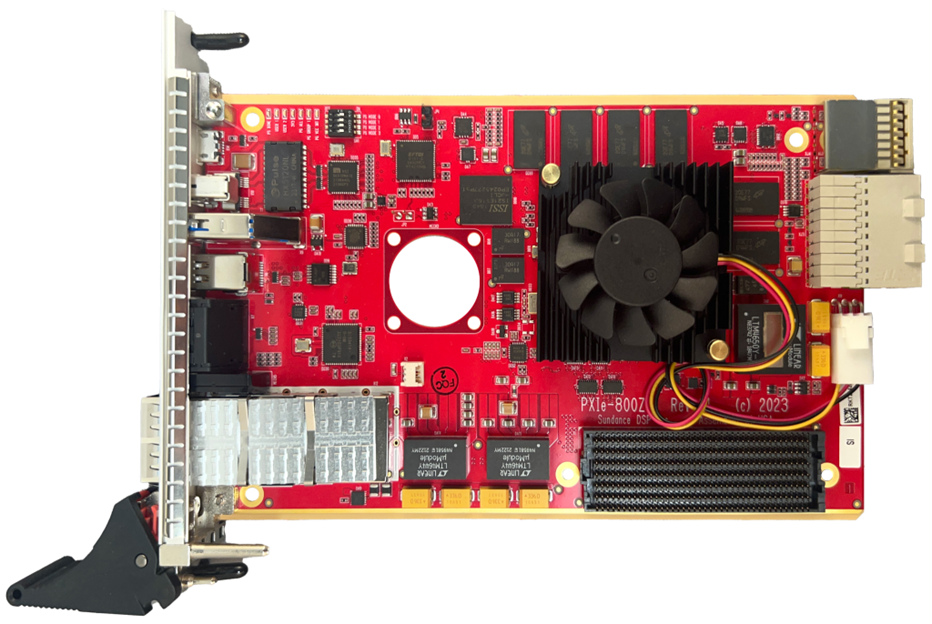

PXIe800

  • x1 HPC FMC expansion site with 10 GTH at 16.3Gb/s transceivers and 56 LVDS IO pairs
  • Can use extra-large FMC modules for custom application
  • Virtex Ultrascale+ Zynq MPSoC FPGA in C1156 package (XCZU7EV / XCZU7EG/ XCZU11EG / XCZU7CG)

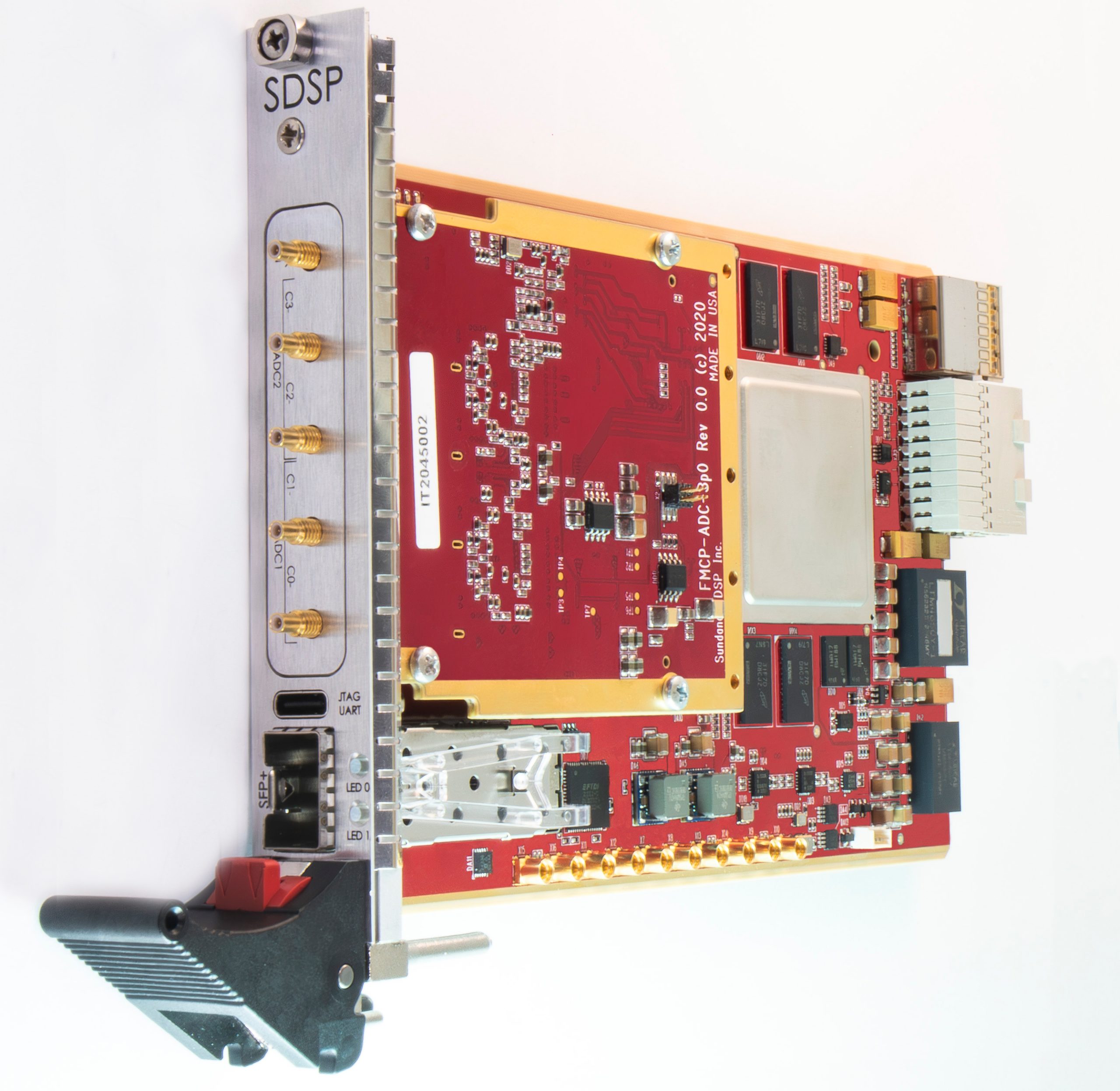

PXIe720

PXIe-720 hardware is a PXIe format FPGA card with an 8-lane PCIe interface, and an HPC FMC+ daughter card connector.

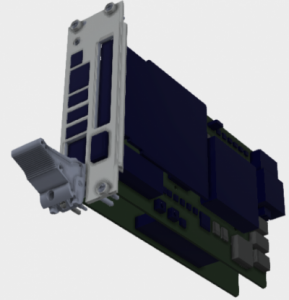

PXIe840

PXIe840 is based on Xilinx/AMD  Zynq Ultrascale+ MPSoC, in the FFVC1156 package. All the devices in that package can be populated on this board. The power is drawn from the PXIe chassis. The module offers an FMC+ site and a QSFP+, which are available at the front panel. Without the IO card, it takes only one slot.

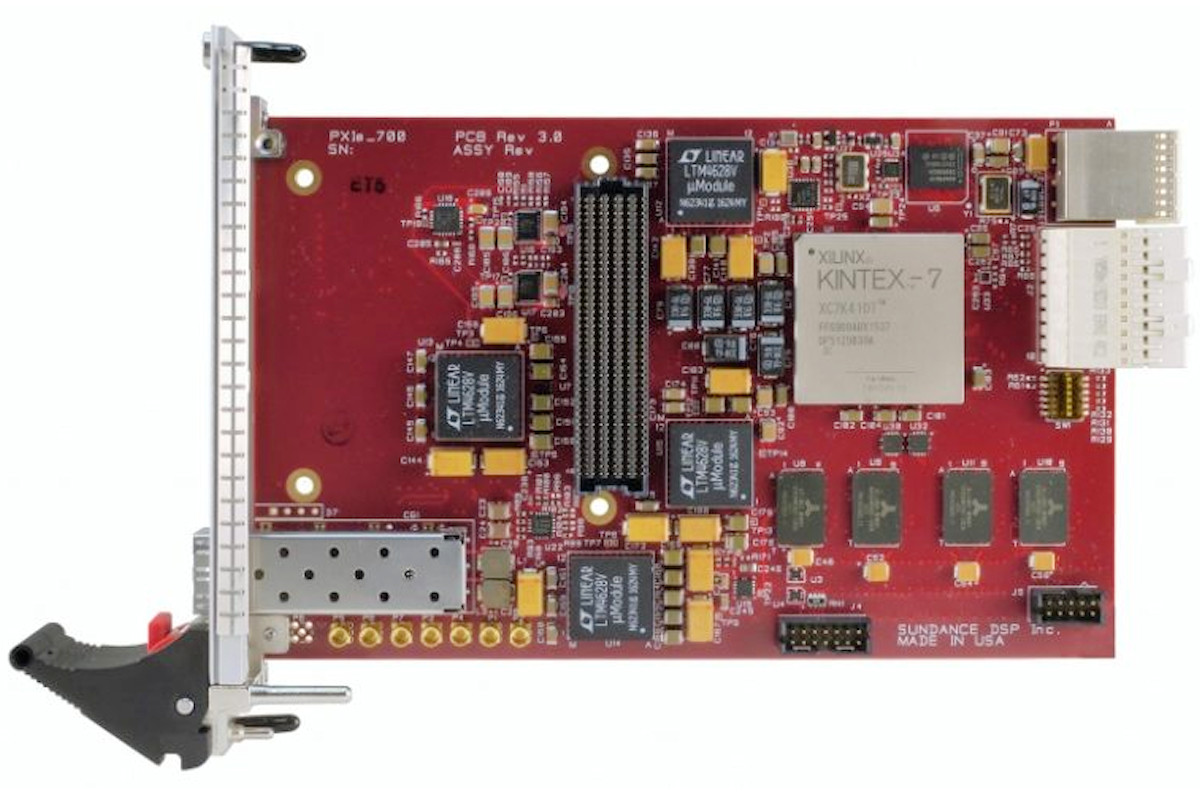

PXIe700

  • 3U PXIe card conforming to PXI-Express standard
  • Kintex7 FPGA XC7K325T-2FFG900C or XC7K410T-2FFG900C
  • High Pin Count FMC connector with 10 GTX transceivers at 10.31 Gb/s each
