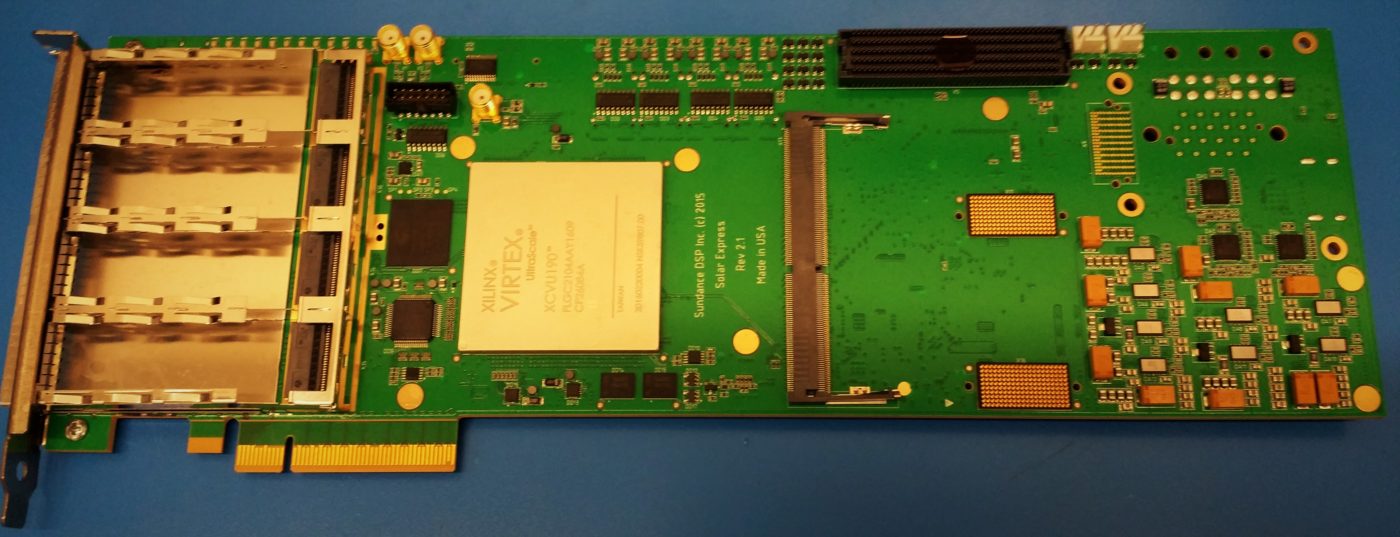

Solar Express 100

  • Virtex Ultrascale FPGA XCVU190-2FLGC2104E
  • x8 lanes PCIe Gen3 (Gen4 with soft core)
  • x2 lanes PCIe104 PCIe Gen3 connector
  • Up to 1600 Mbps LVDS signaling

Solar Express 120

  • Zynq Ultrascale+ MPSoC (XCZU7EV-2FFVC1156E / XCZU7EG/ XCZU11EG / XCZU7CG )
  • 4GB of DDR4 to PL
  • Flash memory for user application bitstream
  • 8GB of eMMC card for running OS and embedded applications

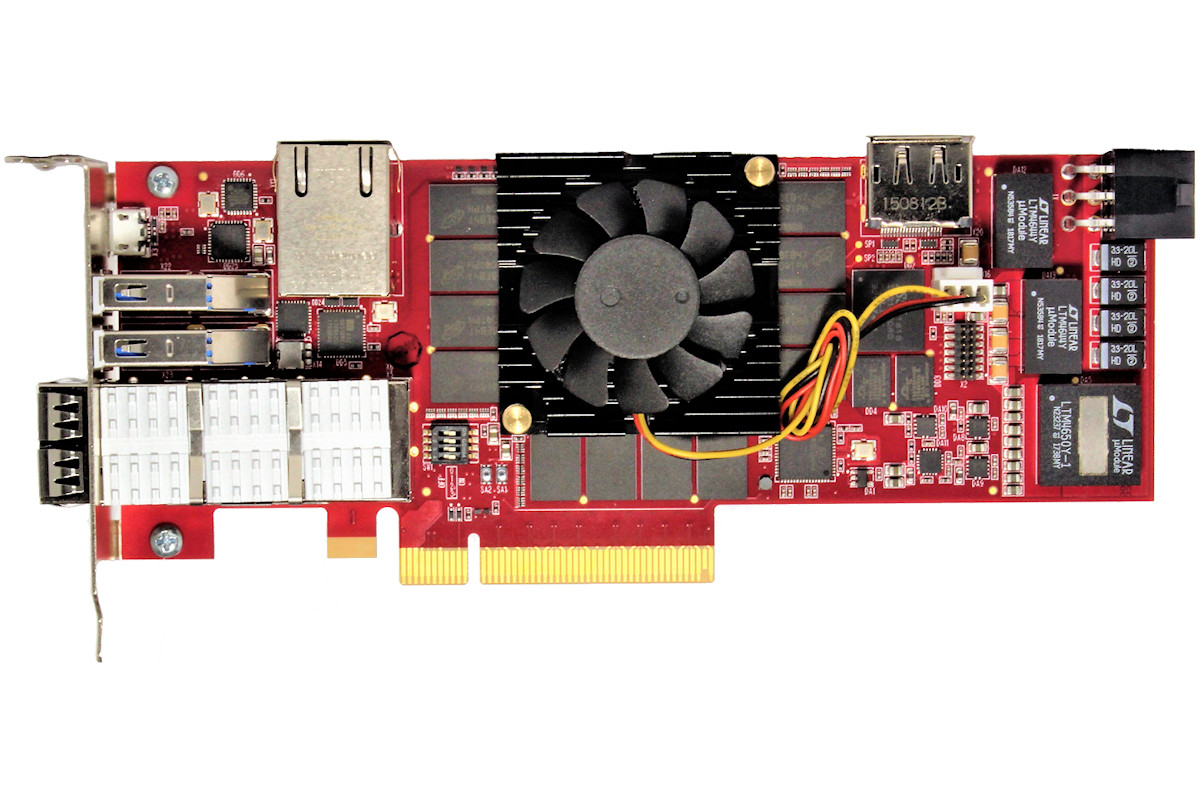

Solar Express 125

  • Xilinx XCZU7EV-2FFVC1156 MPSoC, with optional XCZU7CG, or XCZU7EG units instead;
  • QSFP+ Connector for 4 channel of 10GbE optic, or 40GbE
  • PCIe x8 Gen.4 with SMBus for PC connectivity and firmware upgrade;
