On this page you find details of hardware, software, firmware and system solutions currently under development. These may be at different stages of development and if in the earlier stages then it may be possible to make changes to the specification to more closely suit your requirements. Please contact us for details and a discussion of your project needs.
SE300 RF MIMO Solution
- Main Unit – PolarFire SOC FPGA from Microchip (MPFS460T-FCG1152);
- Slave units – PolarFire FPGA MPF500T-FCG1152;
- Flexible clock tree with JESD204B capability, based on HMC7044;

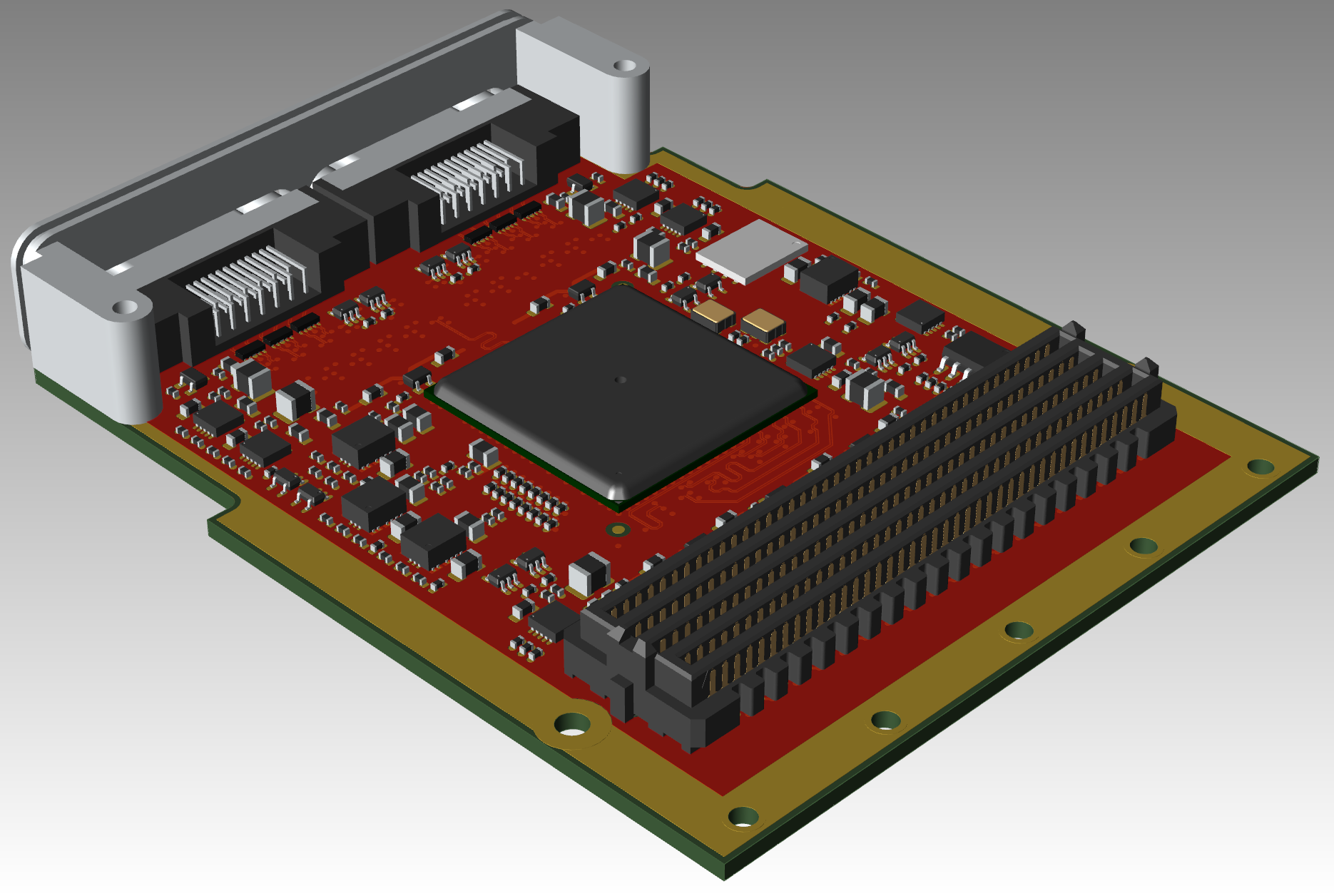

The Polar-VPX is the first 3-U VPX form factor SOSA aligned board on the market featuring a Microchip MPFS460T-1151FCG. This board offers ample I/O to the backplane and a front panel accessible FMC+ connector making the board a fantastic choice for anyone wanting to harness the capabilities of a Polarfire SOC FPGA for development or deployment applications.

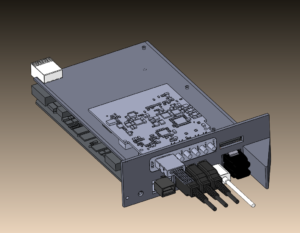

PXIe840 is based on Xilinx/AMD Zynq Ultrascale+ MPSoC, in the FFVC1156 package. All the devices in that package can be populated on this board. The power is drawn from the PXIe chassis. The module offers an FMC+ site and a QSFP+, which are available at the front panel. Without the IO card, it takes only one slot.
PXIe-720 hardware is a PXIe format FPGA card with an 8-lane PCIe interface, and an HPC FMC+ daughter card connector.

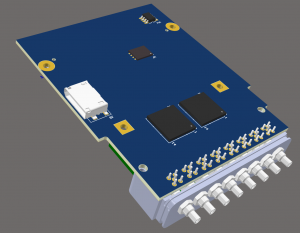

The FMC-ADC500CD is a HPC FMC card with 4 channels of ADC with 1GSPS sampling and 16-bit resolution and 4 channels of DAC with 2.8GSPS sampling and 16-bit resolution. The ADC and DAC are interfaced via JESD204B.
The PXIe-PCIe8 is an adapter card for PXIe boards to work in PCIe slots. This board offers 8 lanes of PCIe connection, SMBus interface via a pin header, and oscillators for PXIe clocks. Additionally, the board features a 6-pin power connector so that a PXIe board can be used as standalone.
