PCIe104Z-FMC-interposer

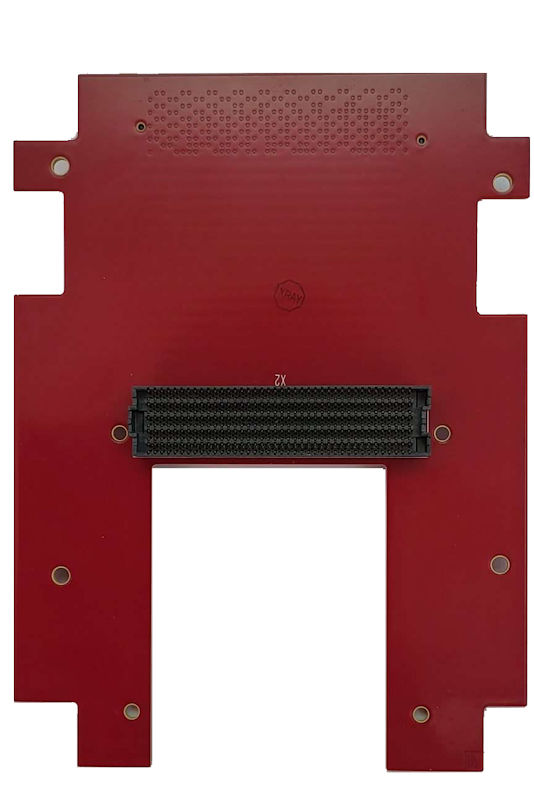

This is a PCIe104 form factor riser or inter-poser card for use with PCIe104Z module. When added to a PCIe104Z it facilitates the attachment of an FMC card to the carrier.



 Features

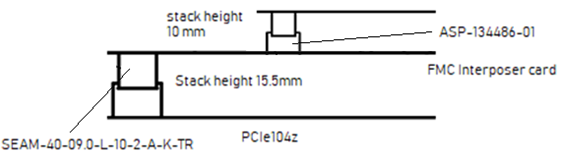

Raises the height of the FMC connector and its orientation so an added FMC can line up with the PCIe104Z envelope.

  1. PCIe104Z-FMC-interposer-simple                   –  a simple riser for adding FMC card to PCIe104Z
