Virtex5 FPGA PMC / XMC with 4 Channels of ADC

DSP464 Top

DSP464 is a quad channel ADC module in a conduction cooled PMC/XMC format with a powerful 1 GHz PPC processor(MPC8548E) from freescale, 512MB of DDR2 SDRAM and a large FPGA (Virtex-5 XC5VSX95T-FF1136 or XC5VLX110T / XC5VFX100T) from Xilinx. This versatile module is based on the Linear Technology’s LTC2208 16-bit A/D converter. An extremely flexible clock distribution circuit based on AD9510 adds capabilities like system-wide synchronous clock, phase adjustment of the ADC and output clocks. On-board clock synthesis is based on AD9540 low jitter DDS clock synthesizer. Coupled with temperature compensated reference oscillator, the clock generation is able to provide sub-Hz frequency resolution down to 10Hz accuracy.

Features

  • Single width PMC/XMC mezzanine card
  • Freescale MPC8548E 1GHz PowerPC processor
  • Xilinx Virtex-5 SX95T or LX110T FPGA
  • 4 banks of DDR2 SDRAM
  • Four 16-bit, 130 MS/s ADC’s
  • 133MHz PCI-x interface through PMC connectors
  • x8 lane PCIe interface through primary XMC connector
  • 8 GTP links connected to secondary XMC connector
  • Available in Forced air and Conduction cooled format
  • Linux and Windows XP support packages

Applications

  • Radar /Sonar
  • Data logging
  • Beamforming
  • Data encryption

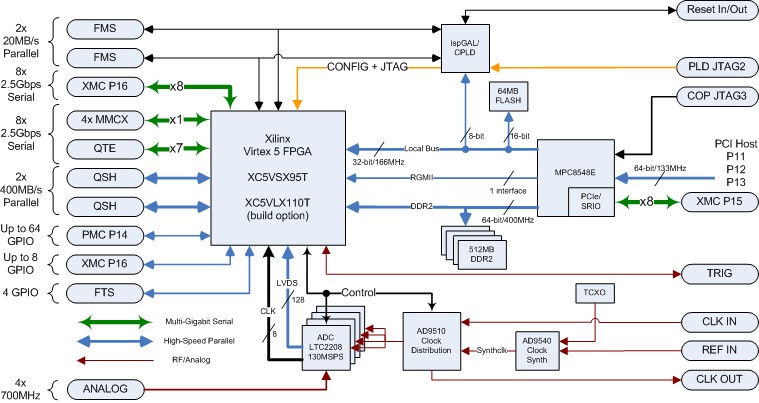

 Block Diagram

DSP 464 Block Diagram

Additional Images

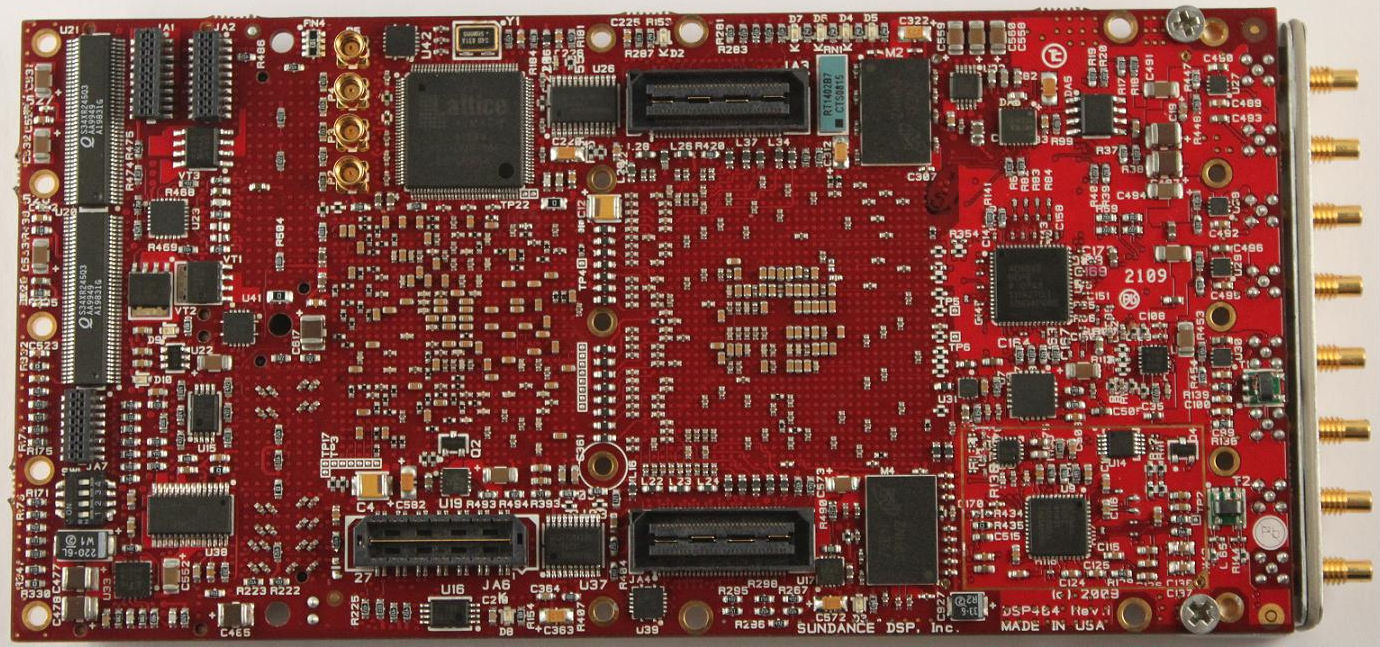

DSP464_Bottom
