The DataLogger 400 is a flexible solution for high-speed RF measurement, communication, and processing. It is based on SE120 and FMC-ADC500CD. The FMC modules offers 4 channels of ADC and 4 channels of DAC. The ADC channels can be AC or DC coupled on the fly.
This is a PCIe solution so card can be inserted into a suitable a host PC PCIe slot or connected to host via a Samtec PCIe to PCIe cable. It can also be used as an deskto solution by providing external 12V power through its 6PEG connector.
For details of DL400 please follow the link.
Features
- 4 channels of ADC up to 1GS/s, 16bits
- 4 channels of DAC up to 2.8GS/s 16 bits
- powerful AMD based Zynq Ultrascale+ MPSoC in C1156 package XCZU11EG-2FFVC1156E
- FMC interface
- PCIe form factor
Applications
- Data logging MIMO systemDefense and Aerospace
- Diversity multiband, multimode digital receivers
- 3G/4G, TD-SCDMA, W-CDMA, GSM, LTE, LTE-A
- Electronic test and measurement systems
- Phased array radar and electronic warfare
- DOCSIS 3.0 CMTS upstream receive paths
- HFC digital reverse path receivers

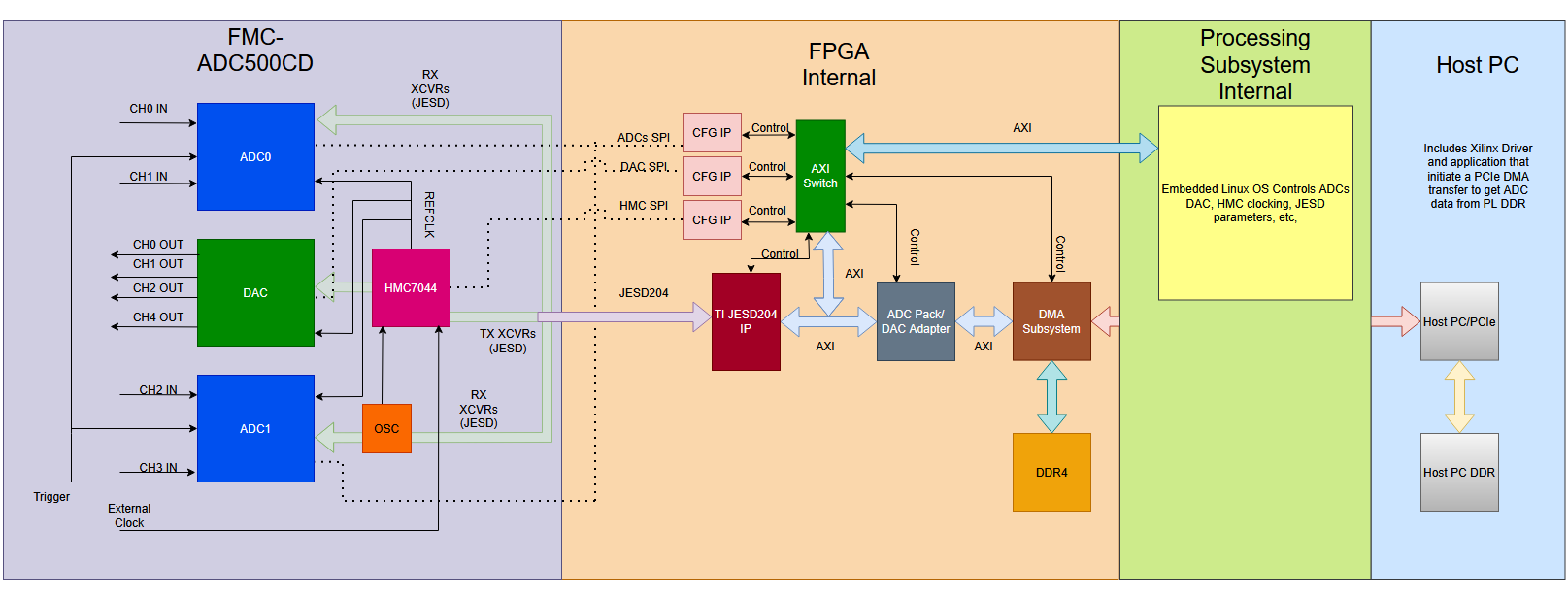

System Block Diagram

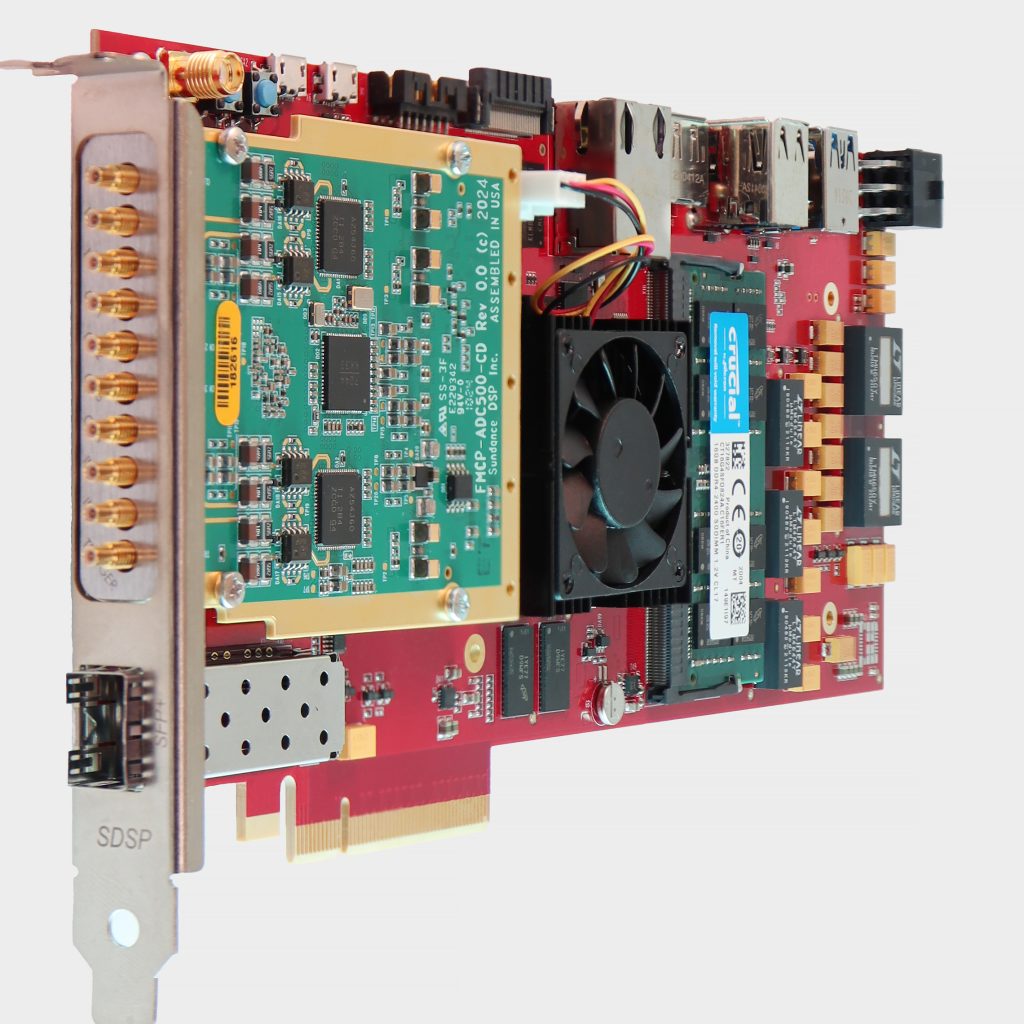

SE120 with attached FMC-ADC500CD
A complete BSP with capture of ADC data channels and transmission of DAC signals is provided. Application includes transferring and saving data to a host PC via PCIe bus or to an attached SATA disk and/or transfer over Ethernet connection.
For pricing an availability of this product please contact Sundance sales team.
