| Model name | IBOX-NVC0 |
| System | |
| CPU | Arm® Cotex®-A57 QC 1.43GHz/5-10W (Jetson NANO) Carmel Arm® v8.2 6C 1.9GHz/10-20W (Xaiver NX) |
| GPU | 128-core NVIDIA Maxwell GPU up to 472 GFLOPs (Jetson NANO) 384-core NVDIA Volta GPU w/48 Tensor Cores up to 21 TOPs (Xaiver NX) |
| System memory | LPDDR4 64 bit 4GB on Module (Jetson NANO) LPDDR4 128 bit 8/16GB on Module (Xaiver NX) |
| I/O | |
| USB | 4 x USB 3.0 |
| COM | 1 x RS232/1 x UART/1 x CAN (optional) |
| LAN | 1 x LAN |
| Audio | N/A |
| Storage Support | |
| HDD | 16 GB eMMC on Module, Micro SD Card slot |
| Expansion | |
| Mini-PCIe | 1 x M.2 E-Key 2230 support WiFi (Xaiver NX only) |
| Power | |
| Power supply | DC 12V input, 2P Phoenix connector |
| Environmental | |
| Operating Temperature | -10°C ~ 60°C with 0.5m/s air flow |
| Storage Temperature | -20°C ~ 80°C |
| Relative Humidity | 0% ~ 90% (non-condensing) |
| Mechanical | |
| Construction | Aluminum extrusion and heavy-duty steel |
| Standard color | Dark Gray |
| Weight | 600g |
| Dimensions | 108mm(W) x 96mm(D) x 49mm(H) |
Features
-

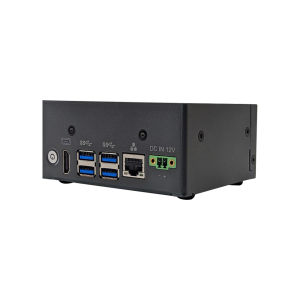

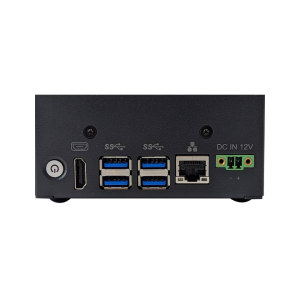

Fanless Box system with NVIDIA® Jetson® NANO/NX, HDMI/4USB/LAN DC12V
-
NVIDIA® Jetson NANO/Xaiver NX Module Computer
-
Dual Display: HDMI/LVDS (Internal IO)
-
1 HDMI, 4 USB3.0, 1 LAN , COM/UART/ CAN (optional)
-
DC 12V input with phoenix connector
-
Wide temperature: -10°C ~ 60°C
-
Compact edge AI computing
Applications
- Artificial Intelligence
- Artificial Reality / Virtual Reality ( AR/VR)
IBOX-NVC0
