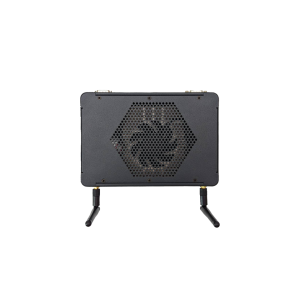

Model name | IBOX-NVC2 |
System | |
CPU | Arm® Cotex®-A78AE v8.2 8C 2.2GHz 40W |
GPU | 1792-core NVDIA Ampere GPU w/56 Tensor Cores up to 200 TOPs |
System memory | LPDDR5 256 bit 32GB on Module |
I/O | |
USB | 3 x USB 3.2 (1 USB Type C) |
COM | 2 x COM (1 RS232; 1 RS422/485), 2 x CAN (isolation), 1 x SIM |
LAN | 2 x LAN |
Audio | 1 x line out ; 1 x Mic in |
Storage Support | |
HDD | 64GB eMMC ; Micro SD Card slot |
Expansion | |
Mini-PCIe | 1 x M.2 M-Key 2280 support NVM 1 x M.2 B-Key 3042/3052 (LTE 4G/5G) 1 x M.2 E-Key 2230 support WiFi |
Power | |
Power supply | DC 9-36V input, 4P Power Din |
Environmental | |
Operating Temperature | -25°C ~ 75°C |
Storage Temperature | -40°C ~ 85°C |
Relative Humidity | 0% ~ 90% (non-condensing) |
Mechanical | |
Construction | Heavy-duty steel |
Standard color | Dark Gray |
Weight | 1.6Kg |
Dimensions | 181mm(W) x 123.1mm(D) x 83mm(H) |
Features
- Fan Box system with NVIDIA® Jetson® AGX Orin, HDMI, 2CAN/3USB/ 2COM/2LAN(1 10GLAN) DC9-36V
- NVIDIA® Jetson AGX Orin Module Computer
- 1 HDMI, 3 USB3.2, 2 COM , 2 CAN w/ isolation
- Dual LAN with 1 10G / 1 Gigabit
- Wide Range DC9-36V input with power Din
- Wide temperature: -25°C ~ 75°C
Applications
- Artificial Intelligence
- Artificial Reality / Virtual Reality ( AR/VR)
IBOX-NVC2
