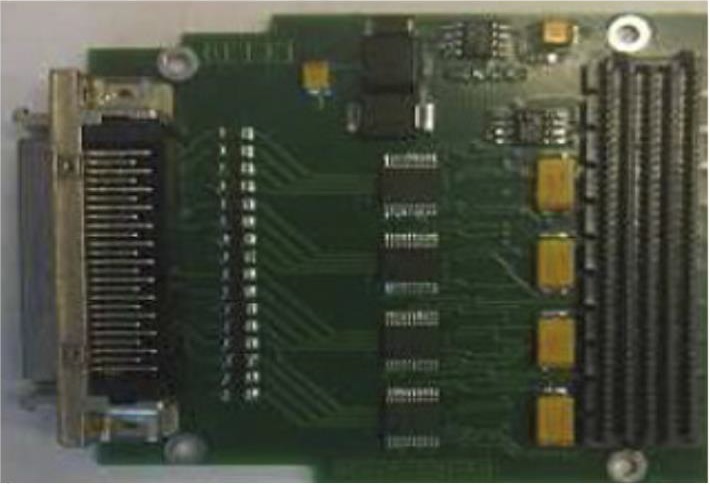

FMC-SER, is a VITA57 FPGA Mezzanine I/O module

The FMC-SER is a VITA57 FPGA Mezzanine module that provides Serial I/O function. The FMCSER is available with 4 or 8 Serial ports configurable in RS232/422 and RS485 the FMC specification was developed to enable FMCs to be supported on a wide range of existing form factors including but not limited to PCIe, VME, CompactPCI, VXS, VPX, VPX-REDI, AdvancedTCA and AMC. Up to three FMCs can be fitted on a 6U VPX carrier.


  • FMC LPC connector (Type HPC can also be mounted)
  • 4 or 8 configurable channels RS232/422/485
  • Front panel connector SCSI 50 pin
  • Baud Rate 10Mbps in RS485/422 mode, 1Mbps in RS232 mode
  • Slew rate software programmable, ESD 15KV



  • Military
  • Defense
  • Communications
  • Navigation
  • General Purpose

FMC-SER4                 FMC 4 channel configurable RS232/RS422/RS485

FMC-SER8                 FMC 8 channel configurable RS232/RS422/RS485
