EMC²-Z7030

PC/104 OneBank Board w. Xilinx Zynq Z7030 SoC FPGA

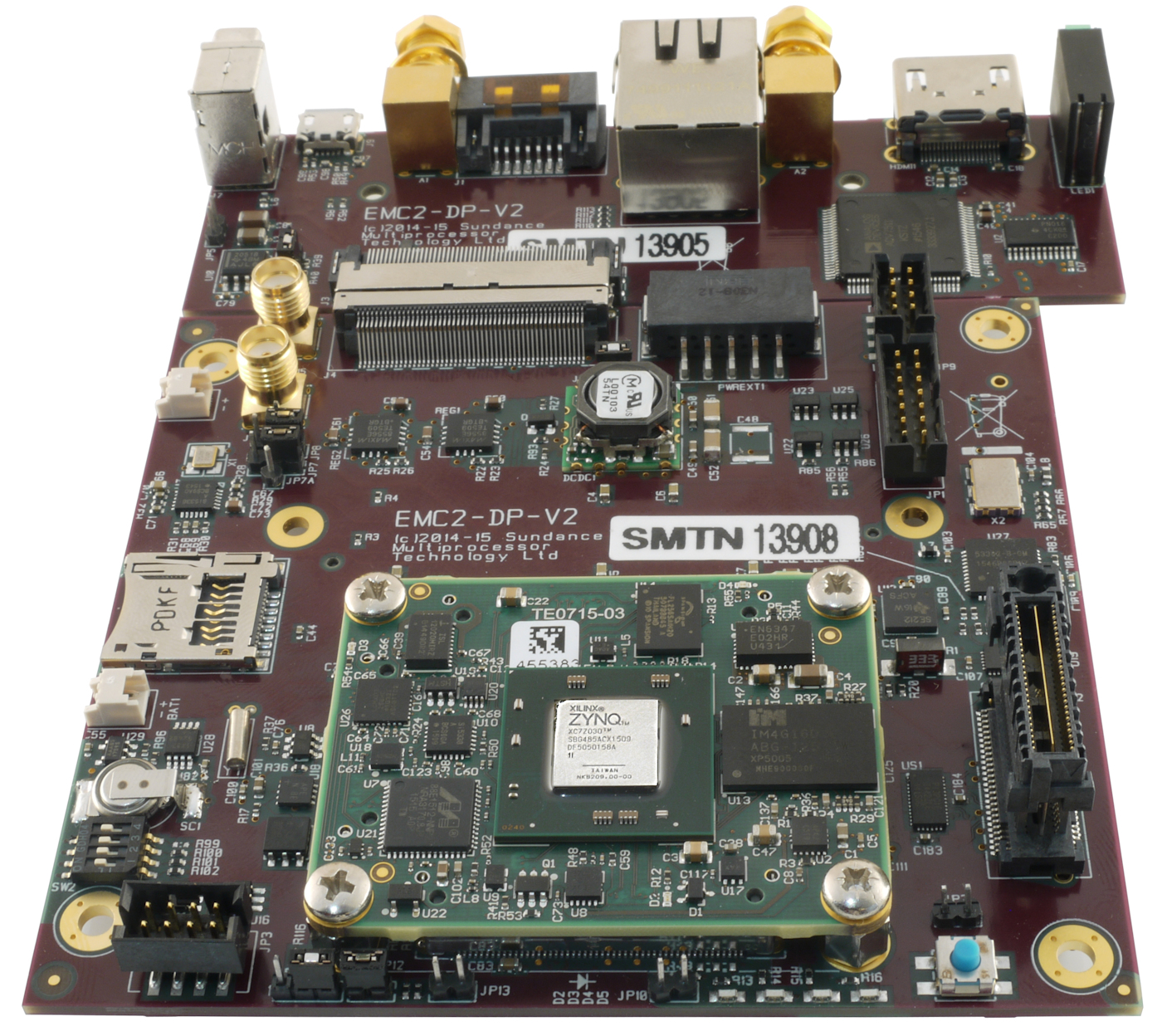

The EMC²-Z7030 is a PCIe/104 OneBank™ SBC with a Xilinx Zynq SoC and a VITA57.1 FMC™ LPC I/O board. The main processing power of the EMC²-Z7030 is a Dual Core ARM9 and combined with traditional FPGA fabrics/gates + High-Speed I/O interfaces, like USB2.0, HDMI, 1Gb Ethernet, and SATA and provide a total solution for any Embedded Application.

The PCIe/104 OneBank™ design enables the EMC²-Z7030 to be added to robust and rugged installations for various commercial, medical, industrial, and military uses, and to enable more versatility the EMC²-Z7030 also incorporates a VITA57.1 FMC™ LPC connector opening up a range of extra possibilities and expansion options.



Download Design Specification

Download IO pin list

Features

  • PCIe/104 OneBank SBC w. Dual 1GHz ARM9 & 1Gbyte DDR3
  • Xilinx Zynq SoC FPGA for I/O Interface and processing
  • Integrated 1Gb Ethernet, combined w. USB2, SATA-2
  • PCI Express Gen 2 compatible and integrate PCI Express switch
  • An infinite number of EMC²-Z7030 can be stacked for large I/O solutions
  • Expandable with any VITA57.1 FMC I/O Module for more flexibility
  • 96mm x 90 mm PC/104 Form-Factor with Cable-less Break-Out PCB Connector
