PCIe104-RFSOC

By sundancedspJuly 28, 2020ADC and DAC, PCIe104

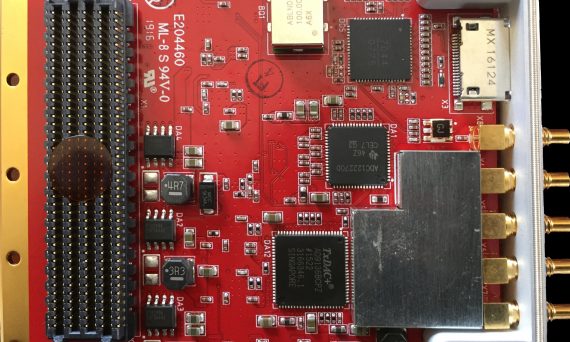

FMC-DAQ2p5, ADC and DAC FMC module,

By sundancedspSeptember 5, 2016ADC and DAC, FMC

FMC-DAQ2P5 is a JESD204B compliant module.

1 x ADC 12 bits @ 2.7 GSPS
2 x DAC 16 bits @ 2.8 GSPS
High Pin Count ( HPC ) FMC module
PXIe, PCIe, Stand-Alone … platforms
External Clock up to 4 GHz
100 MHz on-board VCXO

DSP464

By sundancedspFebruary 8, 2016ADC and DAC, PMX / XMC, Virtex5FPGA, MIMO

Conduction cooled Virtex-5 FPGA PMC/XMC module in FF1136 package, 16-bits 130MSPS Quad Channel ADC and Freescale MPC8548E processor supporting PCI-X, PCIe and PPC at 1GHz.

Dual RF MIMO

By sundancedspFebruary 8, 2016ADC and DACFPGA, MIMO

Dual channel RF module with 12bits digital IQ ADCs with a Virtex 5 FPGA (XC5VFX70T or XC5VFX100T) for processing. The system has a standalone carrier card with USB interface to host PC for application development. The solution also offers two dual-band 50 Ohm antenna ports for each channel.
