– Auxiliary boards and cables

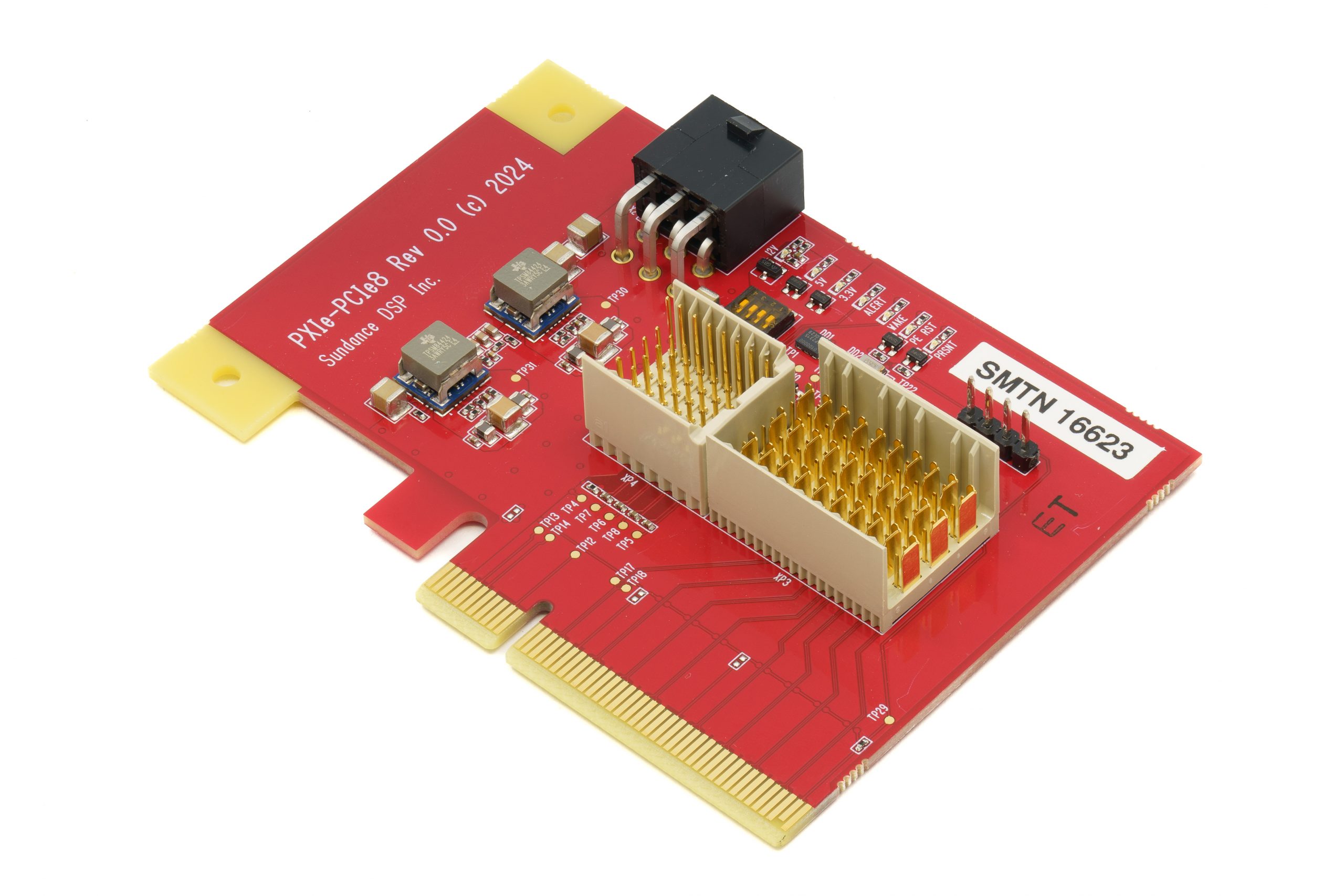

PXIe-PCIe8

PXIe-to-PCIe adapter card. Facilitates connection of a PXIe card to PCIe host via this adapter and a PCIe to PCIe cable. Simplifies development by attaching a standard desk top computer or standalone.

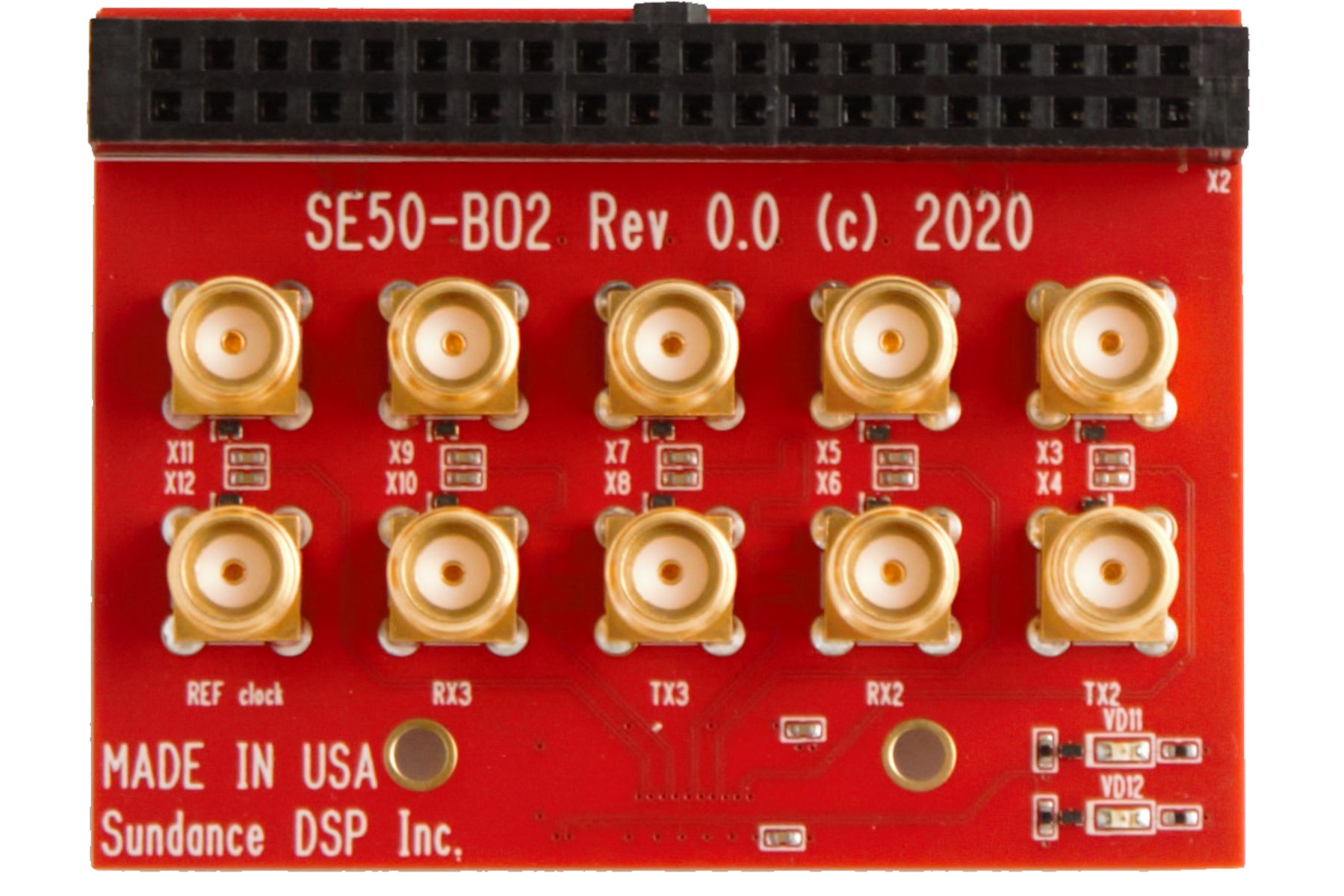

SE50 Break Out Board

SE50 Break Out board is  to simplify interface to the IO connections supplied by SE50 mini-PCIe card. It provides RF type connectors for faster signals and rectangular IDC connector for other IOs. A flexi cable comes with the module to extend its location and to create easier access. The BO board can be directly connected to SE50 without using the flexi cable.

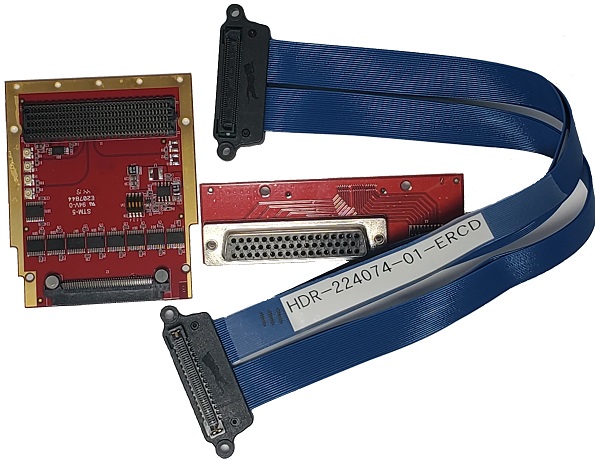

FMC-GPIO68  Break Out Board

FMC-GPIO68-BO board is designed for easy access to FMC-GPIO68 IO pins. A Samtec cable is also available to extend the reach.

FMC-RSxxx-DB9 Break Out Board

A break out board and cable to simplify interfacing to the FMC module by offering 9 DB9 connectors for splitting the RSxxx interfaces.

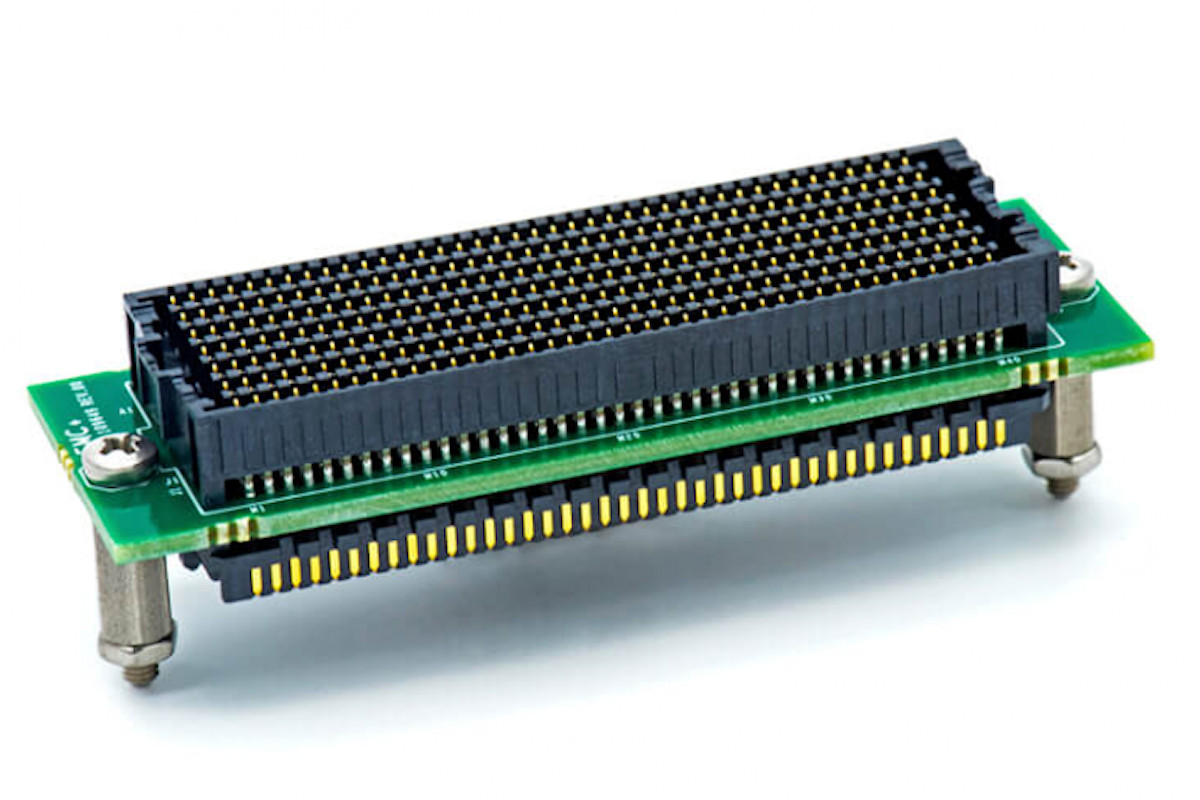

VITA 57.4 FMC+ Extender Card

Engineers prototyping with industry-standard FPGA evaluation and development kits often leverage the FMC+ interface for I/O expansion that fits their application needs. In some cases, the mating height of the standard FMC+ connectors may prevent fully leveraging the connectivity options of all FMC+ modules.

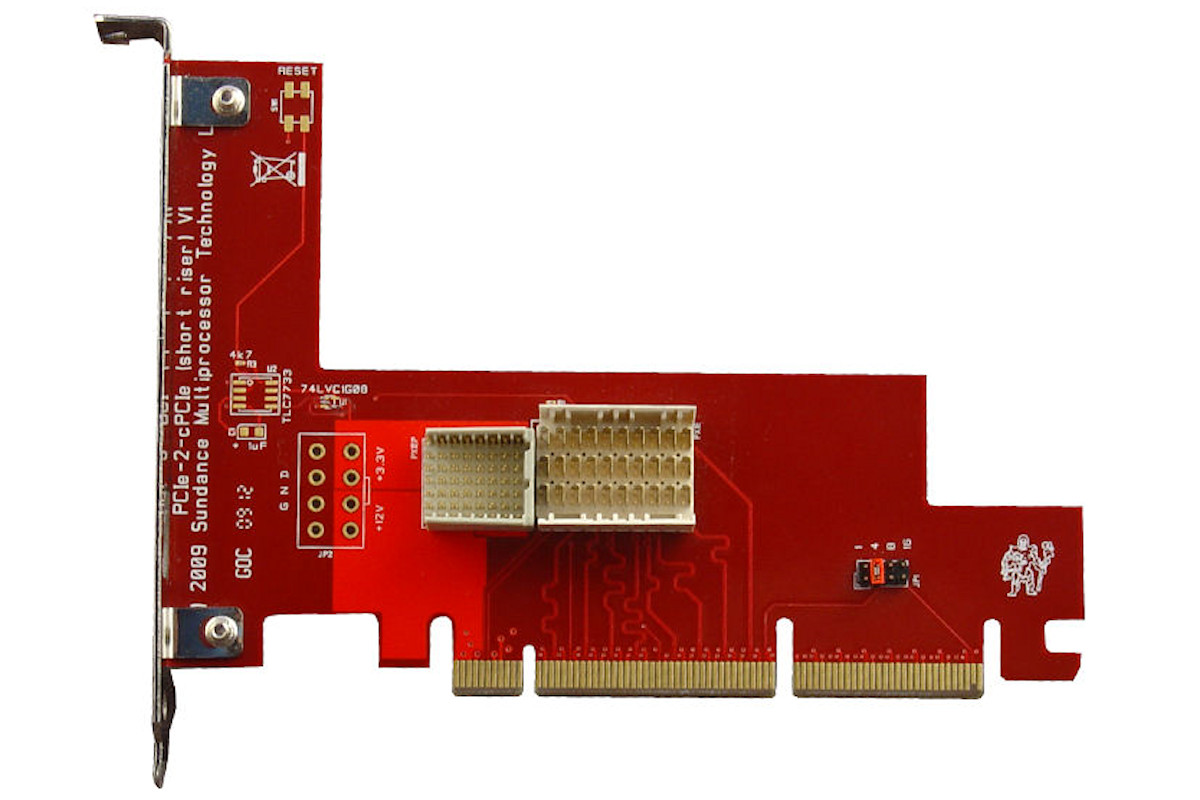

SMT580

PXIe-to-PCIe adapter card.

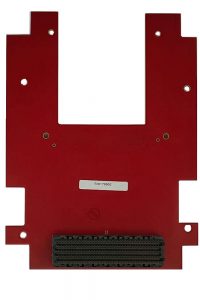

PCIe104Z-FMC-Intereposer

An interposer between PCIe104Z and an FMC module

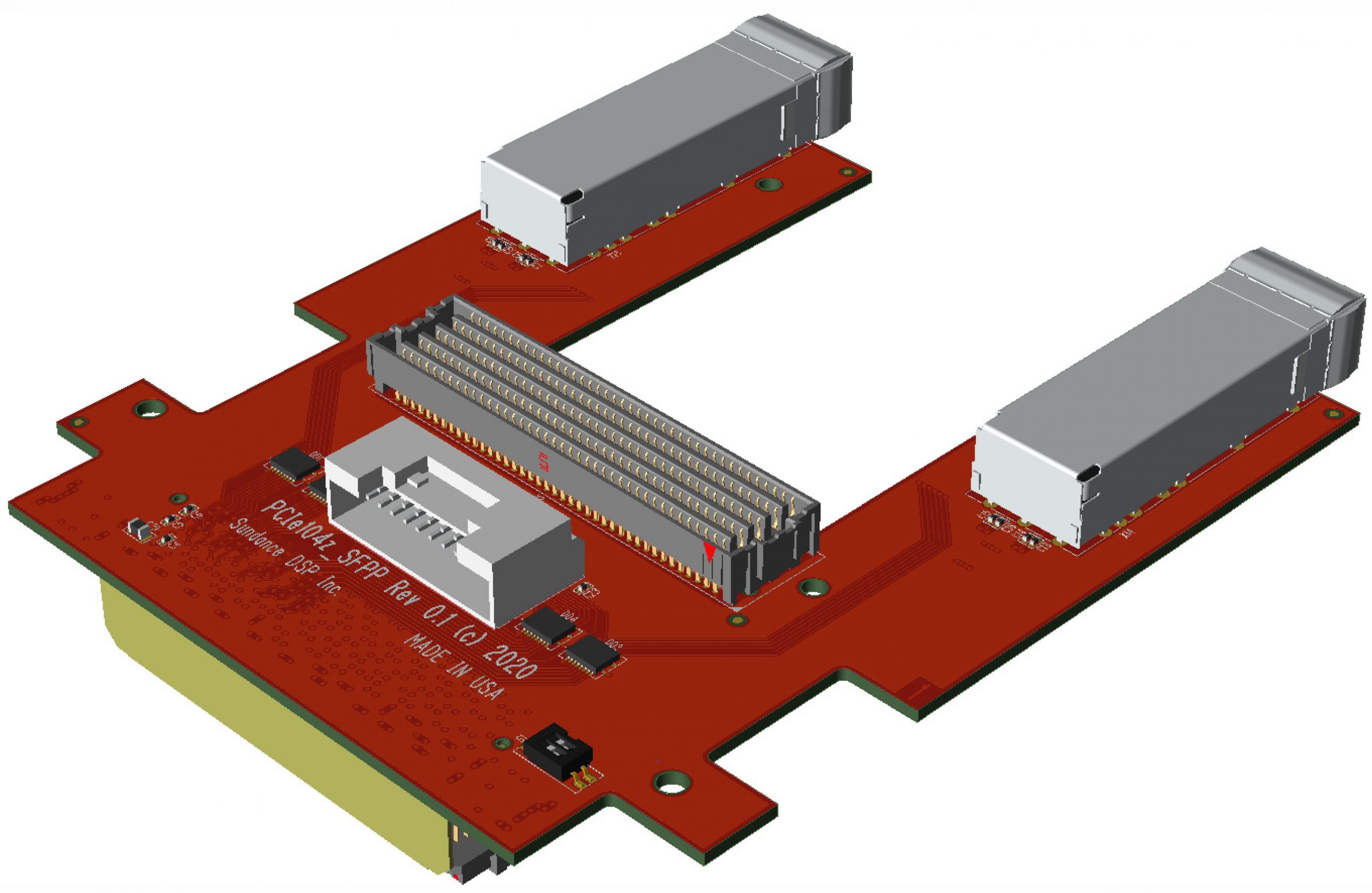

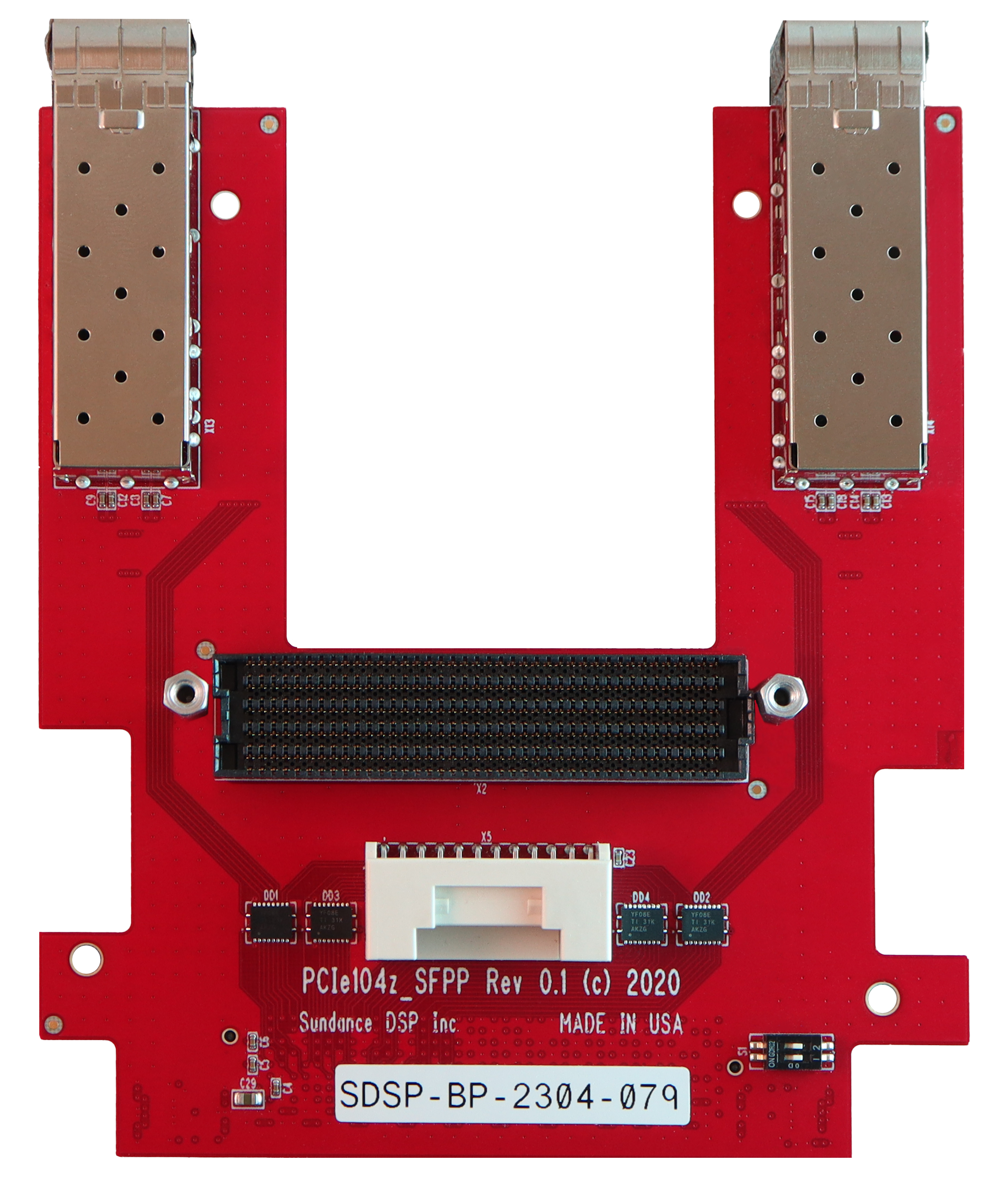

PCIe104Z-FMC-Interposer-SFPP

An interposer between PCIe104Z and an FMC module with SFPP and GPIO interfaces

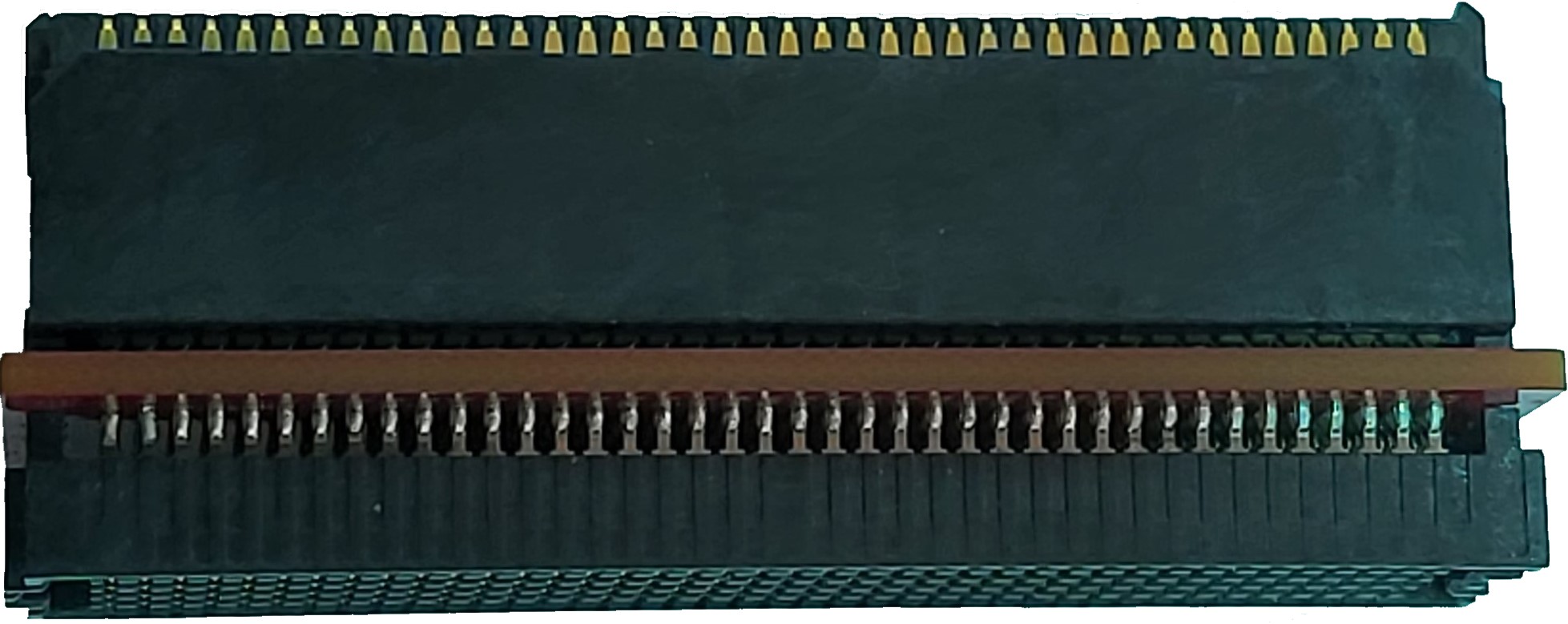

FMC+ module  to FMC module adapter Card

This adapter allows an HPC FMC+ module to be able to connect to carriers with an HPC FMC connector. This is useful when the target IO module is in FMC+ format but the available carrier only offers a FMC interface.

VPX-to-PCIe

The VPX-to-PCIe is a 3U conversion card for OpenVPX boards to PCIe. The conversion card features various headers and interfaces that allow for OpenVPX boards to be easily tested without the need for a chassis. The VPX-to-PCIe is available in multiple slot profiles for OpenVPX.
