PCIe104

PCIe104Z+

Based on the Xilinx Zynq UltraSCacle+ MPSoC family. This hardware is in PCIe104 form factor and adheres to its latest specification. It offers 4 Gen 2.0, x1 lane PCIe interfaces through a switch that allows 4 PCIe104 cards to be connected to the ARM on the Zynq which acts as the host. It includes a full FMC+ interface for expansion.

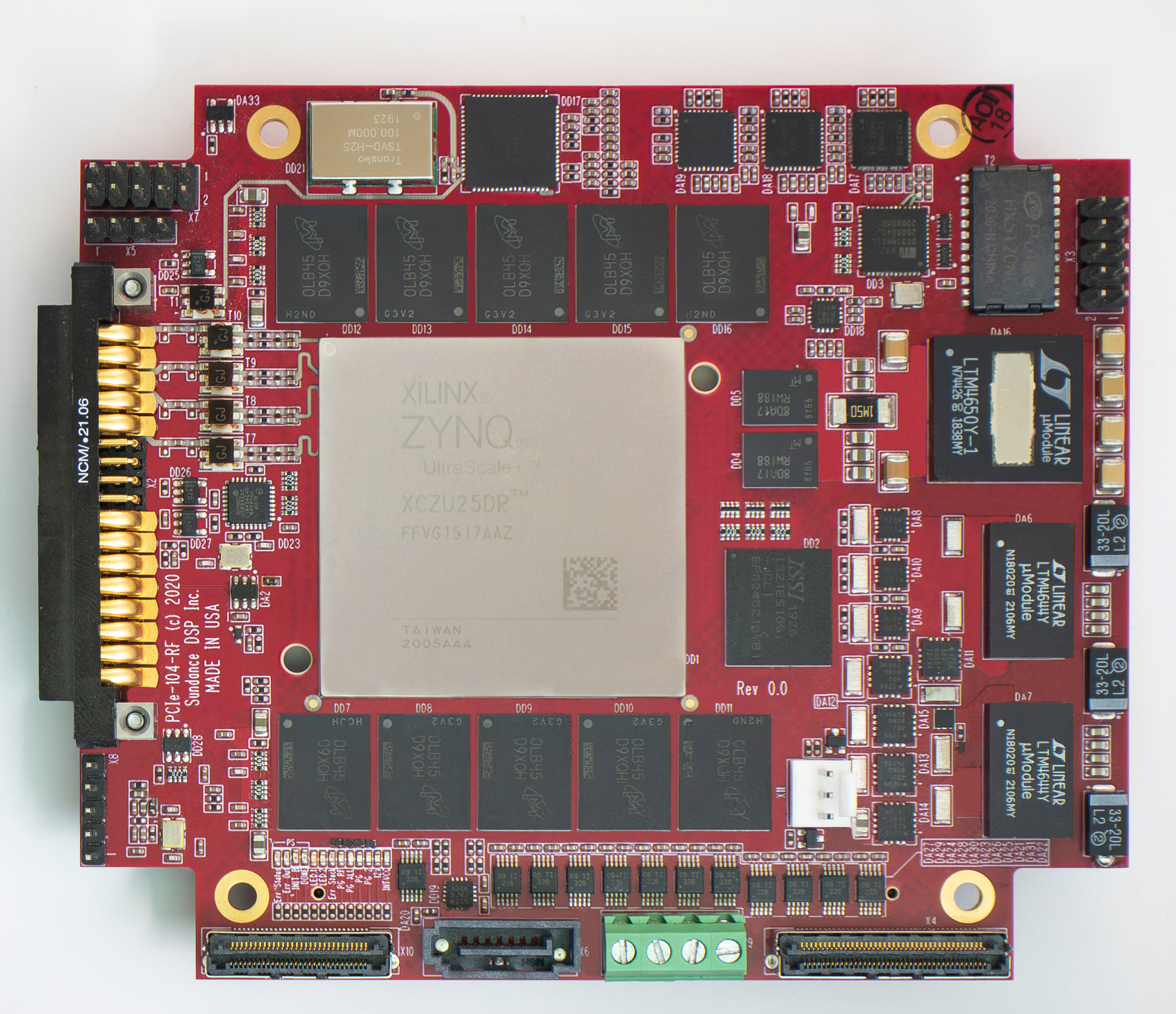

PCIe104 RFSOC

Utilizing the Xilinx XCZU27DR-2FFVG1517 RFSOC device, this module offers compact PCIe104 based solution offering 8 ADC and DAC channels. The module could also be used a SOM within customer design. PCIe104-RFSOC acts as a SBC host also.

PC104P

PC104P based on MPF500T-1FCG1152 – compatible with PCIe104 type 2,3 and StackPC hosts. PCIe x4 Gen2 as EP; includes FMC HPC Vita 57.1 connector for functional extension with all lanes, except HB.

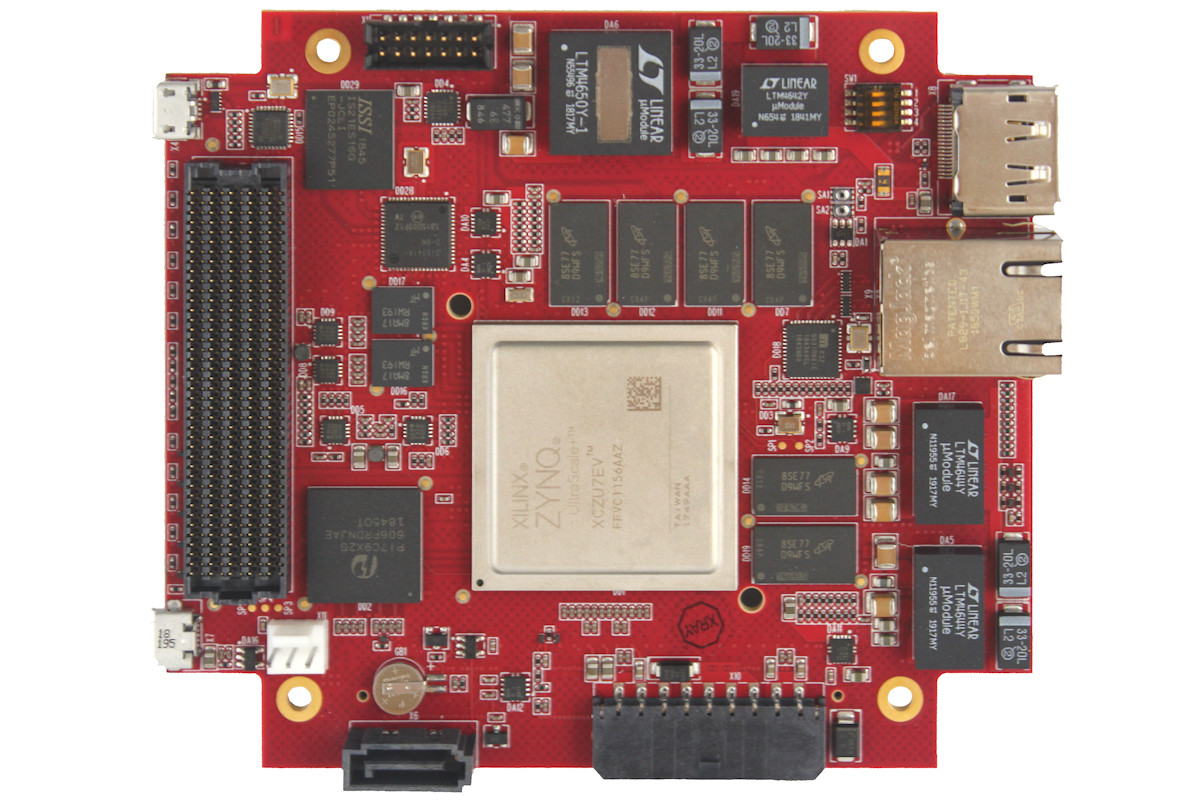

PCIe104Z

Based on the Xilinx Zynq UltraSCacle+ MPSoC family. This hardware is in PCIe104 form factor and adheres to its latest specification. It offers 4 Gen 2.0, x1 lane PCIe interfaces through a switch that allows 4 PCIe104 cards to be connected to the ARM on the Zynq which acts as the host.

PCIe104N

  • Small size footprint conforming to PCI104-Express standard
  • Low power, instant ON Polarfire FPGA
  • 4 Lanes of  PCIe
  • 104 IOs to the mezzanine card, 63 are 5v tolerant

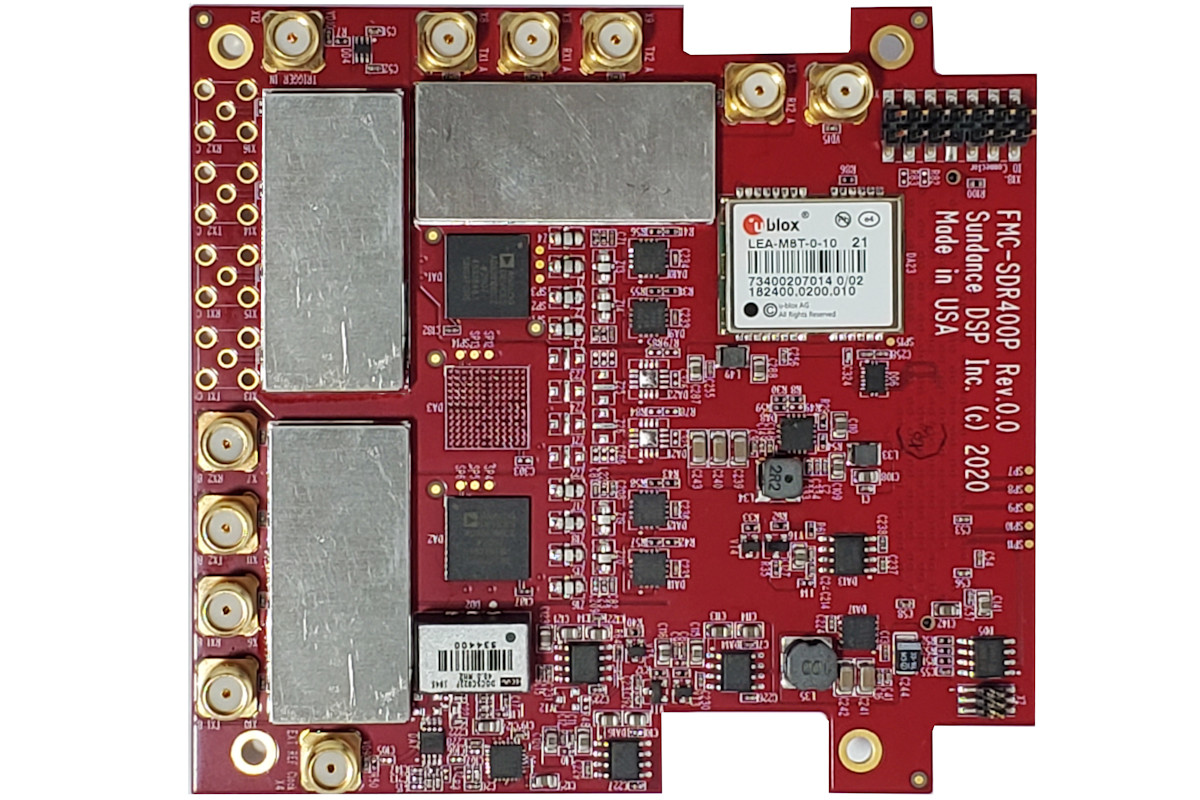

FMC-SDR400P

  • Small size PCI104 footprint; without PCIe104 connector
  • Electrically compliant to Vita 57.1 FMC standard
  • 6 channels of RF from 70MHz to 6GHz
  • Based on ADI 9361

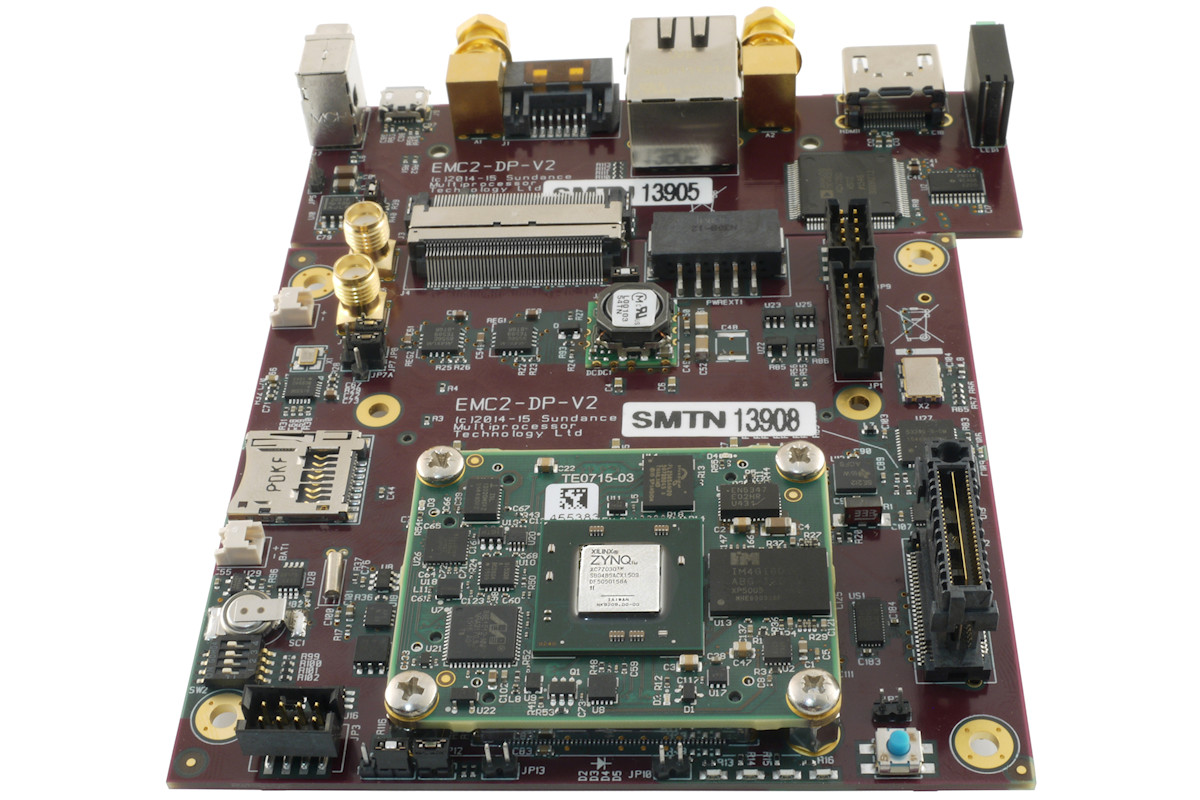

EMC²-Z7030

  • PCIe/104 OneBank SBC w. Dual 1GHz ARM9 & 1Gbyte DDR3
  • Xilinx Zynq SoC FPGA for I/O Interface and processing
  • Integrated 1Gb Ethernet, combined w. USB2, SATA-2

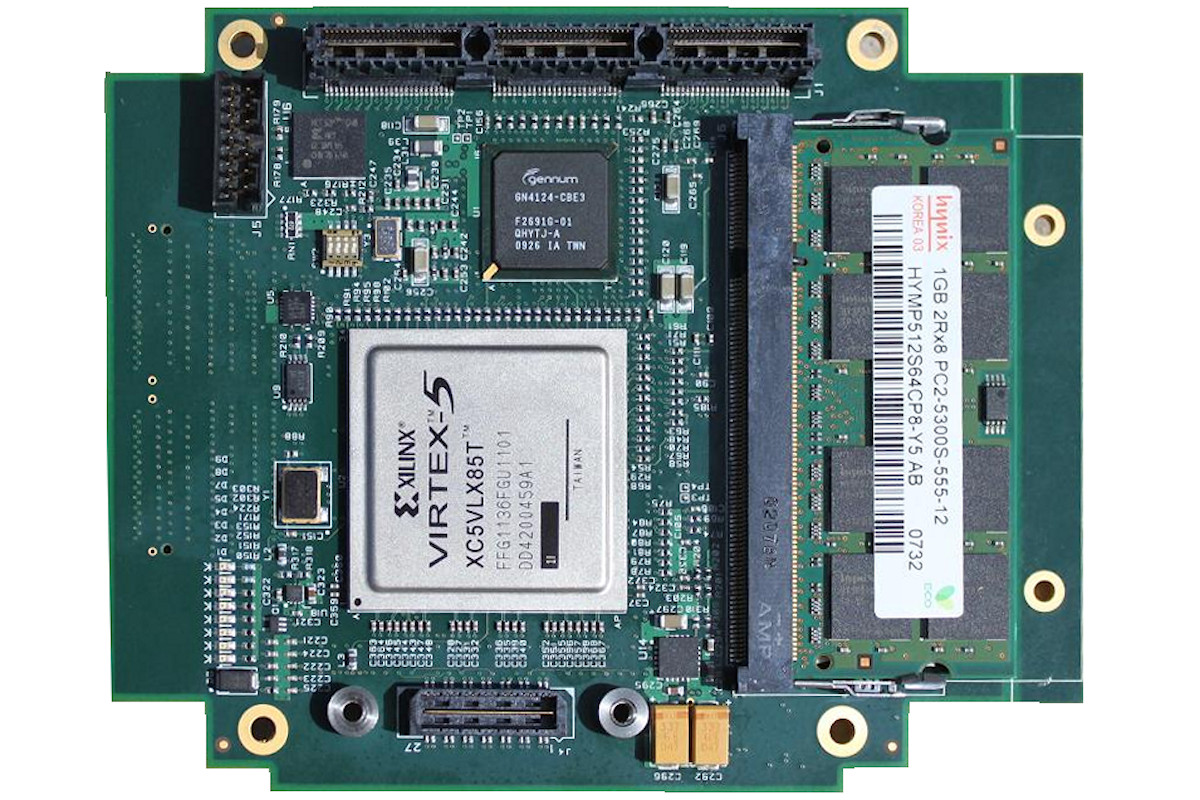

DSP-PCIe/104

  • Small size footprint conforming to PCI104-Express standard
  • Powerful Virtex-5 FPGA (XC5VLX85T-FFG1136)
  • 1 Lane PCIe
  • 104 IOs to the mezzanine card, 63 are 5v tolerant

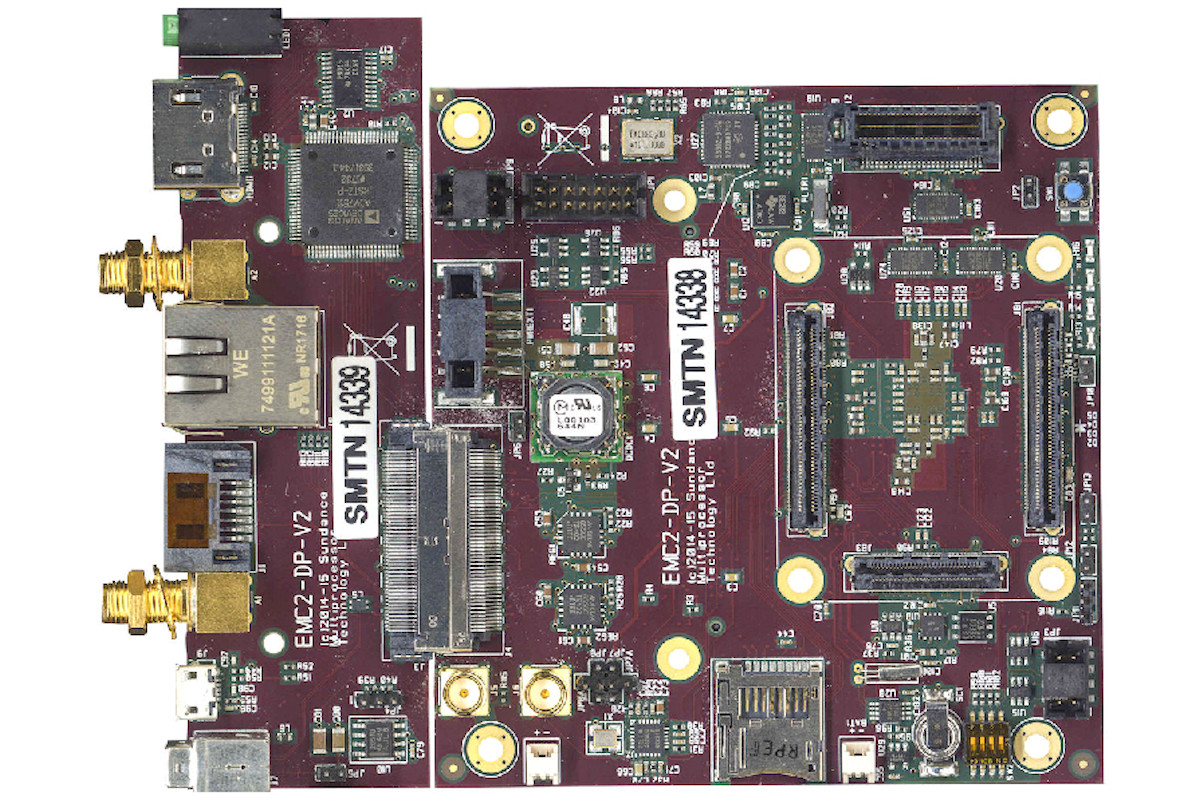

EMC²-DP

  • PCIe/104 OneBank Carrier for Trenz SoC Modules
  • PCI Express Gen 2 compatible and integrate PCI Express switch
  • An infinite number of EMC²-DP can be stacked for large I/O solutions

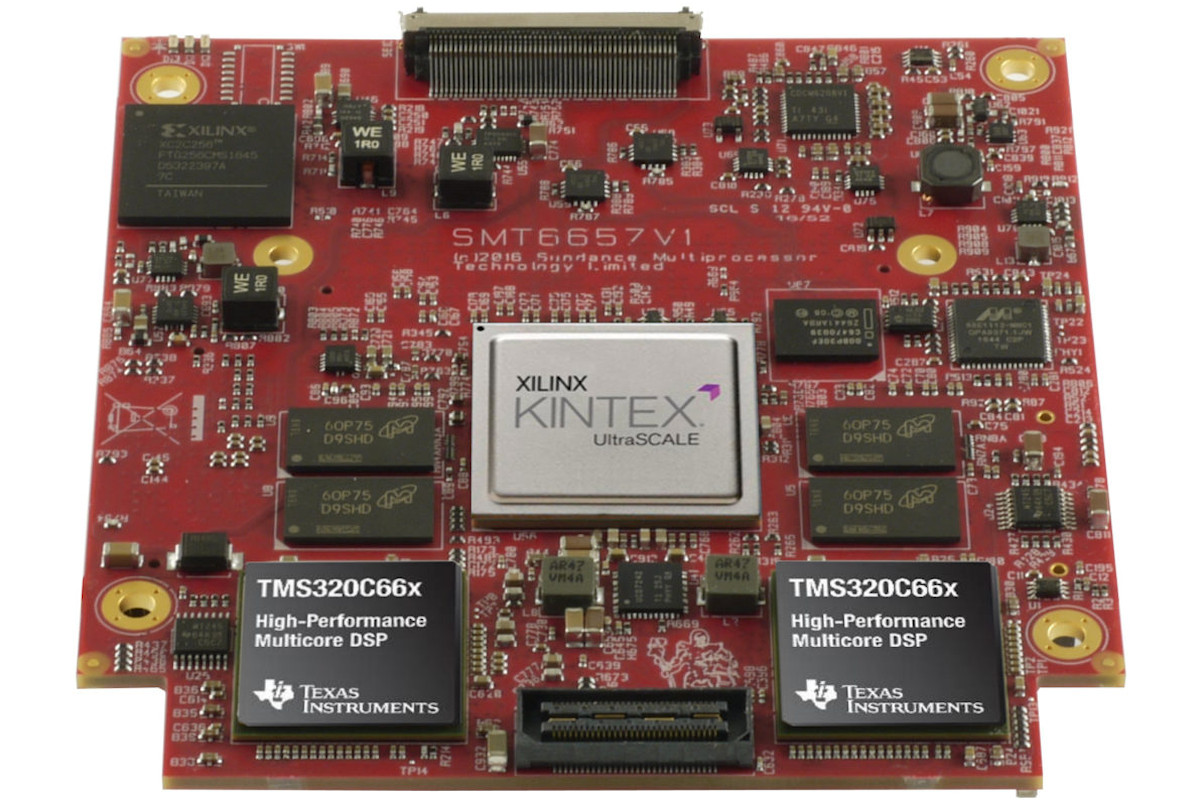

SMT6657-KU35

  • PC/104 OneBank™ plug-able module format
  • Two Texas Instrument dual-core TMS320C6657 floating-point DSPs, running @ 1.24 GHz
  • Xilinx Kintex-7 UltraScale KU35 series of FPGA w. 16x GTH transceivers

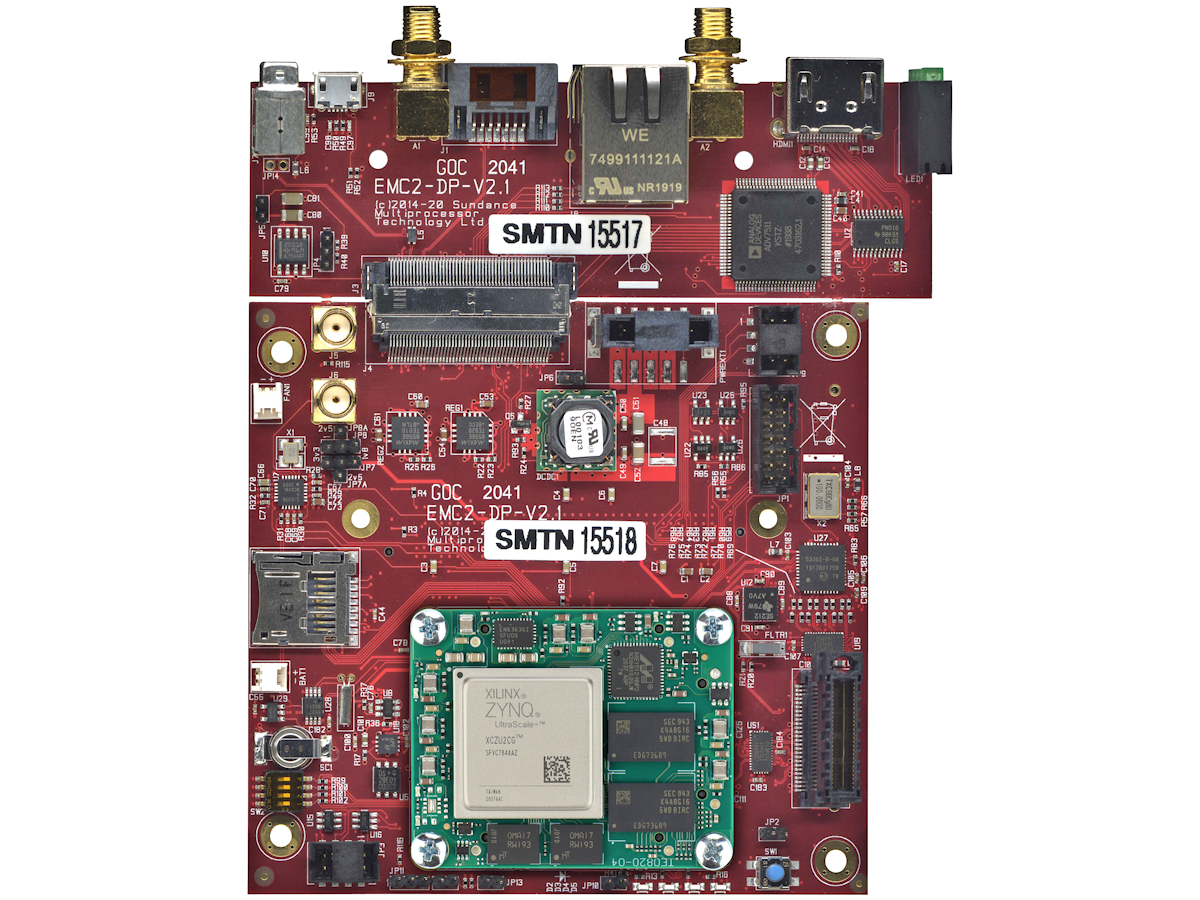

EMC²-ZU2CG

This system comprises an EMC²-DP and a Trenz Electronic SoM, namely the TE0820-05-2AI21MA

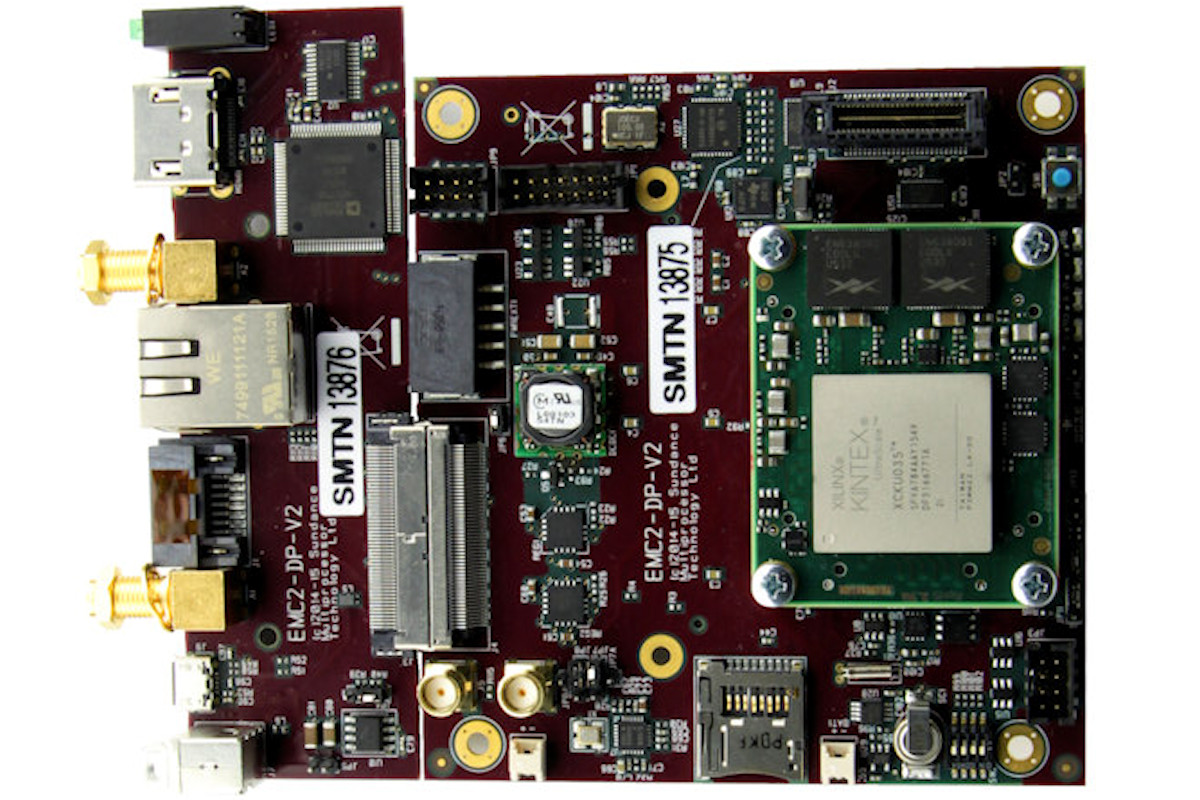

EMC²-KU35

  • PCIe/104 OneBank I/O board
  • Xilinx Kintex UltraScale KU35 SoM for I/O Interface and processing
  • PCI Express Gen 2 compatible and integrate PCI Express switch
  • An infinite number of EMC²-KUxx can be stacked for large I/O solutions
