SE300 multi-FPGA Solution

Please note the design of this product is complete including the BSP. The product will need to be assembled before delivery.

SE300 is a multi purpose embedded multi-FPGA solution with flexible clocking and 4 FMC+ interfaces. It can be a scalable  MIMO solution populated with ADC and DAC FMC+ modules like Sundance DSP FMCP-ADC3p0 and FMCP-DAC12p0. It has the capability of capturing/processing data over long distances using the Firefly(c) from Samtec.

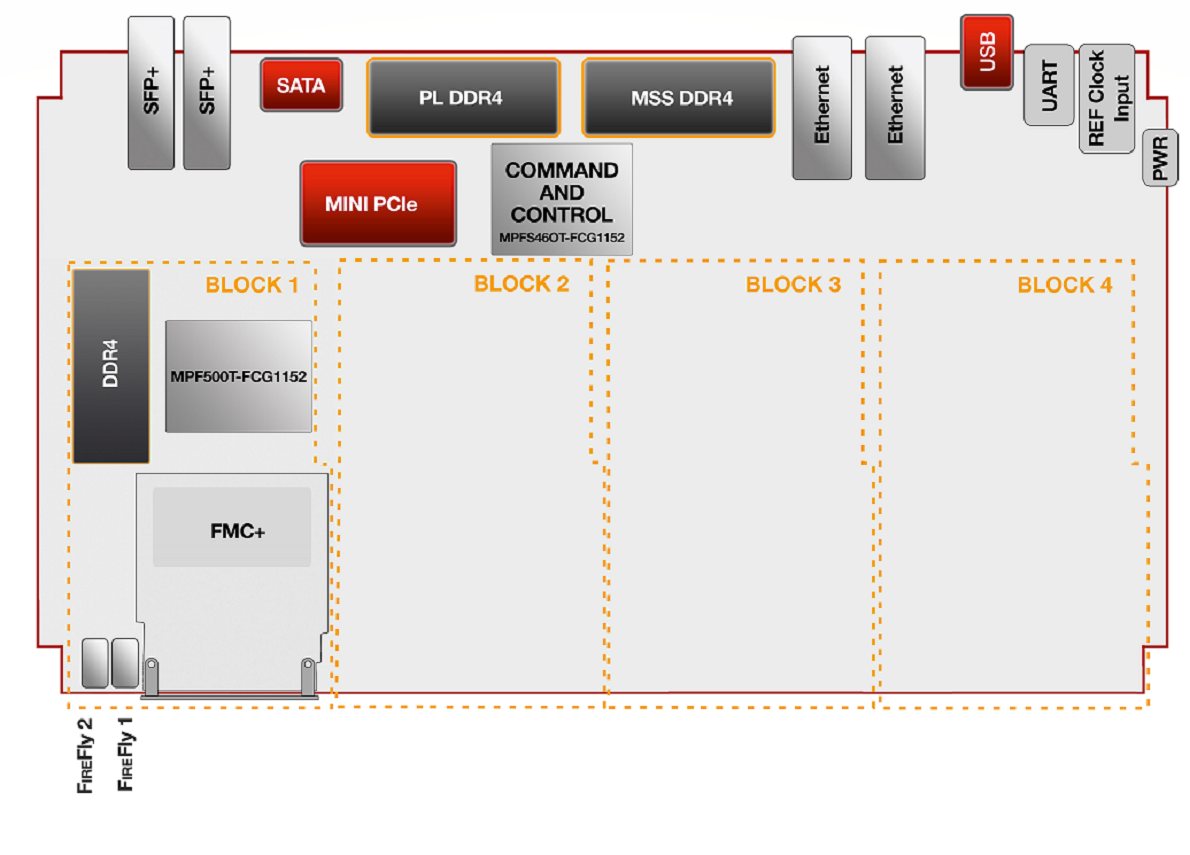

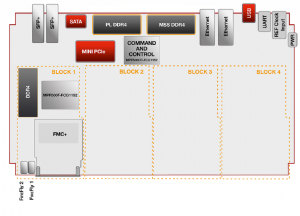

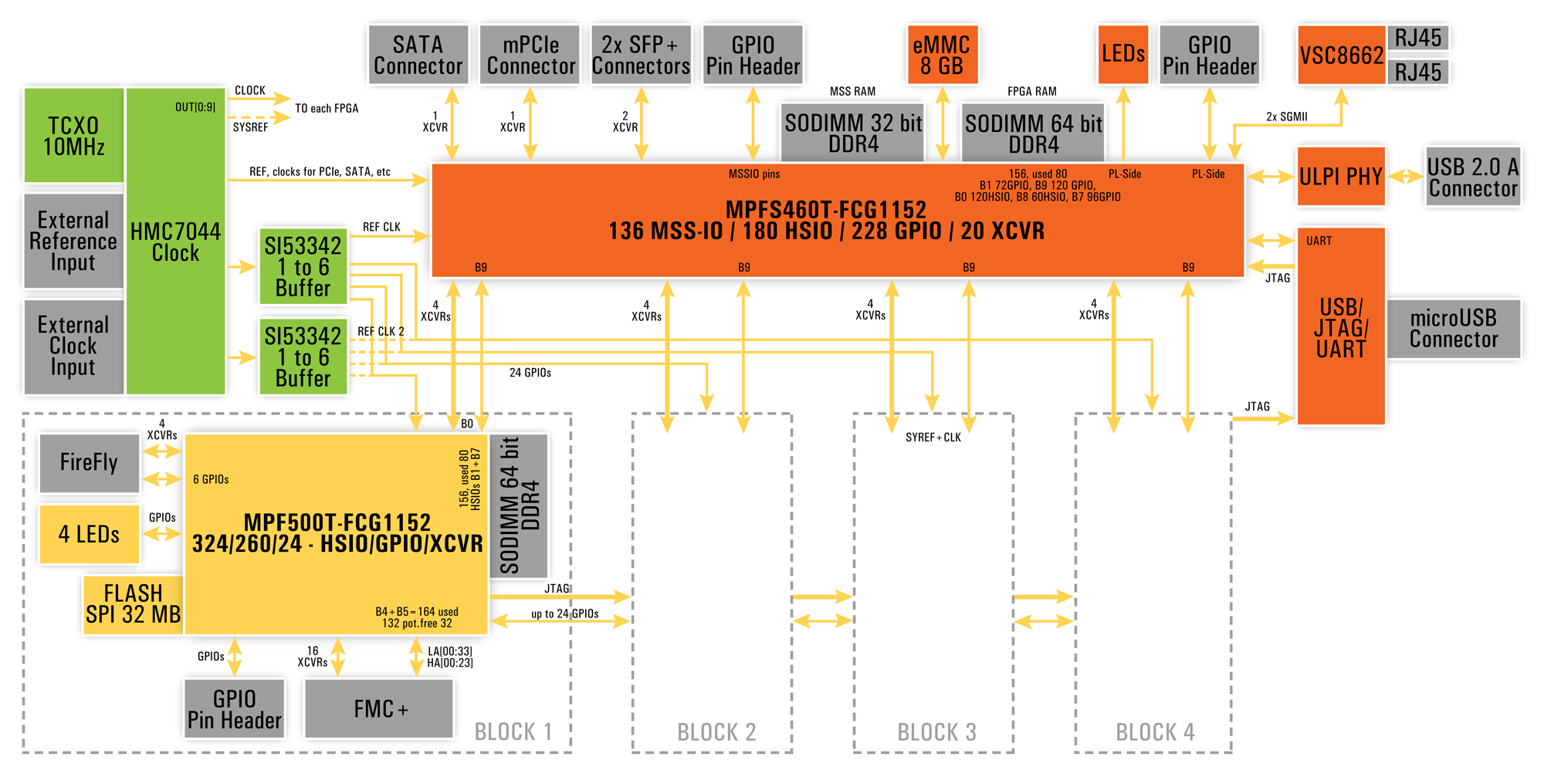

SE300 has a PolarFire SoC MPFS460T-FCG1152 as the central unit and 4 Polarfire FPGAs (MPF500T-FCG1152) as FMC+ controllers. Also, there is a flexible clock tree with JESD204B capable of inter-chip synchronization, which allows the creation of coherent systems with 4 FMC+ mezzanine cards.

PolarFire MPSOC  is an  FPGA + RISC-V processor. PolarFire SOC has a 5-core RISC-V processor (PS part) and programmable Logic (PL) resources.

The board offers the following main interfaces:

  • SODIMM 260 pin connector, with a 32-bit interface for the PS part;
  • SODIMM 260 pin connector, with a 64-bit interface for the PL part;
  • 32MB SPI Serial FLASH for storing boot image;
  • 8GByte of eMMC storage for various purposes;
  • Two RJ45 with 100/1000BASE-T interfaces;
  • USB 2.0 HOST interface, for user purposes;
  • Two SFP+ connectors;
  • Full or Half-size mPCIe connector with PCIe x1 interface;
  • SATA connector, with SATA 3.0 interface;
  • 16 XCVRs routed to slave units, 4 XCVR each;
  • Star topology low-speed LVDS connections to each unit, 4 pairs to each unit*;
  • User LEDs;

Features

  • Main Unit – PolarFire SOC FPGA from Microchip (MPFS460T-FCG1152);
  • Slave units – PolarFire FPGA MPF500T-FCG1152;
  • Flexible clock tree with JESD204B capability, based on HMC7044;
  • Inter unit communications with high-speed transceivers;
  • Inter unit communications with low speed LVDS mesh connections;
  • 4 FMC+ connectors with 16 ten gigabit transceivers, and GPIOs LA[00:33], HA[00:23]* each;
  • VADJ is separately regulated for each FMC+ slot;
  •  A Firefly interface per slave site;
  • JTAG chain with all 5 units;
  • USB bridge with JTAG and UART interfaces;
  • Power IN – 12V;
  • Power consumption of module is 60W (excluding FMC+ mezzanine consumption);



Applications

  • Data logging MIMO systemDefense and Aerospace
  • Diversity multiband, multimode digital receivers
  • 3G/4G, TD-SCDMA, W-CDMA, GSM, LTE, LTE-A
  • Electronic test and measurement systems
  • Phased array radar and electronic warfare
  • DOCSIS 3.0 CMTS upstream receive paths
  • HFC digital reverse path receivers









A complete Libro project showing the capture of ADC signals by using  JESD204B IP core with sample data sent to a host via SFP+ will be provided.

SE300-x-T

where X can be 1,2 ,3 or 4. Default is 4

T is either E for extended temperature  or I for industrial.

All parts will be -1 speed grade

For a bundle price with ADC and/or DAC FMC+ modules please contact SDSP.
