PCIe104Z with Xilinx Zynq US+ MPSOC
PCIe104Z is based on the Xilinx Zynq UltraScale+ MPSoC family. This hardware is in PCIe104 form factor and adheres to its latest specification. It offers 4 Gen 2.0, x1 lane PCIe interfaces through a switch that allows 4 PCIe104 cards to be connected to the ARM on the Zynq which acts as the host. The board also offers 2 Gen4, x4 lane PCIe connected to the PL parts which can act both as host and endpoints. It offers, HPC FMC, a Display port, USB, SATA, and other interfaces and comes with Petalinux running on the ARM.
PC104P PolarFire FPGA peripheral board in PCie104 format
PC104P PolarFire FPGA peripheral (endpoint) board is designed for rapid application development. This is a PCIe104 TYPE 3 peripheral board with stack-up and stack-down connectors. Board can be used as End-Point in stack-up configurations only for connection to StackPC host, and stack-down connector is used for connection to an adjacent peripheral module. This board offers an HPC FMC site for adding additional features/functionalities.
PCIe104Z, based on Xilinx Zynq Ultrascale+ MPSOC
PCIe104Z is based on the Xilinx Zynq UltraScale+ MPSoC family. This hardware is in PCIe104 form factor and adheres to its latest specification. It offers 4 Gen 2.0, x1 lane PCIe interfaces through a switch which allows 4 PCIe104 cards to be connected to the ARM on the Zynq which acts as the host. The board also offers 2 Gen4, x4 lane PCIe connected to the PL parts which can act both as host and end points. It offers, HPC FMC, Display port, USB, SATA and other interfaces and comes with Petalinux running on the ARM.

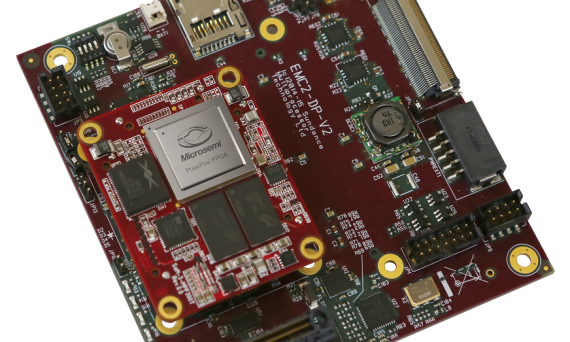

EMC²-DP PCIe104 SOM carrier
The EMC²-DP is a PCIe/104 OneBank” Carrier for Sundance SOM3 module based on PolarFire. It is also compatible with Trenz SoC Module and has expansion for a VITA57.1 FMC” LPC I/O board and also has I/O pins, using a 100-way Samtec RazorBeam connectors system.
SMT6657-KU35
Quad-Core KeyStone” DSP + UltraScale” FPGA Module
- PC/104 OneBank” plug-able module format
- Two Texas Instrument dual-core TMS320C6657 floating-point DSPs, running @ 1.24 GHz
- Xilinx Kintex-7 UltraScale KU35 series of FPGA w. 16x GTH transceivers
EMC²-KU35
- PCIe/104 OneBank I/O board
- Xilinx Kintex UltraScale KU35 SoM for I/O Interface and processing
- PCI Express Gen 2 compatible and integrate PCI Express switch
- An infinite number of EMC²-KUxx can be stacked for large I/O solutions
- Expandable with any VITA57.1 FMC I/O Module for more flexibility
- 96mm x 90 mm PC/104 Form-Factor with Cable-less Break-Out PCB Connector
OI115 – HDMI Input / Output FMC
- HDMI Input/Output FMC module (FMC-IMAGEON)
- HDMI input
- HDMI output
- Interface for ON Semiconductor VITA image sensor modules
- Video clock synthesizer
OI110 – Dual CameraLink
- Dual CameraLink Ports
- Dual Single SATA-3 Ports
- PoCL (Power over Camera Link) support
- Up to 85 MHz data rate
- Dual Base, Single Medium Base
- Single Extended Full CL Base

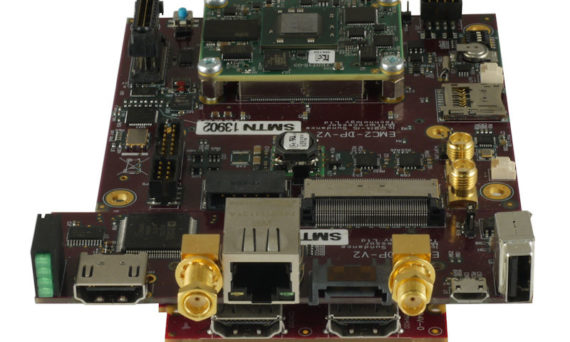

EMC²-Z7030
- PCIe/104 OneBank SBC w. Dual 1GHz ARM9 & 1Gbyte DDR3
- Xilinx Zynq SoC FPGA for I/O Interface and processing
- Integrated 1Gb Ethernet, combined w. USB2, SATA-2
- PCI Express Gen 2 compatible and integrate PCI Express switch
