FMC-GPIO-68SE is conduction-cooled HPC FM. It provides 68 Single-Ended GPIOs through a connector at the front bezel. The IOs are taken through level translator ICs which are auto-sensing and can covert from 1.8V to 3V, or 5V, and vice versa. In an alternative build option, some or all the IOs are pass through and not affected by the level translators. The front bezel has a Samtec ERF8-040-01-L-D-RA-L-TR connector. We use 6 Samtec RSP-122811-01 connectors as three differential pairs for transferring signals to the HB bank. These are useful for providing external-clock/ synchronization-signals.

Read More

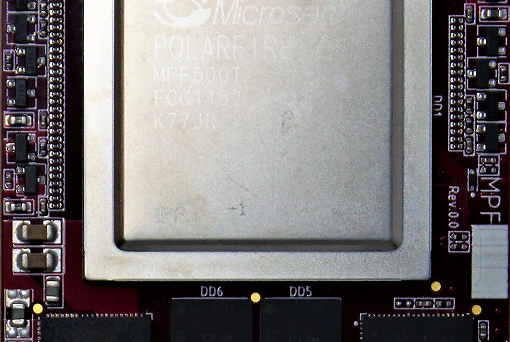

SoM1-MPF500T is a System on a Module using the powerful, low-power, and high-security PolarFire FPGA from Microsemi. It is based on the MPF500T-1FCG1152 FPGA with a small footprint of 76 x 52 mm and can be used in many embedded applications.

As default SoM1 is populated with MPF500T-1FCG1152E device, but to reduce cost, it can be optionally populated with MPF300T-1FCG1152E.

Read More

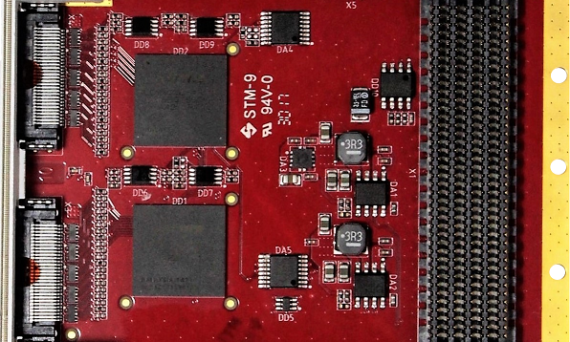

This is a complete system solution for image processing. FMC-MIPI offers 2 CSI and 2 DSI channels for interfacing to MIPI-based cameras /sensors and displays. It converts from MIPI to a parallel interface for easy transfer to the FPGA on an FMC carrier card for more demanding processing. It includes two Lattice FPGAs which can be used for processing incoming or outgoing data. The module, therefore, can be sued for embedded applications and without any FPGA carrier card.

Read More

FMC-SDR400 is a conduction-cooled Dual RF multiple I/O modules (MIMO) with 70MHz – 6GHz RF transceiver and sampling of less than 70MHz. Provides high RF sensitivity.

Read More

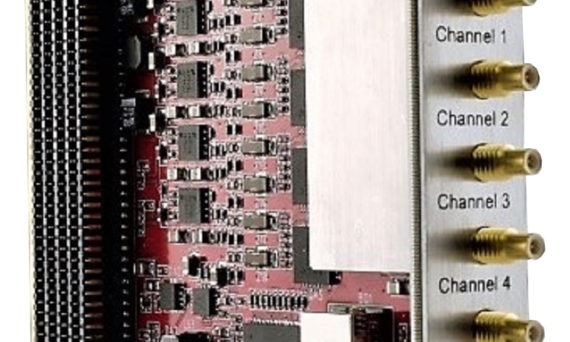

FMC-ADC500-5

  • 5 x ADC 16 bit @ 500MS/s
  • High Pin Count ( HPC ) FMC module
  • Trigger Input,  External Clock up to 4 GHz

Read More

FMC-GPIO is an FMC module that can act as an I/O interface for an FPGA board with HPC or LPC FMC sites.

Read More

FMC-CL is a Camera Link FMC (FPGA Mezzanine Module) that interfaces to quad BASE, MEDIUM, and dual FULL and Extended FULL Camera Link compatible cameras.

The FMC/CL has a variety of I/O capabilities:

  • 2 x SATA connectors
  • 4 CL connectors, can be used as a general-purpose I/O.

Read More

FMC-DAQ2P5 is a JESD204B compliant module.

  • 1 x ADC 12 bits @ 2.7 GSPS
  • 2 x DAC 16 bits @ 2.8 GSPS
  • High Pin Count ( HPC ) FMC module
  • PXIe, PCIe, Stand-Alone … platforms
  • External Clock up to 4 GHz
  • 100 MHz onboard VCXO

Read More

  • Two Serial ATA Disk Interface, using Silicon Image Serial ATA Link 3512 device
  • 1GHz TMS320C6416TÂ DSP
  • Xilinx Virtex-II Pro (VP30)
  • Six 20Mbytes/s interprocessor ComPorts





Read More
