SE215 PCIe carrier for SOM3

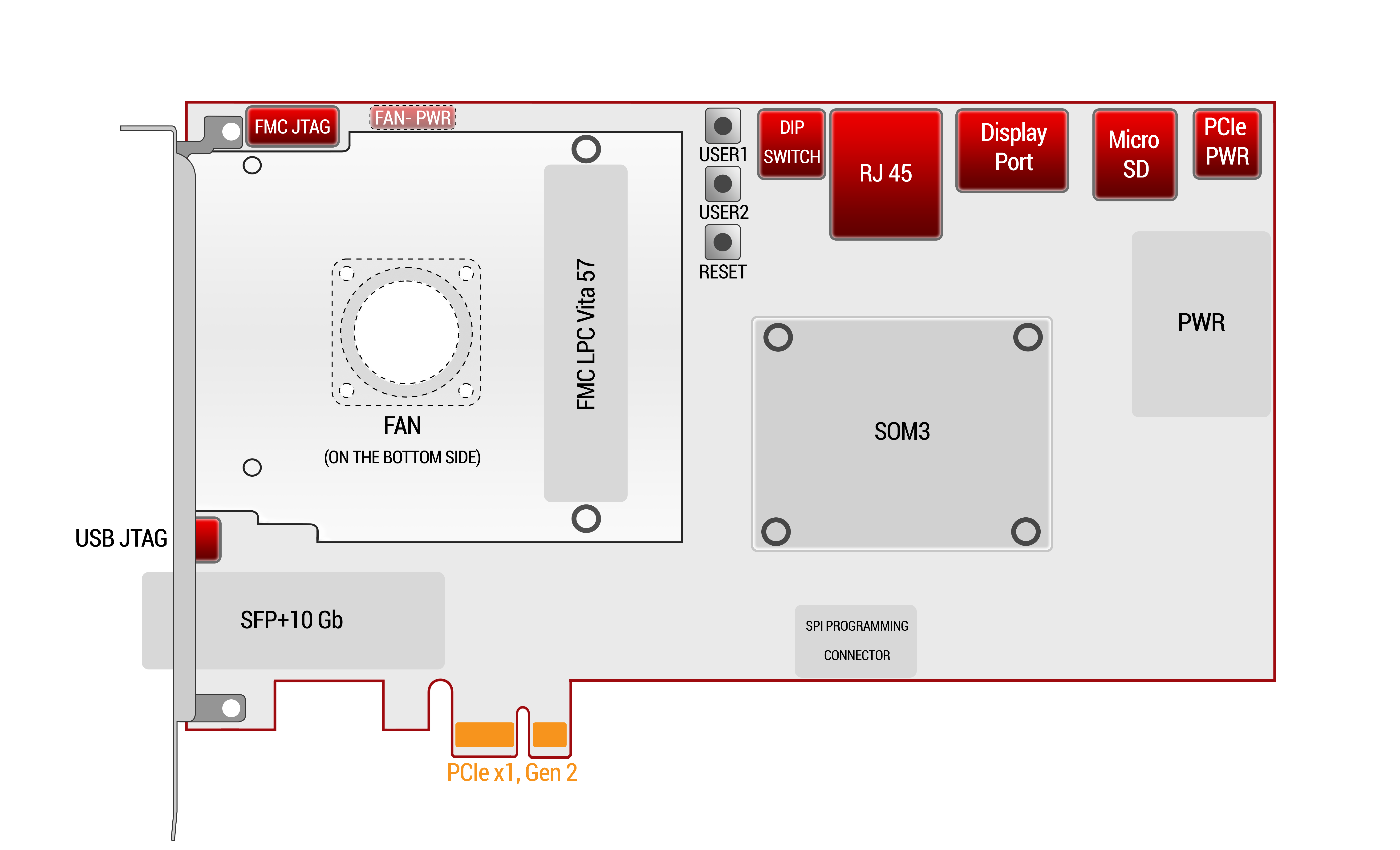

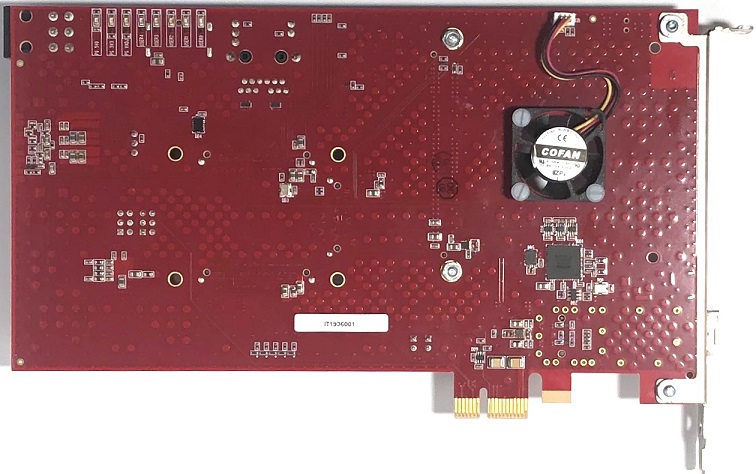

SE215 is a development board for Sundance SOM3 . It is a PCIe  x1 Gen2 carrier card with one site for an SOM3. It offers USB JTAG and UART, through a micro USB connector, Display port and comes with a version of Display port IP core from  Bitec DSP. The card provides Power GOOD and user LEDs for rapid debugging. A Low Pin Count (LPC) FMC site is also available. The board has external 12V power input connector so it can be used as an embedded / desk top solution.

Via jumper selection it can be used as RootComplex in a PCIe passive carrier.

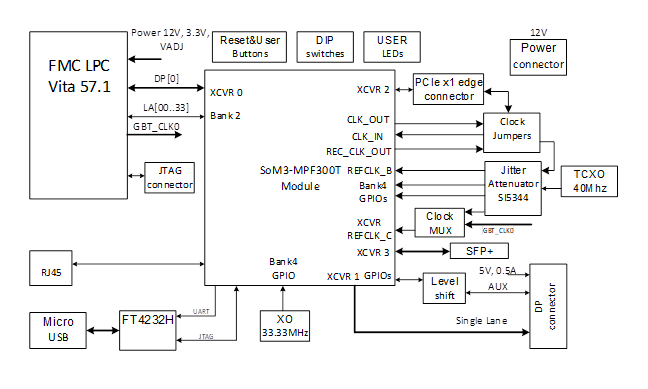

Features

  1. Slot for SoM3-MPF300T module (MPF300T-1FCVG484 FPGA)
  2. USB – JTAG and USB – UART bridge via FT4232H IC, connector – micro USB;
  3. Display port connector for single lane unidirectional source interface, maximum line rate – 10 Gbps. Also available AUX channel*;
  4. microSD card connector, only DS and HS (3.3V) mode supported*;
  5. FMC LPC Vita 57.1 connector for functional extension, with ten gigabit lane;
  6. FMC VADJ supported 1.2V, 1.8V, 2.5V;
  7. RJ45 connector for 100/1000Mbit Ethernet connection*;
  8. SFP+ connector for SFP+ module, HW can support for SyncE and IEEE1588*;
  9. Ultra low jitter onboard clocking IC, jitter <100fs;
  10. TCXO 40 MHz with ±1ppm, for SyncE applications;
  11. PCIe x1 Gen 2 EP for communication with PC, also reconfigurable to RootComplex with jumpers, plus special interconnect board;
  12. Three LEDs for power GOOD;
  13. Five User LEDs for debug purposes;
  14. Two user button and four dip switches;
  15. 12V input power connector;
  16. Temperature range, 0°C to +50°C;
  17. Maximal power consumption, including FMC LPC, is 35W;



 Applications

  • Defense
  • Control
  • Instrumentation and testing
  • Embedded and Indsutrial

Example Libero project and confidence test application will be provided, including driver from Microchip.

SE215   the carrier cad without the SOM3 module

SE215-eval   SE215 + SOM3
