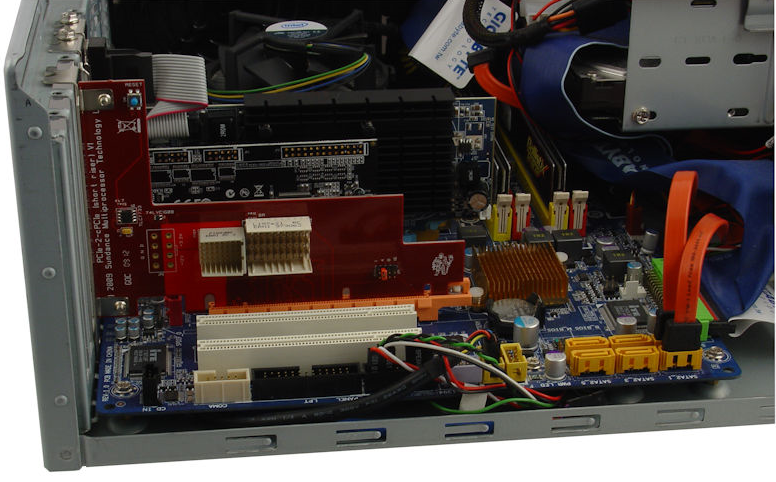

With the SMT580, you can plug your PXIE card into a standard PCIe slot on your PC, as shown below. You may also make use of a Samtec PCIEC-098-0151—EC-EM-C cable for PCs that do not facilitate direct connection. This enables easier and faster debugging of software, letting you develop your new design on your already configured PC. It can be used with the SMT 7xx series of PXI cards.
The SMT580 adapter provides a seamless bridge between PXIe and PCIe architectures, eliminating the need for a dedicated PXIe chassis during development phases. This cost-effective solution significantly reduces setup time and hardware requirements, allowing engineers to focus on application development rather than infrastructure concerns.
The board is compatible with all PXIe cards, such as PXIe720 and PXIe800Z, and PXIe840, providing versatile connectivity options across your entire development ecosystem.
The complete schematic of the SMT580 board is available upon request, providing developers with detailed technical information for advanced integration scenarios and customized implementations.
