Solar Express 50

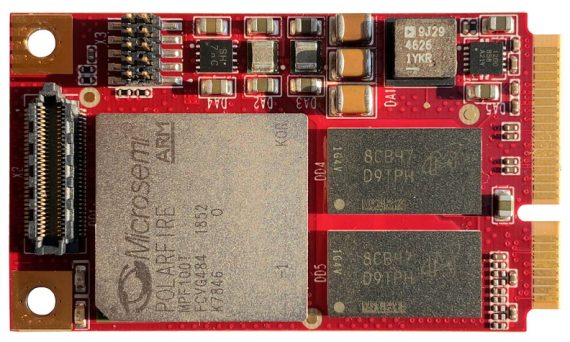

Full-size Mini PCIe board with a PolarFire FPGA,  4GB of DDR4 memory and PCIe interface, JTAG, IO connector, suitable for application processing or for providing additional IO interface to the host. This is a Full-size mini PCIe peripheral board with MPF300T-1FCVG484E FPGA (can also use MPF100 and MPF200 in the same package).

Read More

FMC-GPIO68SE, 68 Single Ended GPIO with 1.8v to 3.3 or 5V tolerance or 34 differential pairs

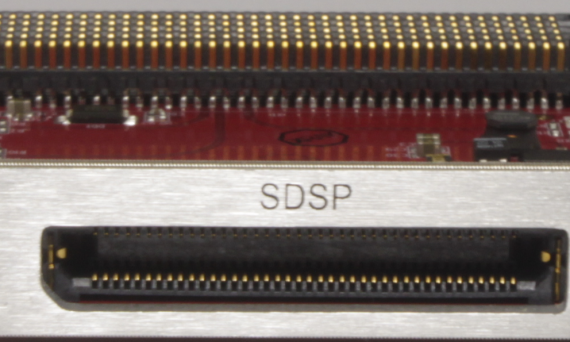

FMC-GPIO-68SE is conduction-cooled HPC FM. It provides 68 Single-Ended GPIOs through a connector at the front bezel. The IOs are taken through level translator ICs which are auto-sensing and can covert from 1.8V to 3V, or 5V, and vice versa. In an alternative build option, some or all the IOs are pass through and not affected by the level translators. The front bezel has a Samtec ERF8-040-01-L-D-RA-L-TR connector. We use 6 Samtec RSP-122811-01 connectors as three differential pairs for transferring signals to the HB bank. These are useful for providing external-clock/ synchronization-signals.

Read More

SoM1-MPF500T, System on Module (SoM), with Microsemi PolarFire MPF500T-1FCG1152E

SoM1-MPF500T is a System on a Module using the powerful, low-power, and high-security PolarFire FPGA from Microsemi. It is based on the MPF500T-1FCG1152 FPGA with a small footprint of 76 x 52 mm and can be used in many embedded applications.

As default SoM1 is populated with MPF500T-1FCG1152E device, but to reduce cost, it can be optionally populated with MPF300T-1FCG1152E.

Read More

FMC-MIPI, 4 channels DSI/CSI MIPI solution in FMC Format

This is a complete system solution for image processing. FMC-MIPI offers 2 CSI and 2 DSI channels for interfacing to MIPI-based cameras /sensors and displays. It converts from MIPI to a parallel interface for easy transfer to the FPGA on an FMC carrier card for more demanding processing. It includes two Lattice FPGAs which can be used for processing incoming or outgoing data. The module, therefore, can be sued for embedded applications and without any FPGA carrier card.
