- Small size PCI104 footprint; without PCIe104 connector
- Electrically compliant to Vita 57.1 FMC standard
- 6 channels of RF from 70MHz to 6GHz
- Based on ADI 9361
- Dual Base, Quad Base, Medium, Full and Extended Full CL configuration
- PoCL (Power over Camera Link) support
- Up to 85 MHz data rate
- ESD protection for all Camera Link signals
- 2 on board MachXO3™ LCMXO3L-4300C-6BG256C FPGA from Lattice
- Comes with IP cores developed by Lattice and ported and tested by Sundance DSP;

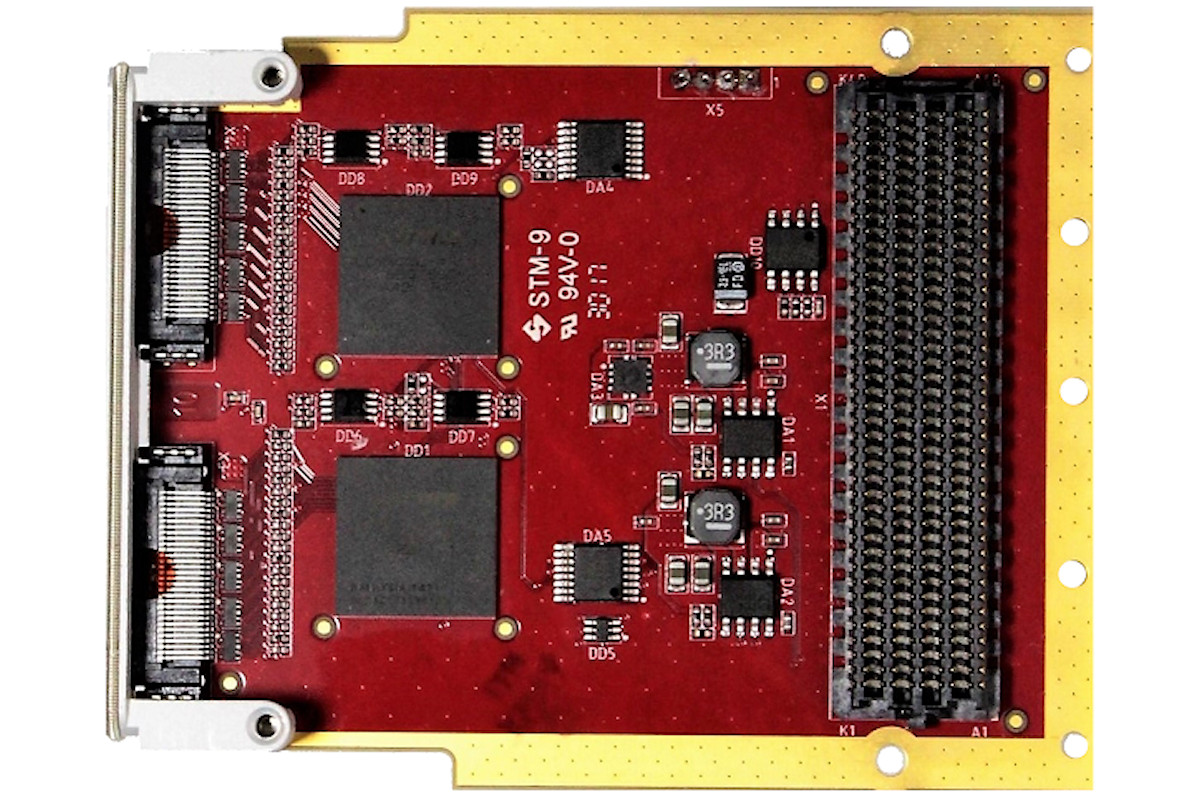

- Two MIPI CSI-2 input interfaces with 4 lanes, up to 0.9Gb/s per Lane converted to two 14 bit parallel interfaces;

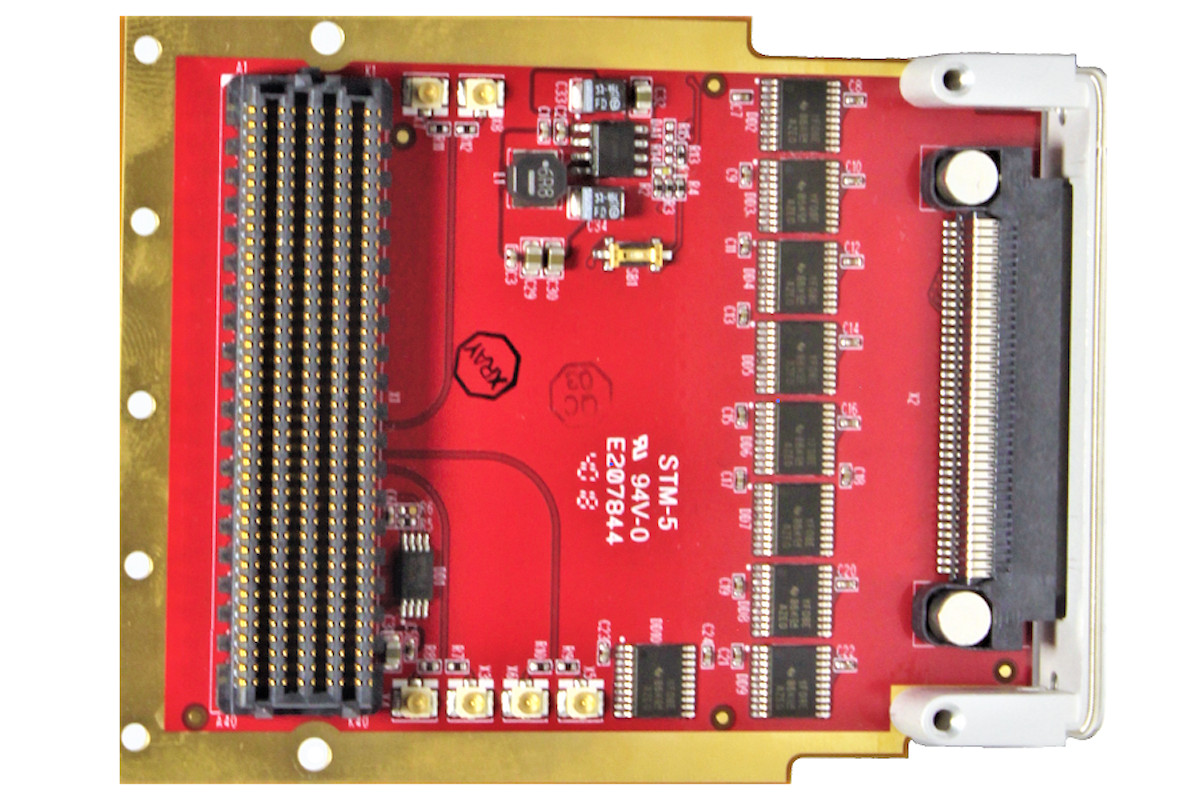

- 68 Single Ended IOs or 34 differential pairs without level translation
- Auto sense, level translation of all or some of the IOs from 1.8V to 3.3 or 5V
- Pass through option
- 3 differential pairs through 6x Samtec connectors RSP-122811-01
- LPC FMC with RS422 or RS485 or RS232 input interfaces
- All output interfaces are ESD protected, ESD protection built in IC;
- Main IC is SP339EER1-L

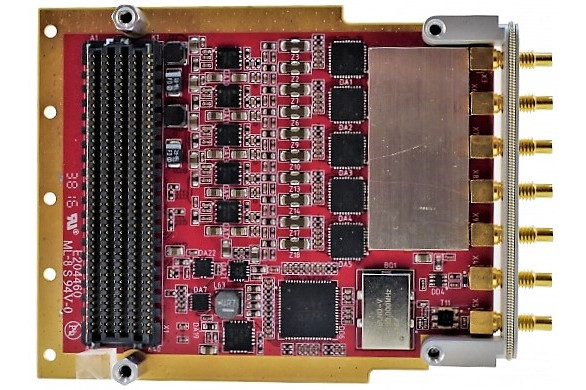

- 5 x ADC 16 bit @ 500MS/s
- High Pin Count ( HPC ) FMC module
- Trigger Input
- External Clock up to 4 GHz
- 2 RF Channels, DC to 6 GHz acquisition
- Software tunable Channel Bandwidth 200 kHz-56 MHz
- 2 x Multiple Synchronized Input and output
- AD9361 Dual 12 bits transceivers

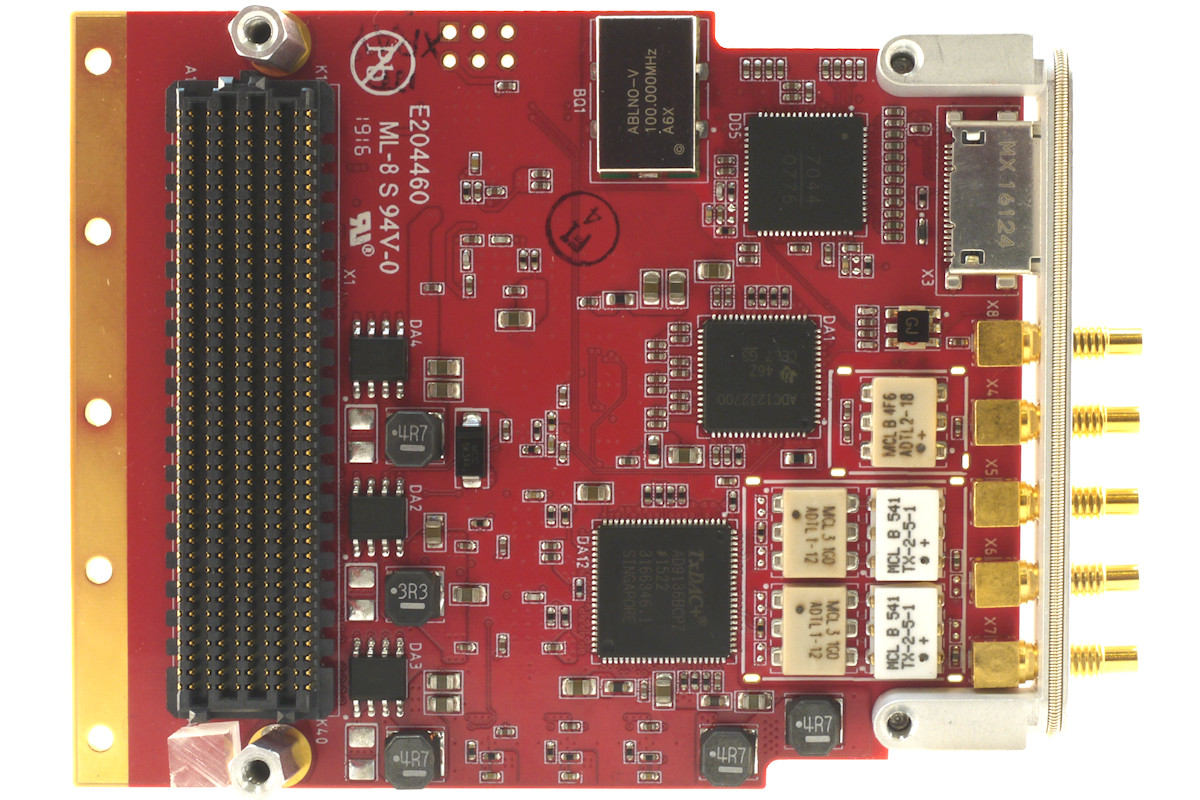

- 1 x ADC 12 bit @ 2.7 GSPS
- 2 x DAC 16 bit @ 2.8 GSPS
- High Pin Count ( HPC ) FMC module
- PXIe, PCIe, Stand-Alone platforms
- FMC LPC Connector Type
- Dual or Quad can bus channels SN65HVD233 with auto test capabilities
- Front panel connector SCSI 50 pin
- IPMI Memory type EEPROM 24C04
- FMC module that can act as an IO interface for an FPGA board with HPC or LPC FMC sites
- 2 x SATA connectors
- 4 x 26 pin SDR type connectors that can be used as a general purpose I/O.
- FMC LPC connector (Type HPC can also be mounted)
- 4 or 8 configurable channels RS232/422/485
- Baud Rate 10Mbps in RS485/422 mode, 1Mbps in RS232 mode
- VITA57 FPGA Mezzanine Module
- 2 or 4 receivers
- 2 or 4 Transmitters

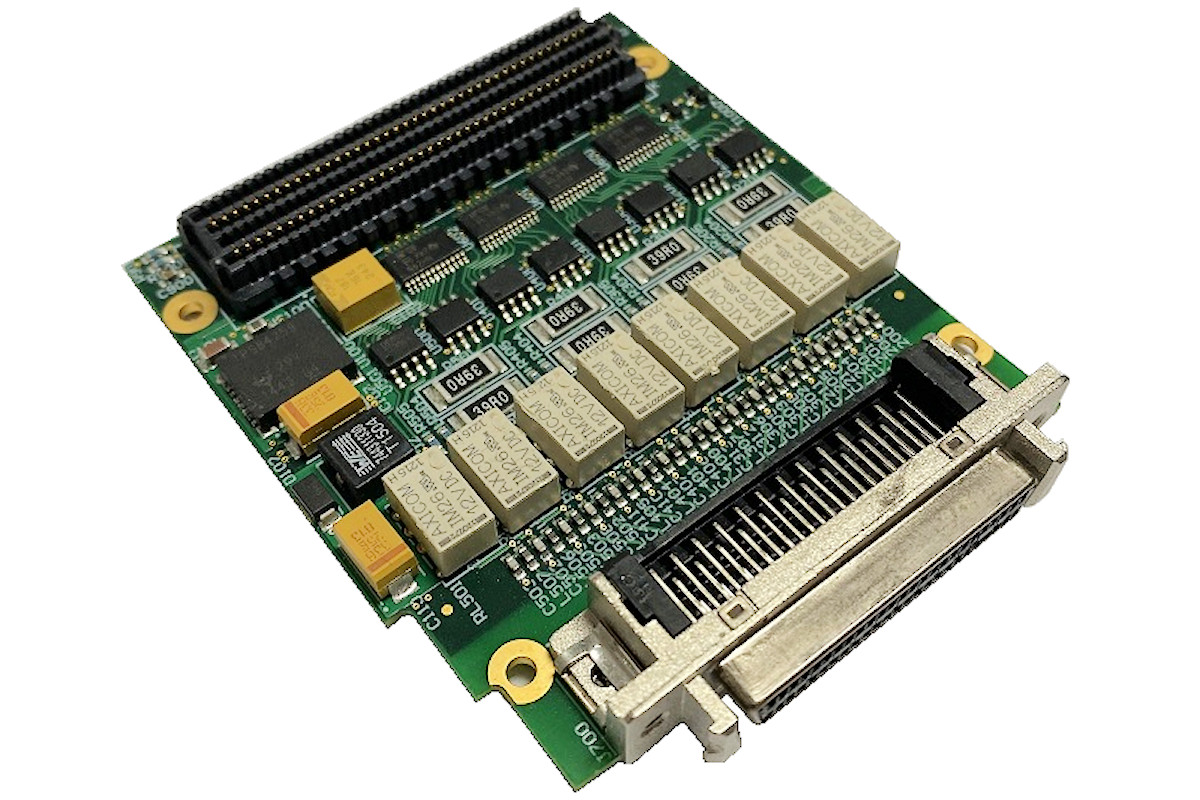

- 429 Channels
- FMC LPC connector (Type HPC can also be mounted)
- Transceivers HI-1579PCI
- Transformers DB2725EX
- Front panel connector SCSI 50 pin

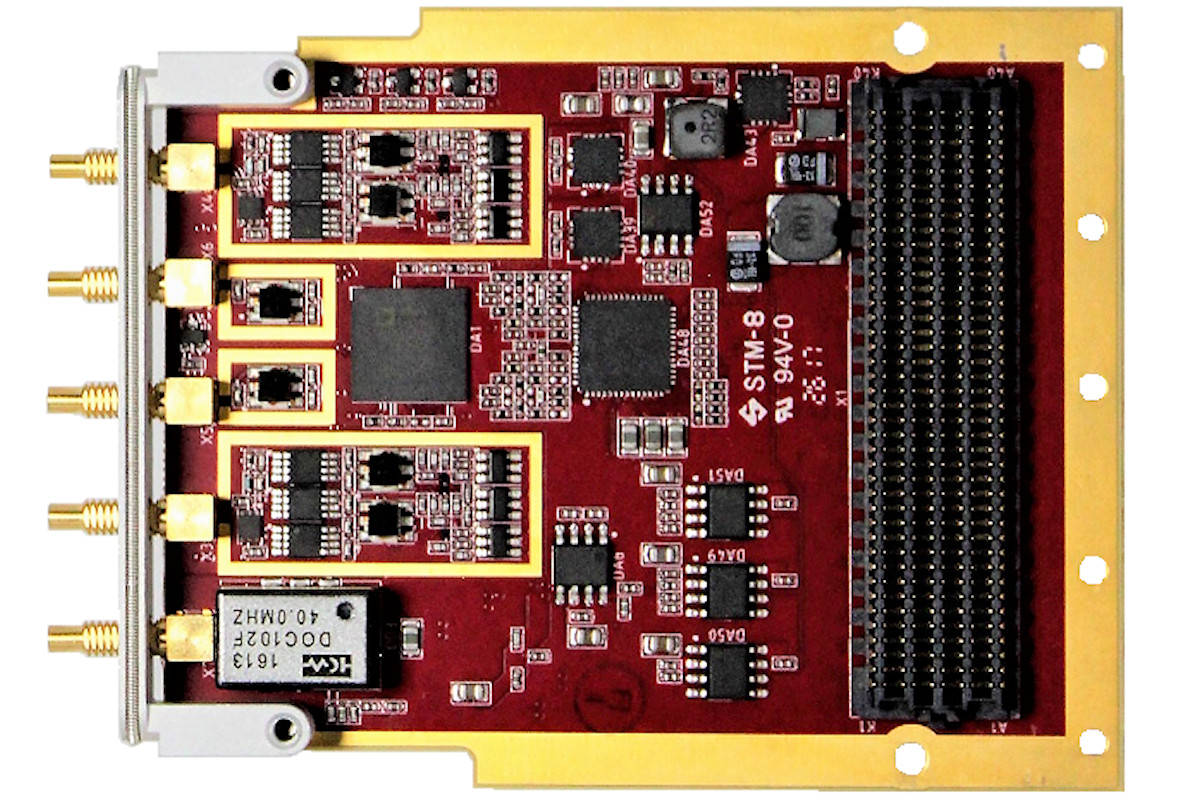

- The FMC-SDR400D is based on AD9361 Transceivers IC, with Low Noise Amplifier (LNA) at RX channels.
- Tx channels contain 20 dB amplifier IC.
