PolarFire, MPF100, MPF300, MPF500, MPF460-SOC

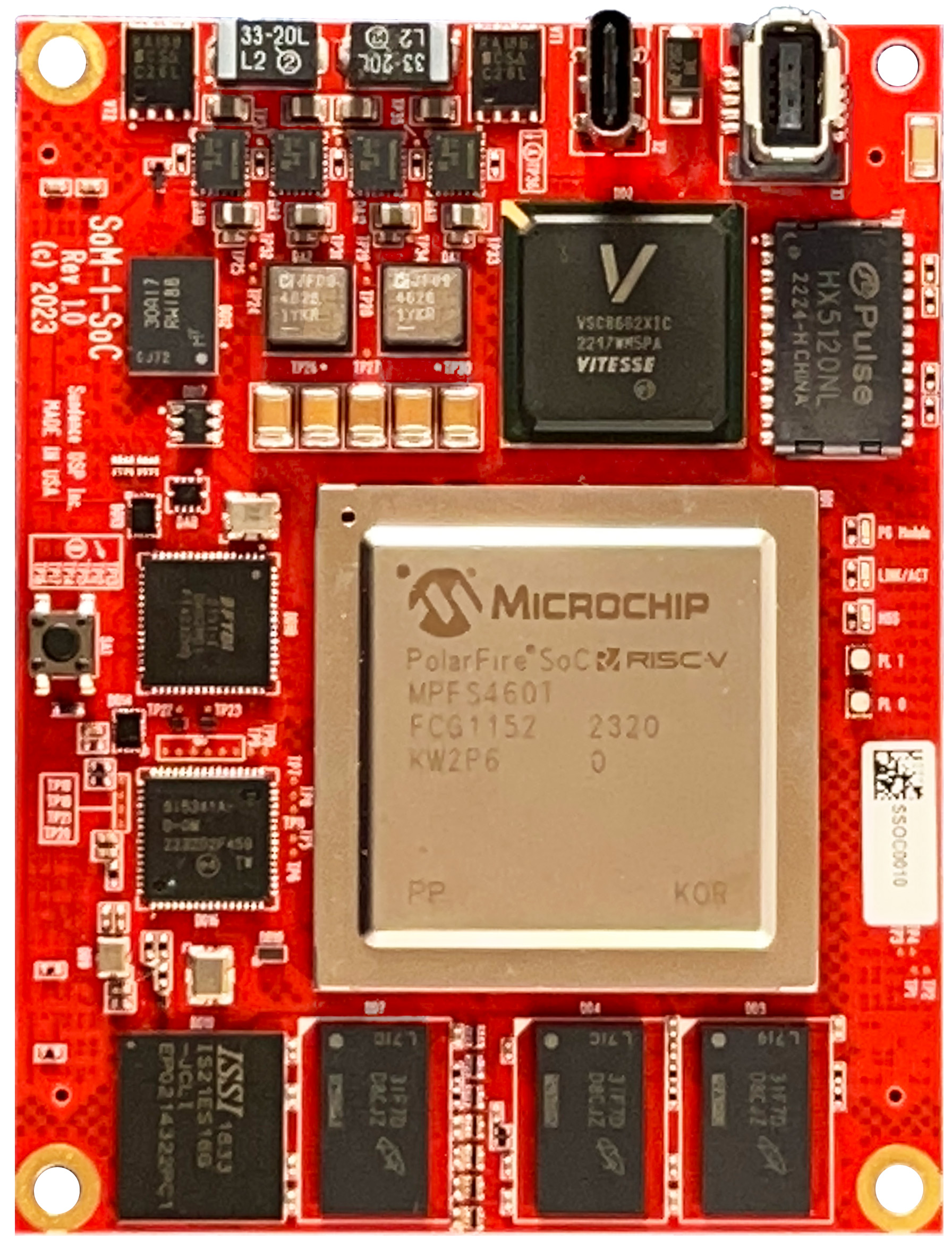

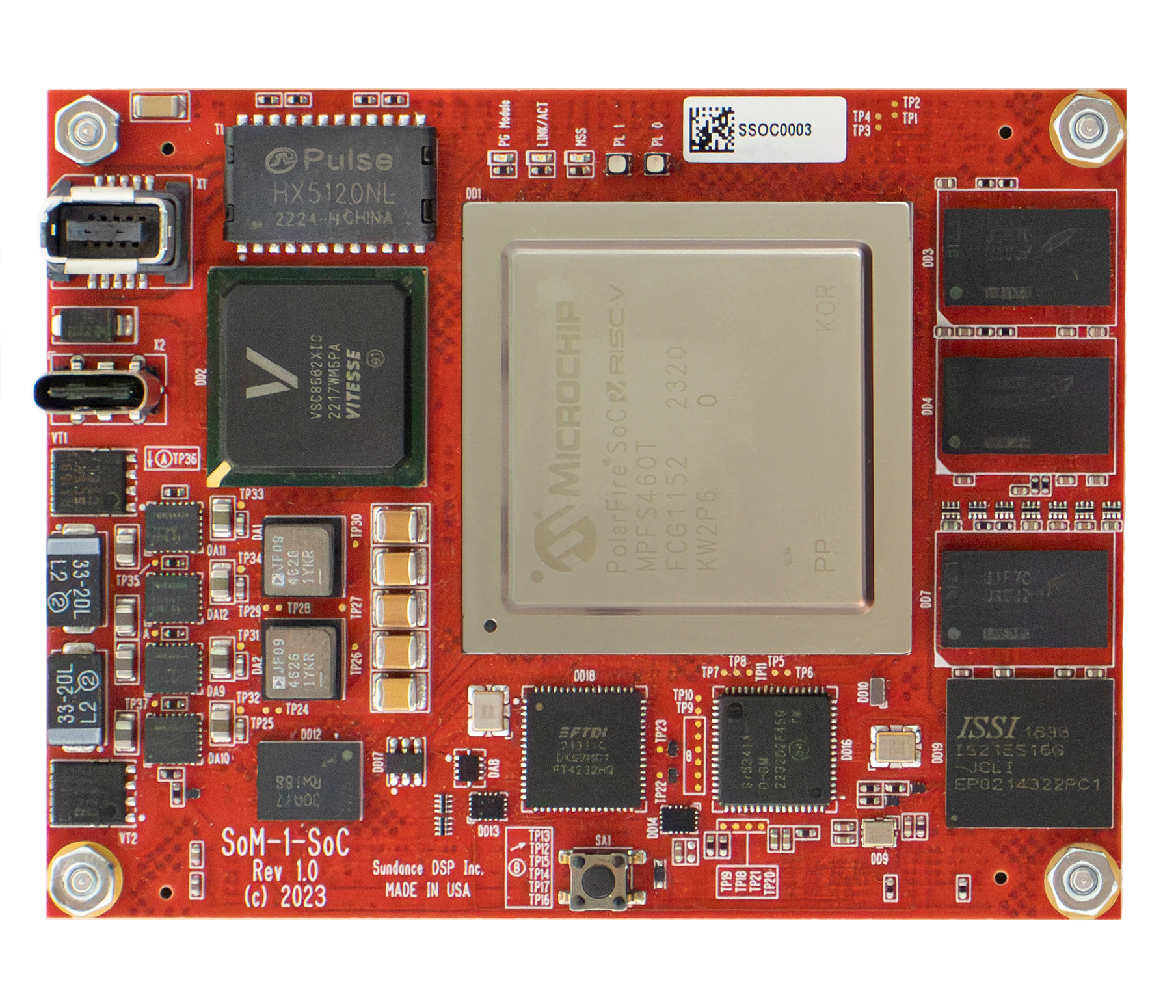

SoM1-SOC

  • SoM1-SOC is an innovative system-on-module that uses the
  • Microchip PolarFire SoC FPGA,
  • combines a low-power FPGA with a 64-bit, Linux-capable RISC-V processor
  • The MPFS460T PolarFire SoC comes with x5 RISC V processors
  • Can be mounted on SE301 PCIe carrier

Polar-VPX

Polar VPX
  • Polar-VPX is an innovative 3U VPX form-factor SOSA-aligned device.
  • Microchip PolarFire SoC FPGA,
  • Combines a low-power FPGA with a 64-bit, Linux-capable RISC-V processor
  • The MPFS460T PolarFire SoC comes with x5 RISC V processors

SE300

SE300 Multi FPGA System
  • Main Unit – PolarFire SOC FPGA from Microchip (MPFS460T-FCG1152);
  • Slave units – PolarFire FPGA MPF500T-FCG1152;
  • Flexible clock tree with JESD204B capability, based on HMC7044;

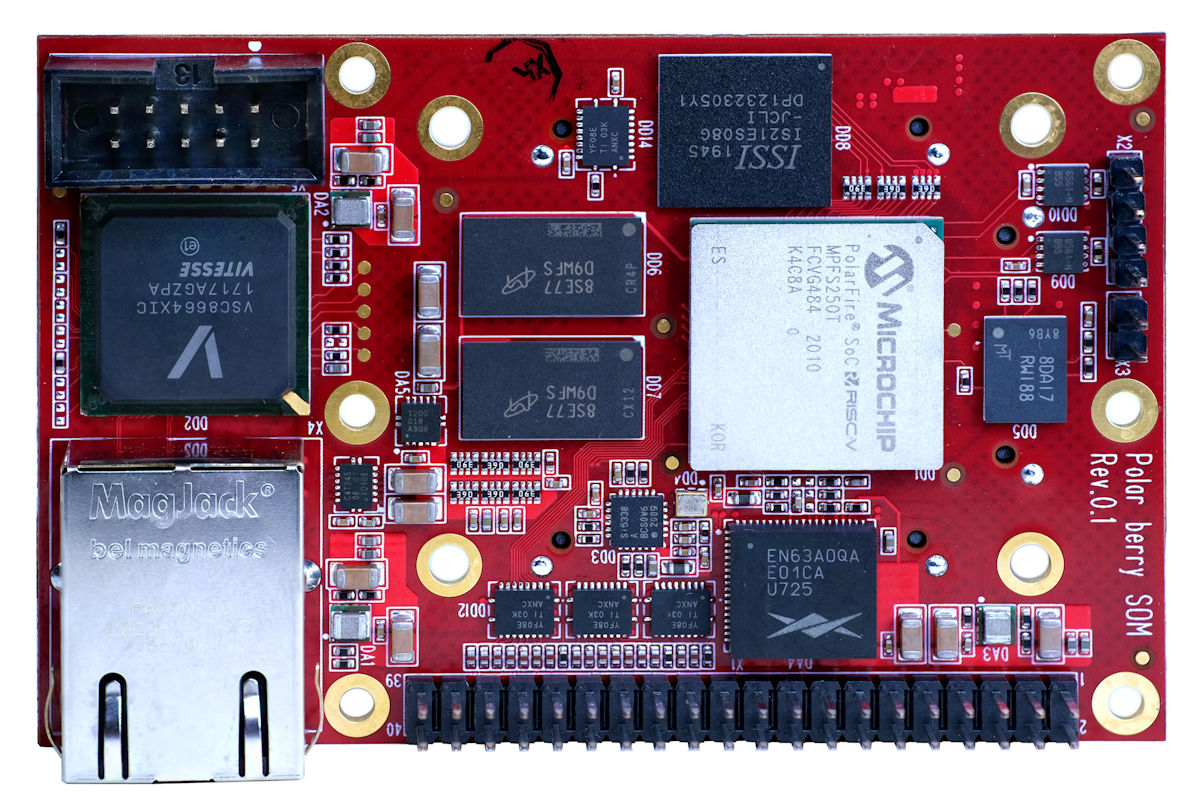

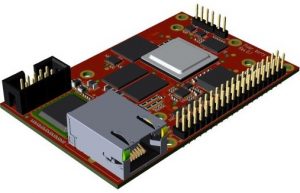

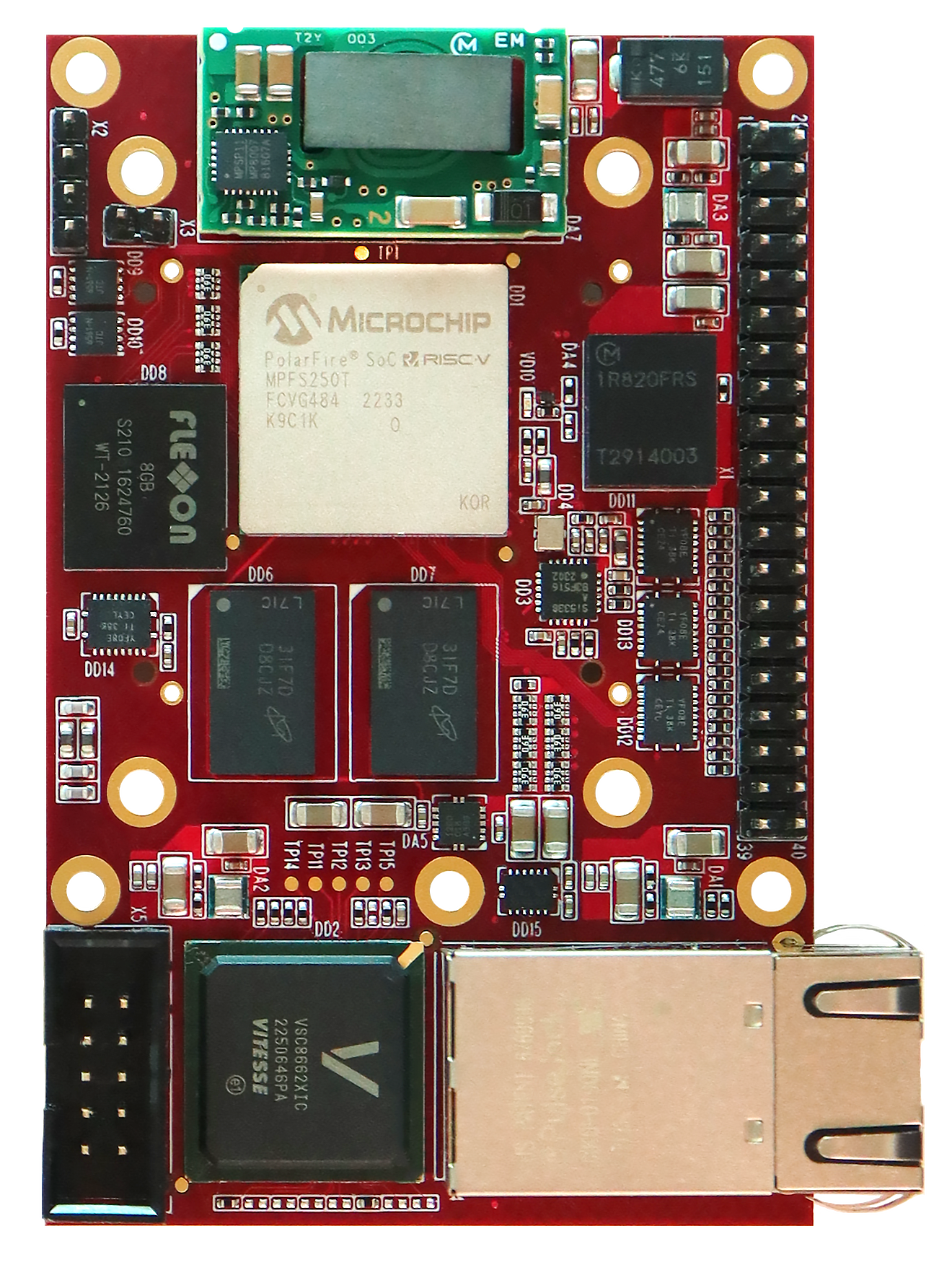

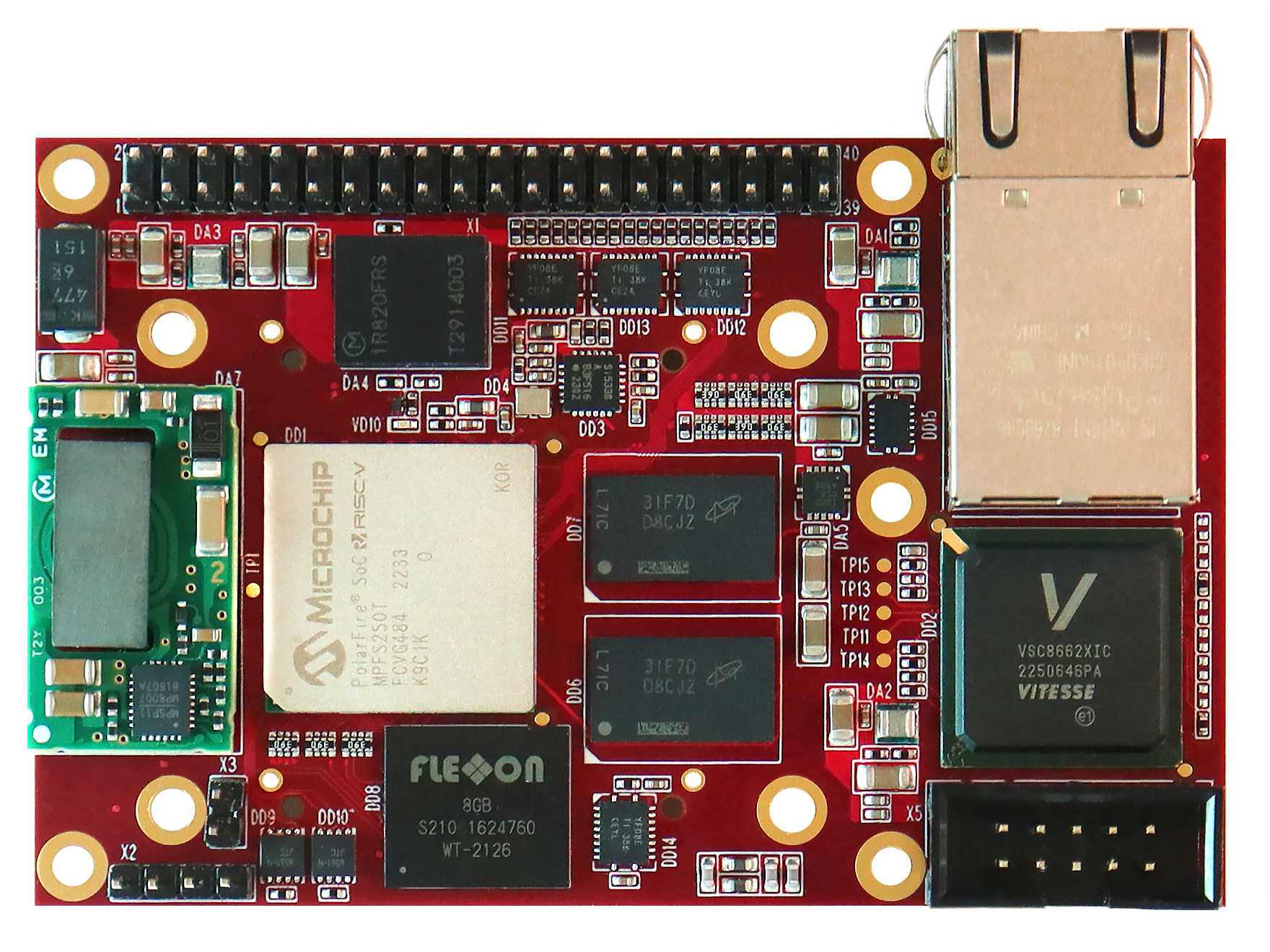

PolarBerry

Polar VPX

PolarBerry is a single board computer in SOM form factor with a PolarFire SOC  (FPGA + RISC-V processor). This is a System On Module (SOM) based on MPFS250T-FCVG484

Solar Express 50-3G/SDI

  • mini-PCIe card for 3G/SDI imaging applicationds
  • MPF300T-1FCVG484E PolarFire FPGA from Microchip and LMH0397 from TI
  • One 1024×16 DDR4 chips for RAM (2GB of DDR4)
  • PCIe x1 Gen2 as EP
  • 2 U.FL connector for 3G/SDI input/output interfaces
  • Support for V210 video format  used in professional video production and broadcast.

Solar Express 50

  • MPF300T-1FCVG484E PolarFire FPGA from Microchip
  • Two 1024×16 DDR4 chips for RAM (4GB of DDR4)
  • PCIe x1 Gen2 as EP
  • Samtec SS4-30-3.00-L-D-K I/O connector for GPIOs and transceivers
  • Additional GPIO with FPGA processing

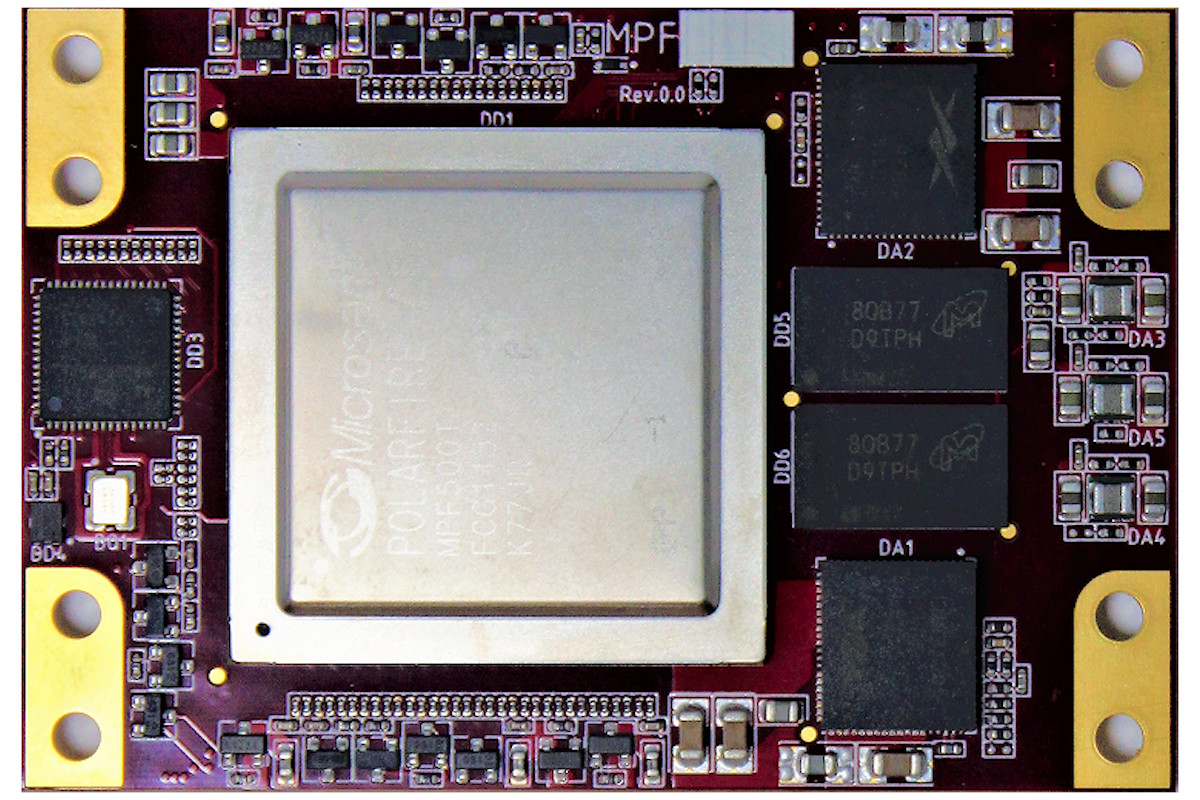

SoM1-MPF500T

  • Polarfire MPF500 FPGA
  • 481K Logic elements PolarFire FPGA in the FCG1152 package
  • 2 chips MT40A1G16 from Micron – total 4GB of DDR4-1600
  • 512Mbit SPI Flash for bitstream and other code storage

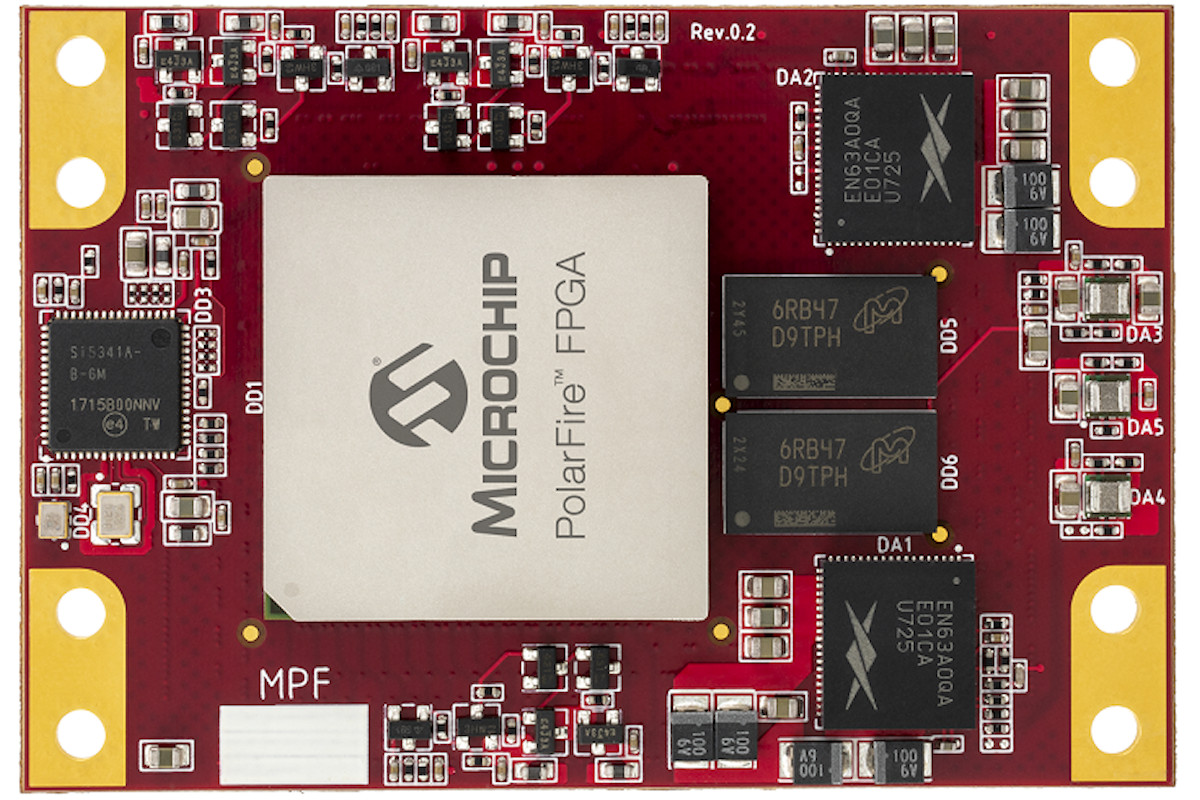

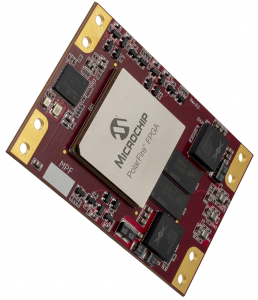

SoM2-MPF300T

Not Recommended for New Designs

  • System On Module based on PolarFire MPF300T-1FCG784E FPGA ,or MPF500T-1FCG784E FPGA
  • Two MT40A1G16 memory chips from Micron – total 4GB of DDR4-1600
  • 512 Mbit SPI Flash for bitstream and other code storage

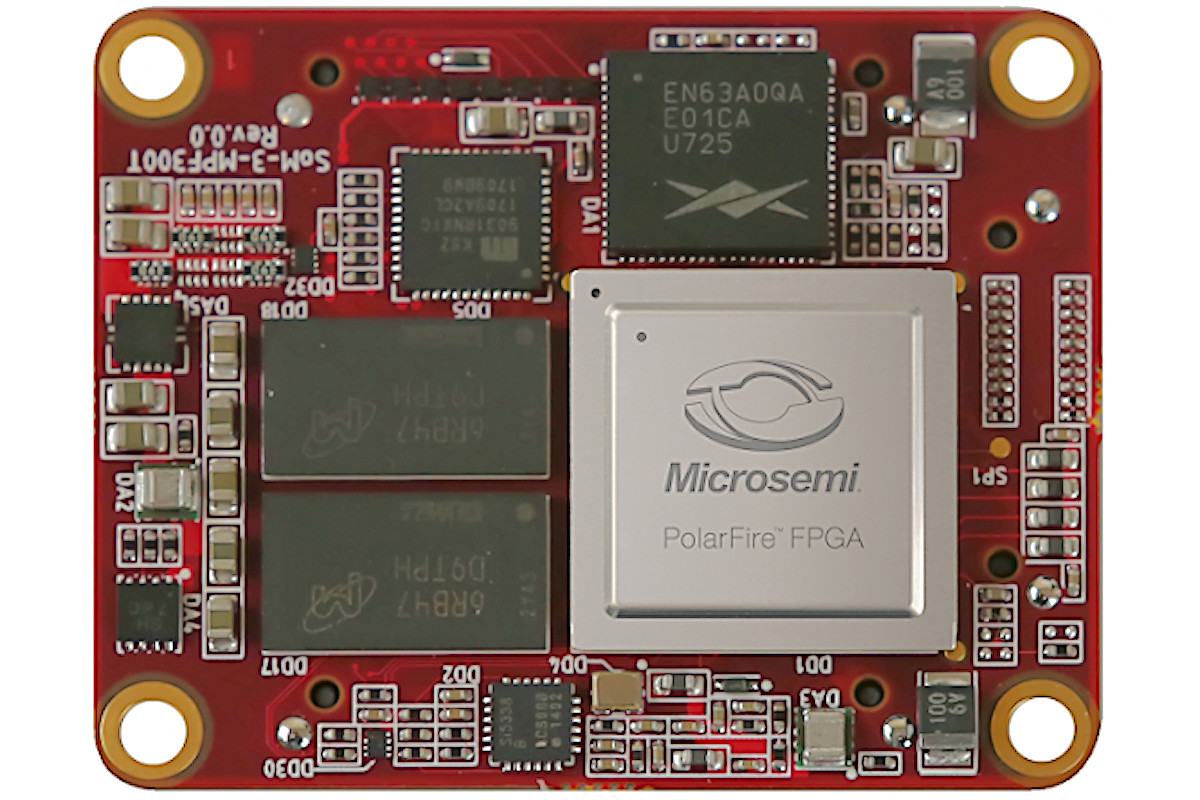

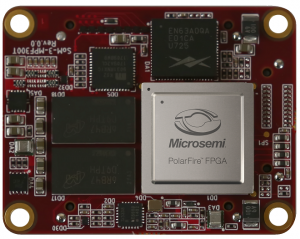

SoM3-MPF300T

  • Uses MP300T in FCVG484 (optionally can also use 100 and 200T versions of the FPGA)
  • 4GB of DDR4 memory
  • Small foot print, System On Module (SOM) with 40 x 50 mm dimension
