Solar Express 50
Full size mini PCIe board with a PolarFire FPGA, 4GB of DDR4 memory and PCIe interface, JTAG, IO connector, suitable for application processing or for providing additional IO interface to the host. This is a Full size mini PCIe peripheral board with MPF300T-1FCVG484E FPGA (can also use MPF100 and MPF200 in same package).
PCIe104Z with Xilinx Zynq US+ MPSOC

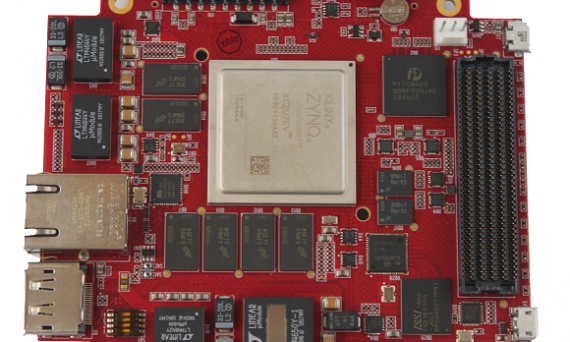

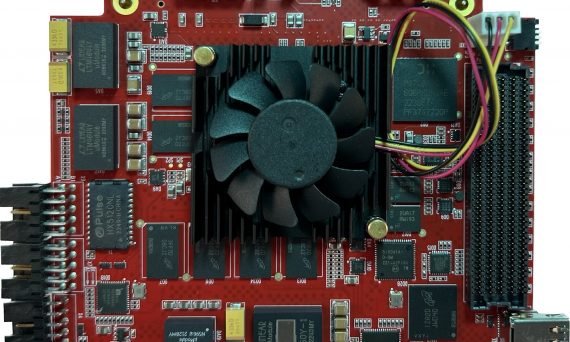

PCIe104Z is based on the Xilinx Zynq UltraScale+ MPSoC family. This hardware is in PCIe104 form factor and adheres to its latest specification. It offers 4 Gen 2.0, x1 lane PCIe interfaces through a switch which allows 4 PCIe104 cards to be connected to the ARM on the Zynq which acts as the host. The board also offers 2 Gen4, x4 lane PCIe connected to the PL parts which can act both as host and end points. It offers, HPC FMC, Display port, USB, SATA and other interfaces and comes with Petalinux running on the ARM.
SE200 SOM PCIe carrier

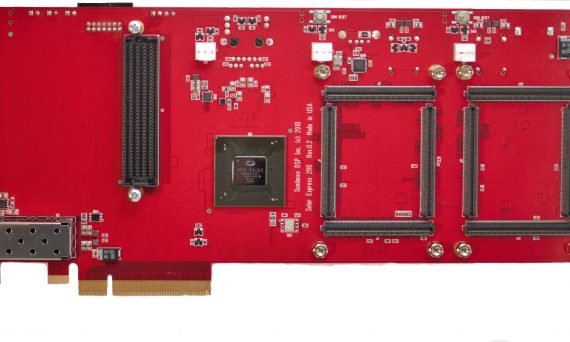

Solar Express 200 (SE200) is x8 Gen3 PCIe carrier board with two SoM-PF m(System on Module) sites. The 2 SoMs that can be supported on this carrier are SoM-PF1 and PF2 which are based on MPF500-1FCG1152 and MPF300T-1FCG784E respectively. Site 1 is typically designed for SoM-PF1 but if SoM-PF2 is plugged into that position then only only PCIe, Firefly, SFP+ and 4 lanes of high speed serial links for FMC interface will be available. The board is designed for development purposes and plugs into a PC’s PCIe slot and powered by PCIe interface. An FMC slot, SFP+ module, x2 Samtec FireFly, USB and other peripherals are available on the carrier card.
PC104P PolarFire FPGA peripheral board in PCie104 format

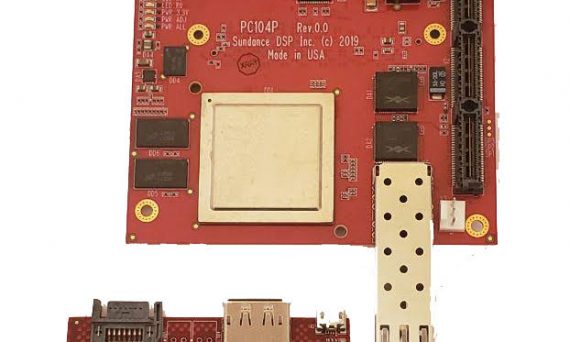

PC104P PolarFire FPGA peripheral (endpoint) board is designed for rapid application development. This is a PCIe104 TYPE 3 peripheral board with stack up and stack down connectors. Board can be used as End-Point in stack-up configurations only for connection to StackPC host; and stack down connector is used for connection to an adjacent peripheral module. This board offers a HPC FMC site for adding additional features/functionalities.
Based on Xilinx Zynq Utrascale+ MPSOC XCZU7EV-2FFVC1156E, SE125 is a Low Profile PCI Express board for Data Center Applications

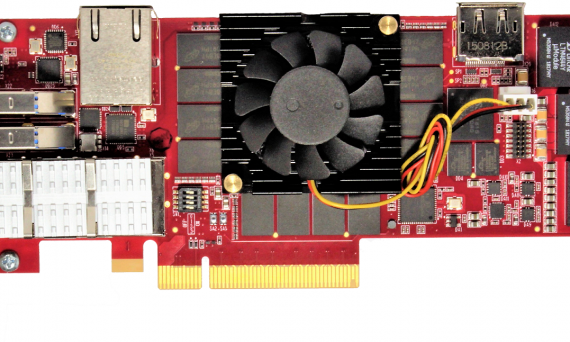

SE125 is a low profile, 8 lanes PCIe card powered by the Xilinx Zynq Utrascale+ MPSOC (XCZU7EV-2FFVC1156E. Designed for Data Center application for simultaneous 4K video encode/decode4K video streaming . The onboard Zynq supports integrated H.265 hardware encoders and decoders.
SE120, Xilinx Zynq Ultrascale+ MPSoC PCIe card with FMC site
Using Xilinx Zynq UltraScale+ MPSoC family, SE120 is a x8, Gen4 PCIe board. It can be assembled with the XCZU7EV-2FFVC1156E /XC ZU7EG/ XCZU11EG/ or ZU7CG. Depending on the choice of device it can be used for applications in HPC, digital communication, image processing and AR/VR. When using 7EV device the video encoder/decoder unit (VCU) can be used for video streaming applications.
Solar Express 120 (SE120), Xilinx Zynq Ultrascale+ based MPSoC PCIe card with FMC site

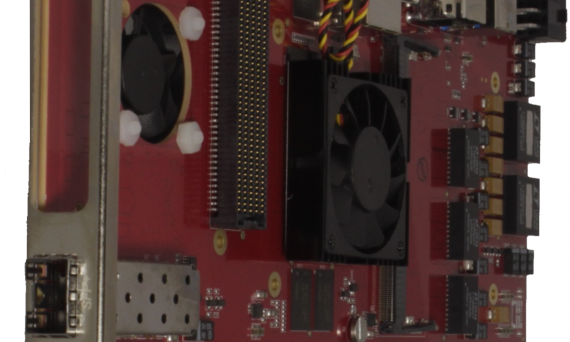

SE120 utilizes the Xilinx Zynq UltraScale+ MPSoC family in C1156 package. SE120 is a Gen4 x8 PCIe board. It can be assembled with the XCZU7EV-2FFVC1156E /XC ZU7EG/ XCZU11EG/ or ZU7CG. Depending on the choice of FPGA it can be used for applications in HPC, digital communication, image processing and AR/VR. By cascading multiple SE120s multi processing systems can be easily created.
